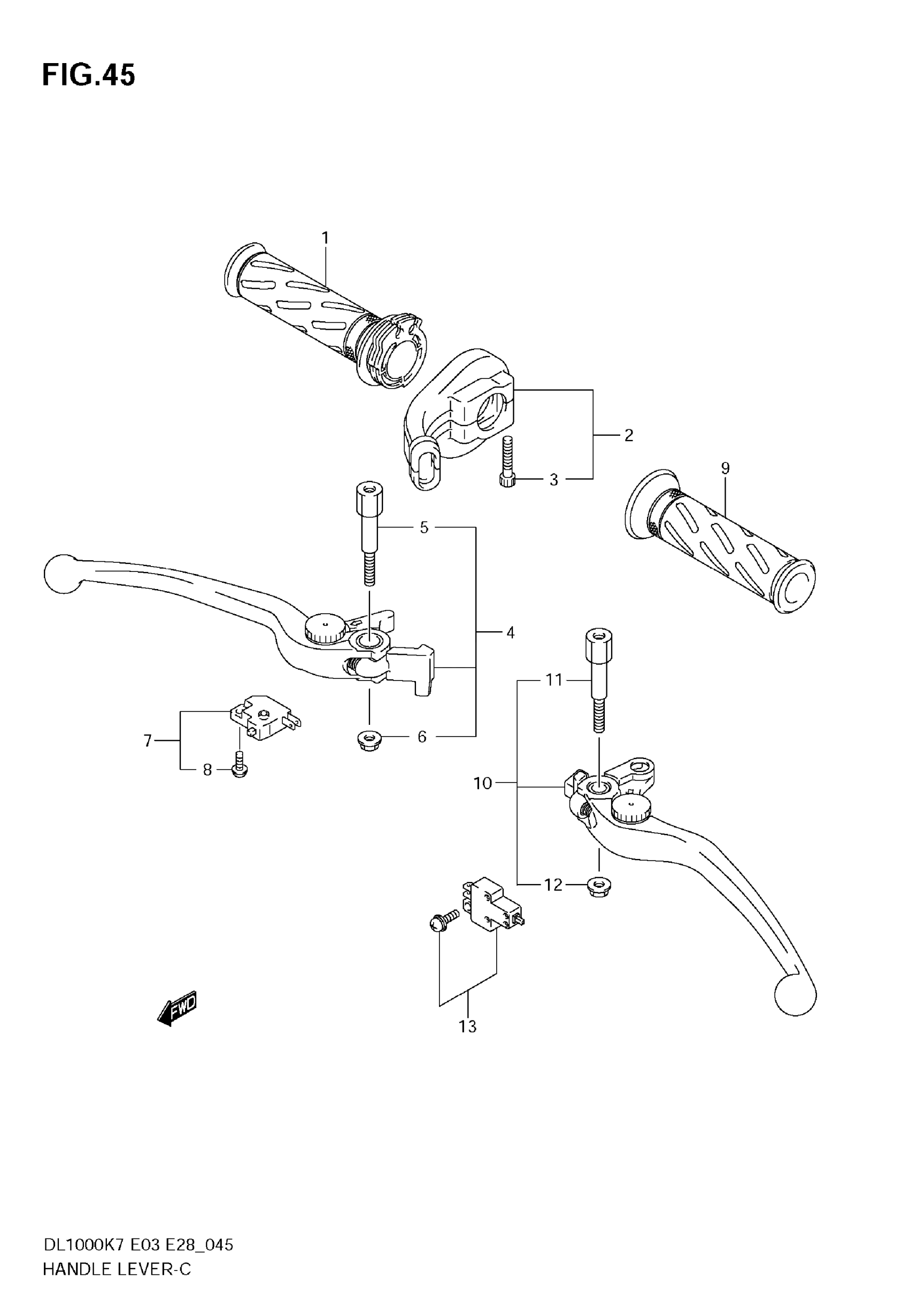

Suzuki DL1000 (2009) HANDLE LEVER Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-45D02.

57110-45D03

$26.02

2

CASE ASSY,THROT | Includes Item(s) 3 This part replaces 57100-42F00.

57100-42F01

$61.78

3

BOLT

07130-0525B

$2.70

4

LEVER ASSY, BRAKE | Includes Item(s) 5 - 6

57300-06G10

$91.63

5

BOLT

57431-06G00

$32.85

6

NUT

08319-2106A

$1.97

7

SWITCH ASSY,FR BRAKE | Includes Item(s) 8 This part replaces 57460-17C11.

57460-14J02

$36.79

8

SCREW

57465-17C00

$2.37

9

GRIP, LH (BLACK) This part replaces 57211-22D01.

57211-22D02-291

$13.93

10

LEVER ASSY, CLUTCH | Includes Item(s) 11 - 12

57500-06G11

$53.92

11

BOLT

57431-06G10

$33.47

12

NUT

08316-1006B

$2.57

13

SWITCH ASSY,CLUTCH

57560-02FA0

$22.55
