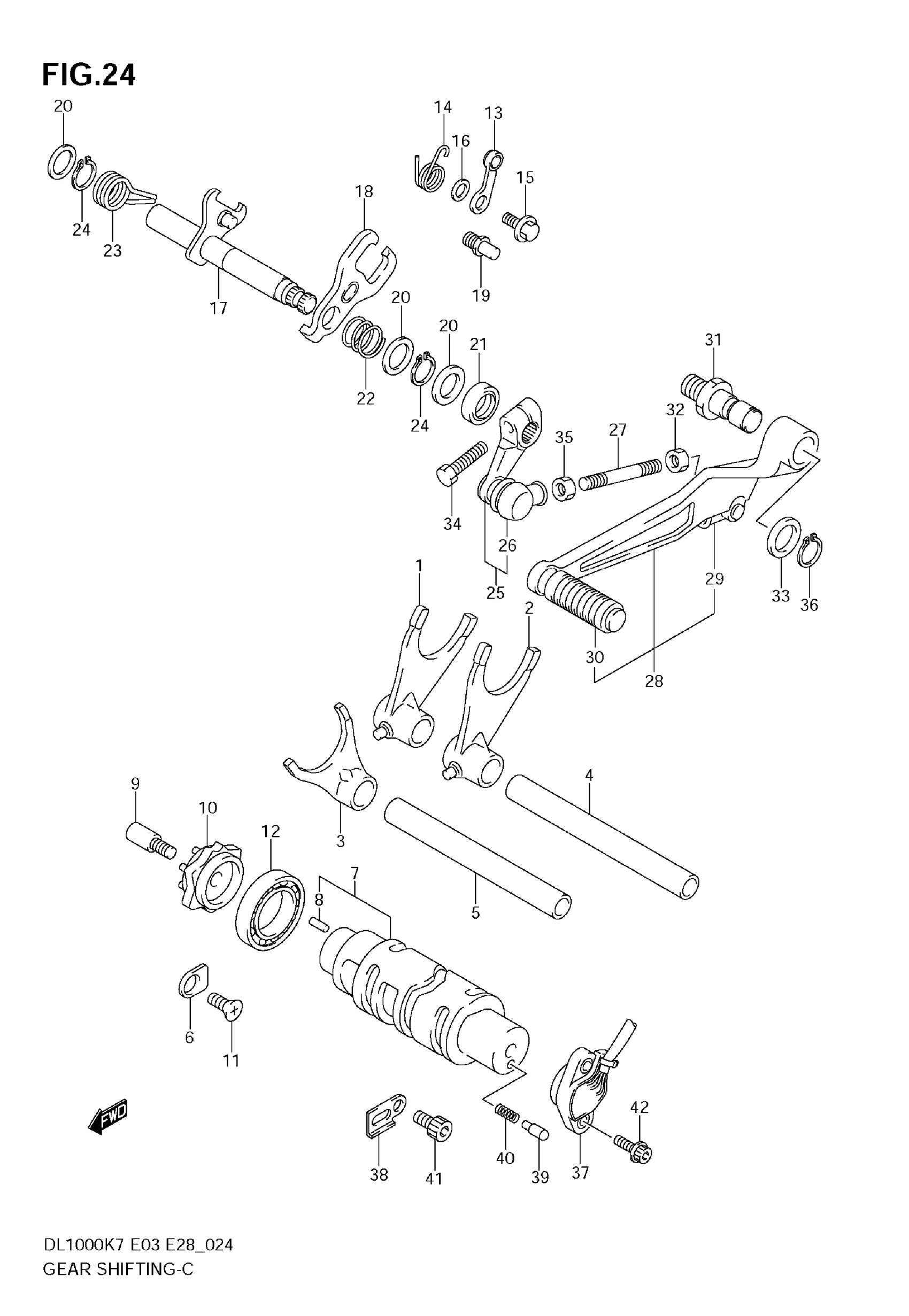

Suzuki DL1000 (2009) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT This part replaces 25211-17E01.

25211-17E02

$81.95

2

FORK, GEAR SHIFT NO.1

25211-35F00

$118.85

3

FORK, GEAR SHIFT NO.3

25231-35F00

$119.43

4

SHAFT, GEAR SHIFT FORK NO.2

25411-02F20

$22.07

5

SHAFT, GEAR SHIFT FORK NO.1

25411-02F20

$22.07

6

RETAINER, SHIFT CAM

24741-21A00

$2.80

7

CAM, GEAR SHIFT | Includes Item(s) 8

25310-02F10

Unavailable

8

PIN (4X13.8)

04221-04089

$1.15

9

STOPPER, SHIFT CAM

25312-12C00

$9.08

10

PLATE, GEAR SHIFT

25381-13E00

$63.22

11

SCREW, SHIFT CAM, 6X12

09125-06110

$2.21

12

BEARING

08113-69050

$33.78

13

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$20.35

14

SPRING, STOPPER ARM

25355-38F00

$5.52

15

BOLT (6X14.3)

09111-06041

$2.73

16

WASHER

08211-06141

$1.66

17

SHAFT,GEAR SHIFT

25510-06G10

$125.93

18

PLATE, GEAR SHIFT

25512-06G00

$46.57

19

STOPPER, GEAR SHIFT

25671-01011

$4.28

20

WASHER, GEAR SHIFT RH | 14X22X1.0

09181-14167

$2.64

21

SEAL, SHIFT SHAFT OIL | 14X22X6.0

09283-14006

$6.23

22

SPRING, GEAR SHIFT PLATE

09440-17009

$1.80

23

SPRING, SHIFT SHAFT

09444-20001

$4.97

24

CIRCLIP, GEAR SHIFT

08331-3114A

$1.97

25

ARM,GEAR SHIFT | Includes Item(s) 26 This part replaces 25520-06G00.

25520-06G01

$55.97

26

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.21

27

ROD, GEAR SHIFT LINK

25525-43510

$10.35

28

LEVER ASSY,GEAR | Includes Item(s) 29 - 30 This part replaces 25600-06G10.

25600-06G12

$136.70

29

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.21

30

RUBBER

25652-20C00

$5.21

31

SHAFT, GEAR SHIFT LEVER This part replaces 25617-03F00.

25617-03F10

$11.80

32

NUT

09140-06025

$1.89

33

WASHER (12.5X20X1)

09160-12011

$1.52

34

BOLT

01500-0620A

$1.82

35

.NUT

08310-00067

$1.91

36

CIRCLIP

08331-3112A

$1.82

37

BASE ASSY, GEAR SHIFT TERM

37730-06G00

$157.03

38

CLAMP, GEAR SHIFT

31497-45000

$2.17

39

CONTACT, GEAR SHIFT

09209-05011

$2.02

40

SPRING, GEAR SHIFT SW

09440-04010

$1.52

41

BOLT, CLAMP

07130-0510B

$2.74

42

BOLT, GEAR SHIFT SW

07120-0516A

$1.72
