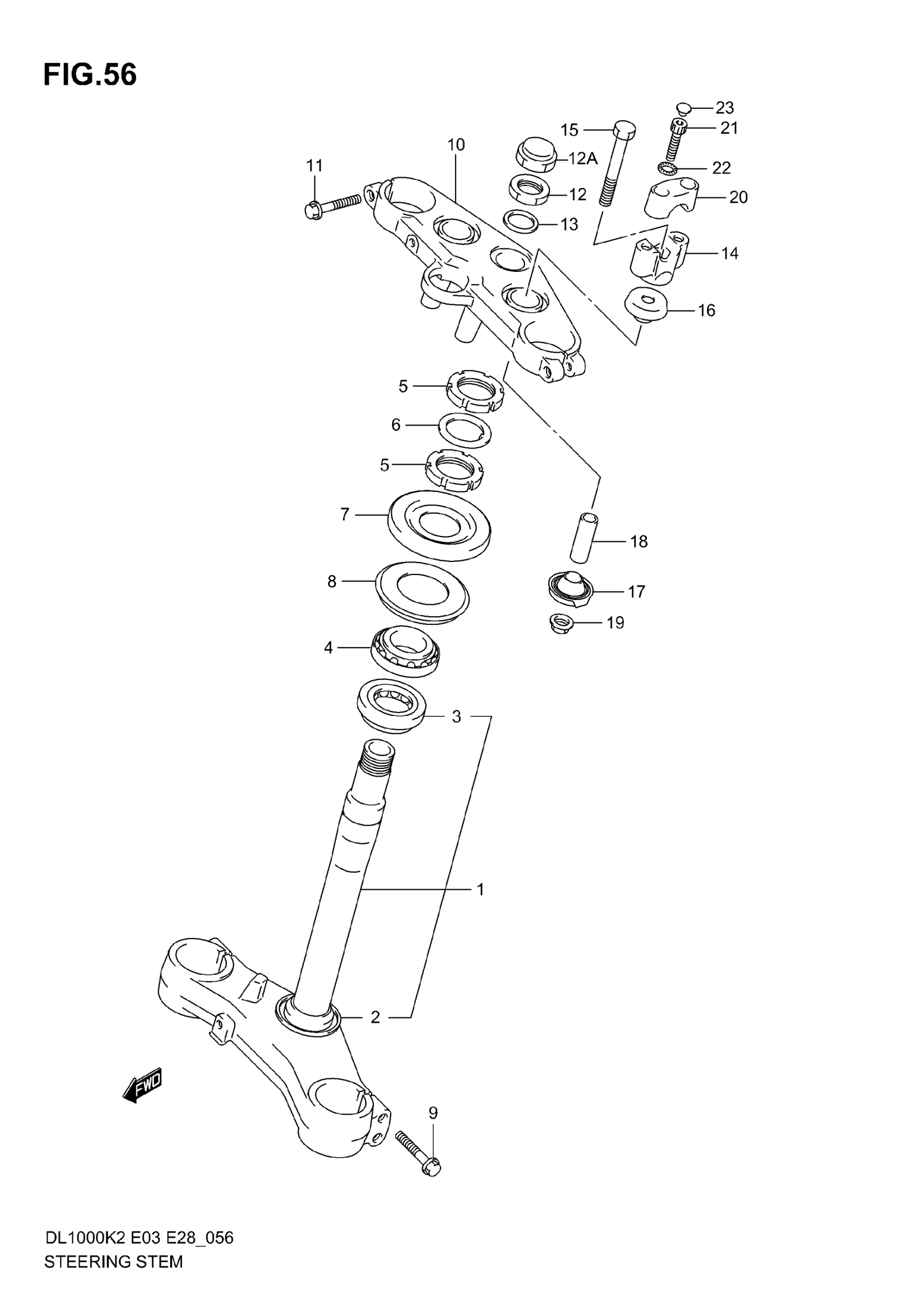

Suzuki DL1000 (2006) STEERING STEM Diagram

#

Description
Price

1

STEM, STEERING | Includes Item(s) 2 - 3

51410-06G00

Unavailable

2

SEAL, STEERING LOWER

51644-12C00

$9.04

3

BEARING (30X55X17)

09267-30010

$44.72

4

BEARING, UPPER (30X55X17)

09267-30010

$44.72

5

NUT

51631-33E00

$22.62

6

WASHER

51641-33E00

$5.93

7

COVER, STEERING UPPER

51643-24F10

$17.16

8

SEAL, STEERING UPPER

51644-12C00

$9.04

9

BOLT

51166-35F00

$7.17

10

HEAD, STEERING STEM

51311-06G00

Unavailable

11

BOLT

51166-35F00

$7.17

12

NUT | MODEL K2/K3/K4/K5

51353-06G00

Unavailable

12A

NUT | MODEL K6

51353-27G00

$38.16

13

WASHER

51354-06G00

$13.30

14

HOLDER, HANDLE LOWER

56221-27E00

Unavailable

15

BOLT

56321-27E00

$11.32

16

CUSHION,RUBBER This part replaces 56241-27E00.

56241-27E01

$38.25

17

RUBBER,LWR This part replaces 56260-42A00.

56260-42A01

$39.77

18

SPACER

56243-42A00

$9.07

19

NUT

08319-31107

$2.80

20

HOLDER, HANDLE UPPER

56211-32F00

Unavailable

21

BOLT

51321-06G00

$10.35

22

WASHER

09164-08015

$3.00

23

CAP

09250-06011

$2.62
