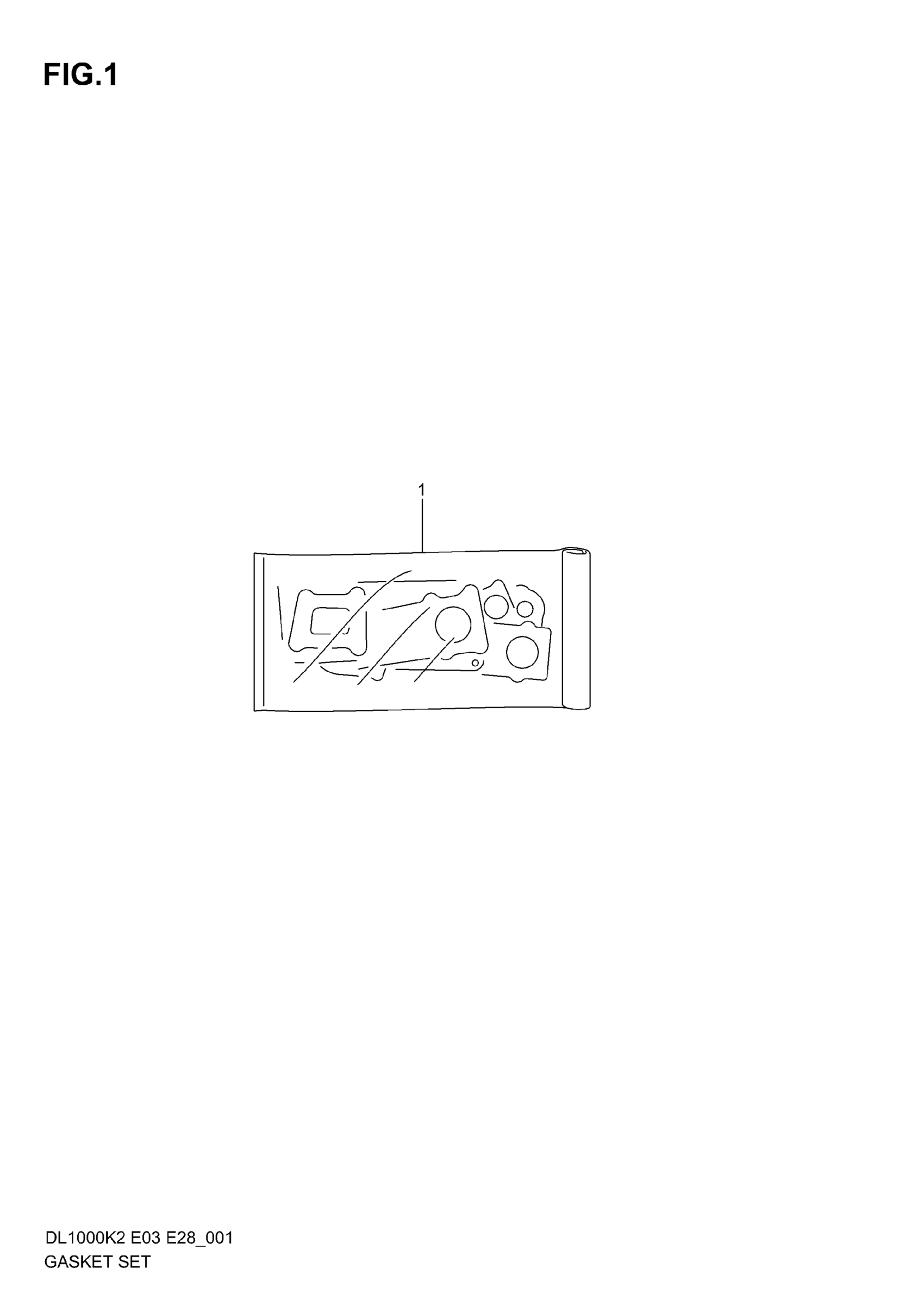

Suzuki DL1000 (2006) GASKET SET Diagram

#

Description
Price

1

GASKET SET | MODEL K2/K3 OPT This part replaces 11401-06810.

11401-06811

Unavailable

1

GASKET SET | MODEL K4/K5/K6 OPT; Includes Item(s) 2 - 20

11401-06840

$464.63

2

GASKET, CYLINDER HEAD | NOT SHOWN

11141-02F01

$40.94

3

GASKET, CYLINDER HEAD COVER NO.1 | NOT SHOWN

11173-02F00

$33.68

4

GASKET, CYLINDER HEAD COVER NO.2 | NOT SHOWN

11178-17E00

$6.08

5

GASKET, 2ND AIR PASSAGE | NOT SHOWN

11182-35F00

$3.01

6

GASKET, CYLINDER FRONT | NOT SHOWN

11241-02F01

$28.48

7

GASKET, CYLINDER REAR | NOT SHOWN

11242-02F01

$28.60

8

.GASKET, CLUTCH COVER | NOT SHOWN MODEL K2/K3 This part replaces 11482-06G00.

11482-06G10

$17.70

8

GASKET, CLUTCH COVER | NOT SHOWN MODEL K4/K5/K6

11482-06G10

$17.70

9

GASKET, MAGNETO COVER | NOT SHOWN

11483-02F10

$16.06

10

GASKET, GEAR SHIFT COVER | NOT SHOWN

11485-02F10

$4.70

11

.GASKET,TENSIONER ADJUSTER | NOT SHOWN

12837-19B10

$2.80

12

.GASKET,TENSIONER ADJUSTER | NOT SHOWN

12837-24A10

$2.97

13

GASKET, EXHAUST PIPE | NOT SHOWN

14181-31D00

$9.67

14

CONNECTOR, EXHAUST | NOT SHOWN

14771-02F00

$20.56

15

O-RING | NOT SHOWN

15201-35F00

$25.27

16

O RING | NOT SHOWN

17689-50F00

$2.63

17

GASKET (13.8X18.8X0.4) | NOT SHOWN MODEL K2/K3

09168-14002

$2.83

17

GASKET (13.8X18.8X0.4) | NOT SHOWN MODEL K4/K5/K6

09168-14002

$2.83

18

GASKET (14X20X1.5) | NOT SHOWN MODEL K2/K3

09168-14011

$1.68

18

.GASKET (14X20X1.5) | NOT SHOWN MODEL K4/K5/K6

09168-14015

$2.01

19

.O-RING (D:3.1,ID:32.7) | NOT SHOWN

09280-33004

$2.24

20

O RING (D:2.4,ID:55.6) | NOT SHOWN

09280-55005

$5.88
