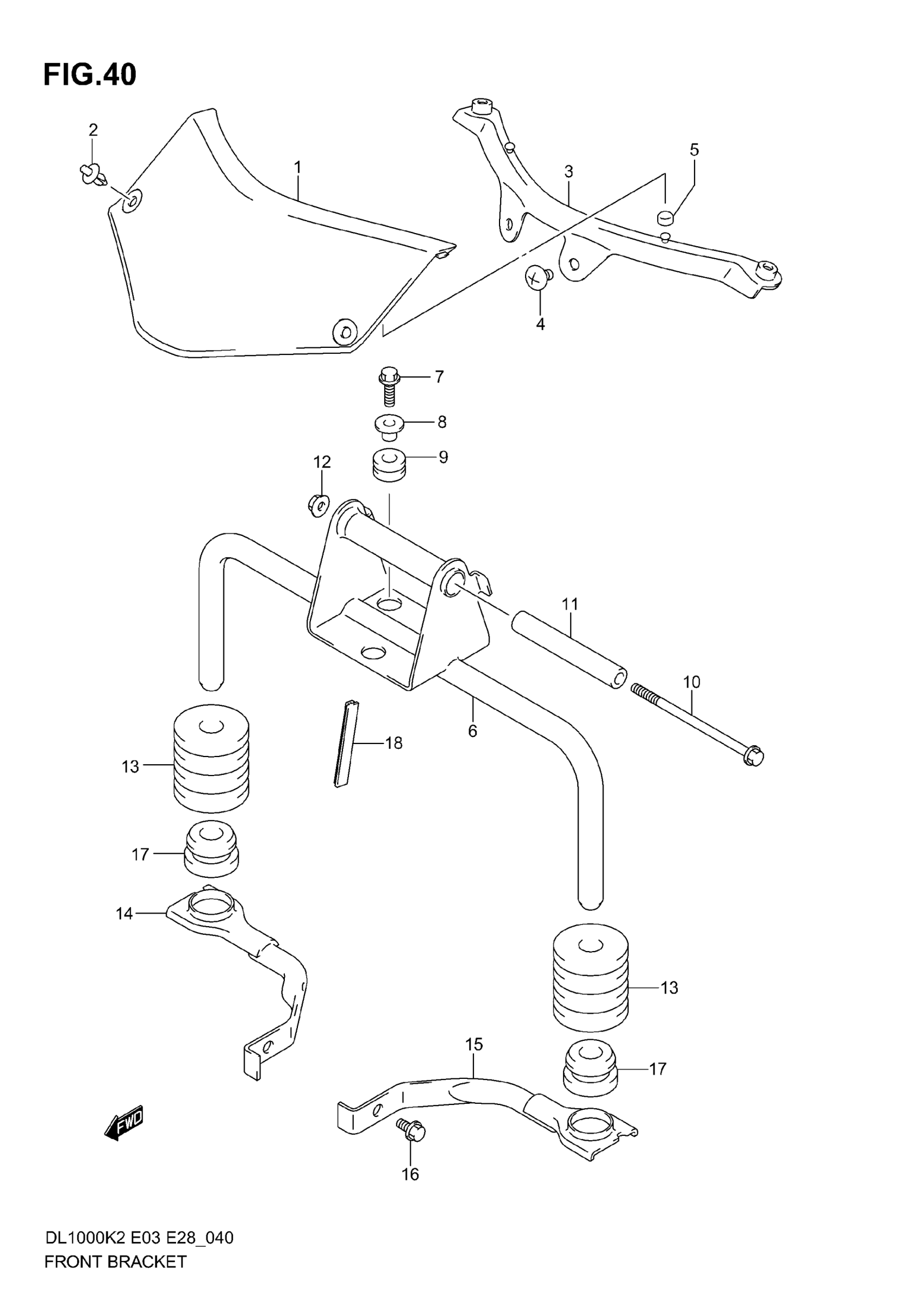

Suzuki DL1000 (2006) FRONT BRACKET Diagram

COVER, FRONT (BLACK) | MODEL K2/K3

44171-06G00-YZ5

Unavailable

COVER, FRONT (BLACK) | MODEL K4/K5/K6

44171-06G10-291

$37.12

CLIP (BLACK)

09409-06314-5PK

$2.80

BRACKET, COVER

44160-06G00

$54.60

SCREW This part replaces 02142-06123.

02142-0612A

$1.41

CUSHION, COVER

44164-06G00

$7.60

BRACKET, FRONT

44520-06G00

Unavailable

BOLT This part replaces 01550-06203.

01550-0620A

$2.01

SPACER

09169-06062

$2.57

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.14

BOLT This part replaces 01550-06953.

01550-0695B

$3.71

SPACER

44561-35F00

$13.65

NUT This part replaces 08319-31063.

08319-3106A

$2.09

CUSHION

44511-06G00

Unavailable

BRACKET,FR SIDE This part replaces 44560-06G00.

44560-06G01

$35.28

BRACKET, SIDE LH

44570-06G00

Unavailable

BOLT, CLAMP This part replaces 01550-06123.

01550-0612A

$2.01

CUSHION

09320-12054

Unavailable

MOLDING, COVER

68241-04X50-300

$7.20
