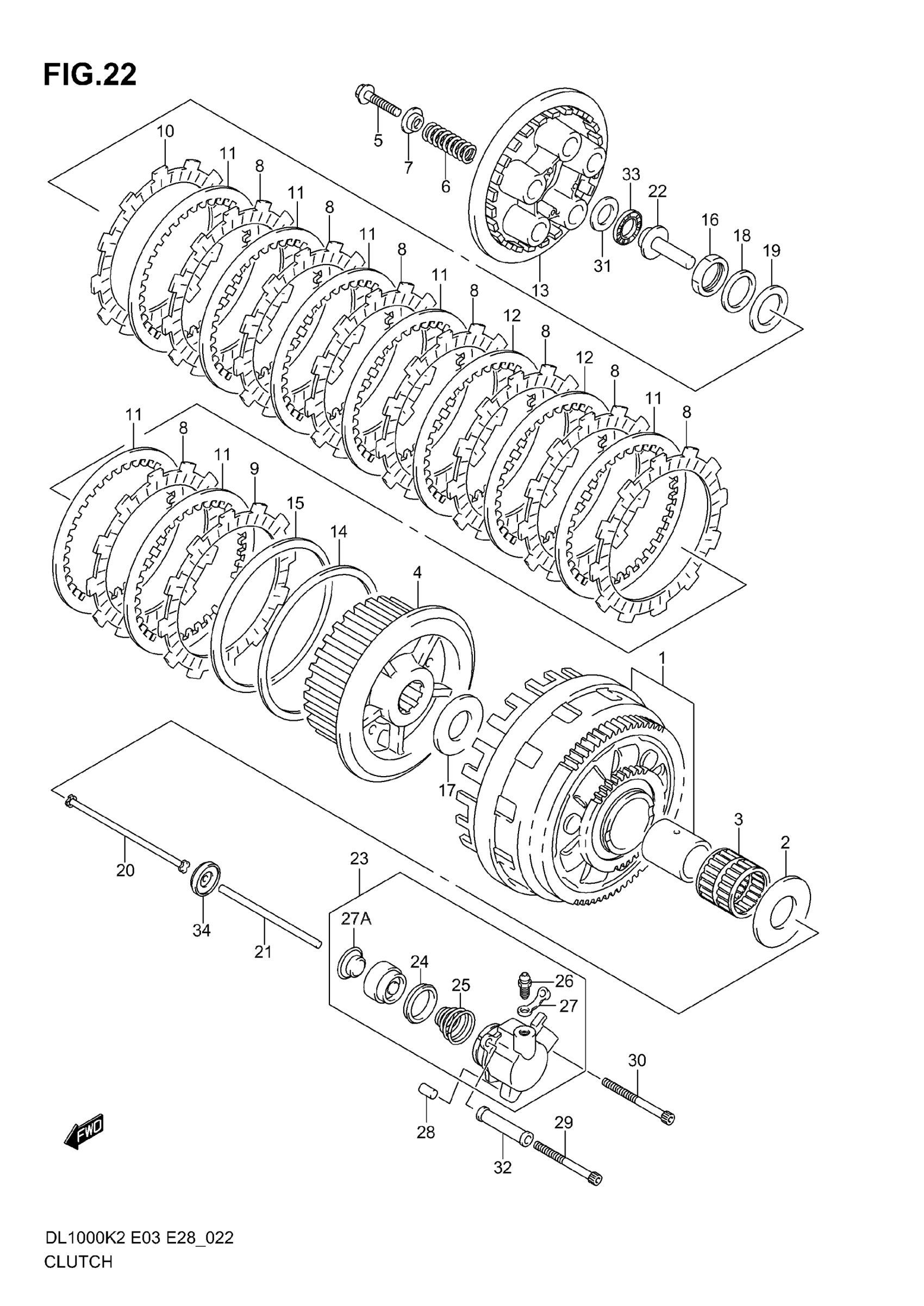

Suzuki DL1000 (2006) CLUTCH Diagram

GEAR ASSY, PRIMARY DRIVEN | MODEL K2/K3 NT:57 This part replaces 21200-06810.

21200-06811

$586.02

GEAR ASSY, PRIMARY DRIVEN | MODEL K4/K5/K6 NT:57

21200-06811

$586.02

WASHER (25X52X2.5)

09160-25074

$10.00

BEARING (35X40X39.8)

09263-35013

$33.05

HUB, CLUTCH SLEEVE

21410-06G00

$173.67

BOLT, SPRING SUPPORT

21412-06G00

$3.71

SPRING, CLUTCH | MODEL K2/K3 This part replaces 21413-06G00.

21413-06G10

$13.30

SPRING, CLUTCH | MODEL K4/K5/K6

21413-06G10

$13.30

WASHER

21414-29F00

$6.15

PLATE, CLUTCH DRIVE | 126X161X2.8 This part replaces 21441-24F20.

21441-24F00

$21.91

PLATE, CLUTCH DRIVE NO.2 | 135X161X3.7

21442-24F00

$23.09

PLATE, CLUTCH DRIVE NO.3 | 127X161X3.7

21441-24F10

$22.99

.PLATE,CLUTCH DRIVEN NO.1 (T: | T:2.0

21451-24F00

$11.09

PLATE, CLUTCH DRIVEN | T:2.3

21451-24F10

$11.09

DISK, CLUTCH PRESSURE

21462-06G00

$76.68

SEAT, WAVE WASHER

21471-06G00

$20.33

WASHER,CLUTCH PLATE WAVE

21472-06G00

$21.28

NUT, CLUTCH SLEEVE HUB

09159-24010

$12.27

.WASHER (25X50X2.5) | 25X50X2.5

09160-25056

$10.94

WASHER, CLUTCH SLEEVE | 24.2X35X2

09164-24006

$3.52

WASHER, SLEEVE HUB NUT | 25X38X1.0

09181-25223

$3.00

ROD, CLUTCH PUSH RH

23110-27A00

$20.75

ROD, CLUTCH PUSH LH

23111-26D00

$15.18

PIECE, CLUTCH PUSH

23121-31E00

$23.54

CYLINDER,CLUTCH RELEASE | Includes Item(s) 24 - 27A This part replaces 23160-06G01.

23160-06G21

$101.62

CUP

23163-06B00

$6.91

SPRING

23164-05A00

$4.15

BLEEDER

59121-01A00

$8.35

CAP, BLEEDER

59122-01A00

$4.15

COVER, DUST

23166-02F20

$12.18

PIN, CL RLSE CYL

04221-08149

$2.04

BOLT This part replaces 07130-06653.

07130-0665B

$3.59

BOLT This part replaces 07130-06703.

07130-0670B

$3.64

WASHER, CLUTCH PUSH | 15.5X28X1

09160-15045

$3.62

SPACER, CL RELEASE

23171-06G00

$7.99

BEARING, CLUTCH PUSH | 15X28X2

09263-15003

$7.70

SEAL, CLUTCH PUSH (6X34X10.5)

09283-06008

$15.62
