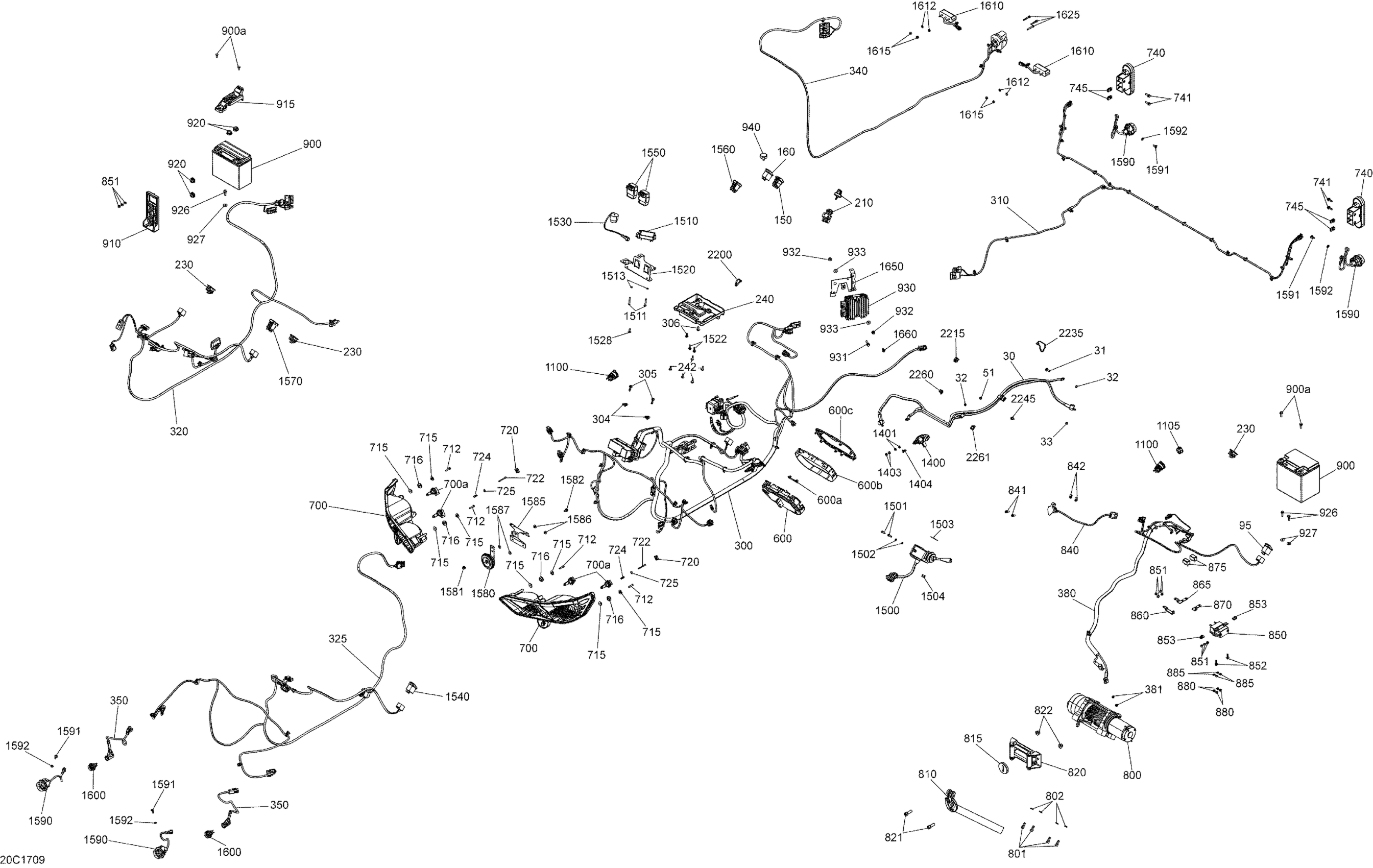

Can-Am Defender T, 2017 Electrical System - All Models Diagram

#

Description
Price

30

Negative Cable

710005512

$41.76

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

32

External Serrated Lock Washer 6 mm

234461608

$1.06

33

Elastic Stop Nut M6

232561434

$1.78

51

Elastic Stop Nut M6

232561434

$1.78

95

Switch Winch

710002052

$28.18

150

Switch 2X4

710005489

$29.82

160

Differential Lock Switch

710005470

$42.51

210

Inter Allumage *Ignition

710007870

$51.46

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

230

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$7.60

240

Housing Support

710004741

$6.88

242

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

300

Main Harness Ass'y | Non Max Version

710005530

$827.58

304

Panel Nut M6 X 1.0

250100198

$1.99

305

Hex. Flange Screw M6 X 20

207662044

$1.91

306

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

310

Rear Harness

710005544

$205.94

320

Wiring Harness

710006158

$205.94

325

Flasher Harness

710005546

$211.91

340

Trailer Harness

710006034

$202.96

350

Position Light Harness

710005676

$12.61

380

Winch Harness | Winch Equipped Model

710004465

$101.46

381

Elastic Stop Nut M6

232561434

$1.78

600 >600c

Speedometer Ass'y | Package XT, Cab

710005135

$394.00

600a

Speedometer Button | XTP

415129355

$13.52

600b

Lens | XTP

415129349

$22.36

600c

Gauge Ring

415129348

$11.36

700 > 700a

LH Headlamp | Includes 700 to 700a

710008313

$190.27

700 > 700a

RH Beam Ass'y

710005730

$190.27

700a

Halogen Bulb H8 12V 35W

219800149

$38.03

712

Hex. Flange Screw K50 X 2.24 X 25

241152540

$4.15

715

Shoulder Bushing

710004749

$2.69

716

Grommet

709000582

$4.25

720

Handle

572106600

$9.03

722

Hex. Screw K40 X 45

250000718

$2.00

724

Spring

517168600

$6.70

725

Flat Washer 4 mm, Stainless

234042600

$1.06

740

Tail Light

710004257

$85.04

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.00

745

Panel Nut M6 X 1.0

250100198

$1.99

800

Electric Winch | Includes 800 to 800a

710006993

$229.99

801

Socket Head Screw M8 X 25

205082544

$1.06

802

Lock Washer 8 mm

234181401

$0.87

810

Winch Hook Kit

705014949

$23.10

815

Stopper

710007028

$9.88

820

Fairlead Roller

710007082

$55.19

821

Socket Screw M10 x 30 | XT

205003044

$3.00

822

Hex. Flange Elastic Nut M10

233201414

$1.45

840

Remote Control & Connector_Winch Kit | Winch Equipped Model

715006504

$24.60

841

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

842

Panel Nut M5 X 0.8

250000958

$4.00

850

Solenoid

710006991

$57.43

851

Elastic Stop Nut M6, Brass

232561200

$4.03

851

Elastic Stop Nut M6, Brass

232561200

$4.03

852

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$4.73

853

Panel Nut M5 X 0.8

250000958

$4.00

860

Power Bar

710004772

$10.97

865

Power Bar

710004872

$10.97

870

Power Bar

710004873

$10.97

875

Circuit Breaker 50 Amp

710007039

$17.88

880

Hex. Flange Nut M5

250100071

$2.03

885

Lock Washer Helical M6

234161601

$1.06

900>900a

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

900>900a

Battery | Includes 900 to 900a

515176151

$199.45

900a

Battery Bolt Kit

250000282

$3.39

900a

Battery Bolt Kit

515176081

$5.85

910

Fixation Plate

710004788

$9.48

915

Fixation Plate

710004789

$6.72

920

Stopper Rubber

705014429

$6.09

926

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

926

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.00

927

Flat Washer 6 mm

234062410

$0.73

927

Flat Washer 6 mm

234062410

$0.73

930

Voltage Regulator | XT, XTP, LTD

710001191

$180.49

931

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

932

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

933

Flat Washer 6 mm

234062410

$0.73

940

Rubber Stopper

708001827

$6.19

1100

DC Outlet

710001248

$35.79

1100

DC Outlet

710001248

$35.79

1105

Cap

710004993

$6.30

1400

Starter Relay

278003012

$40.27

1401

Lock Washer Helical M6

234161601

$1.06

1403

Hex. Nut M6

232061600

$1.04

1404

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

1500

Turn Signal | Europe

710001721

$187.28

1501

Hex. Forming Screw M5 X 16

210251650

$1.06

1502

Lock Washer 5 mm | Europe

234151401

$0.52

1503

Flasher Decal | Europe

704902614

$16.39

1504

Clip

414227300

$1.40

1510

MODULE - Call your local BRP dealership

710005436

Unavailable

1511

Hex. Screw M5 X 35

207053544

$1.06

1513

Flat Washer M5

234051410

$0.51

1520

SKM Holder

710005475

$22.36

1522

Hex.Flange Screw M5 X 20

207652044

$1.79

1528

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

1530

Buzzer Ass'y

204470913

$82.81

1540

Switch Hazard | Europe

710002076

$17.88

1550

Flasher Unit

710003239

$73.10

1560

Brake Fluid Indicator

710005478

$17.88

1570

Trailer Flasher Indicator

710005479

$17.88

1580

Horn

710004791

$36.54

1581

Threaded Insert M6 X 1.0

250100242

Unavailable

1582

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.79

1585

Horn Bracket

710005495

$22.36

1586

Pop Rivet 3/16"

293150103

$0.52

1587

Washer M5

250200025

$0.70

1590

Flasher | Europe

710002964

$34.30

1591

Torx Truss Screw M6 X 16

250000721

$1.60

1592

Flat Washer 6 mm

234061410

$1.19

1600

Day Light | Europe

710001726

$32.81

1610

License Light

710002055

$59.67

1612

Lock Washer Helical M6

234161601

$1.06

1615

Hex. Nut M6

232061600

$1.04

1625

Phillips Screw M5 X 35

208653560

$2.12

1650

Housing Holder

710005620

$18.63

1660

Hex. Flange Screw M5 X 16

207651646

$2.00

2200

Tie-Rap 180 mm

414115200

$0.10

2215

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$5.94

2235

Tie Wrap 368 mm

293750008

$0.97

2245

Hex. Flange Screw M6 X 16

210261650

$1.40

2260

Dart Tie Rap 200MM

710003168

$6.57

2261

Christmas Tree Tie-Rap

710005237

$6.10
