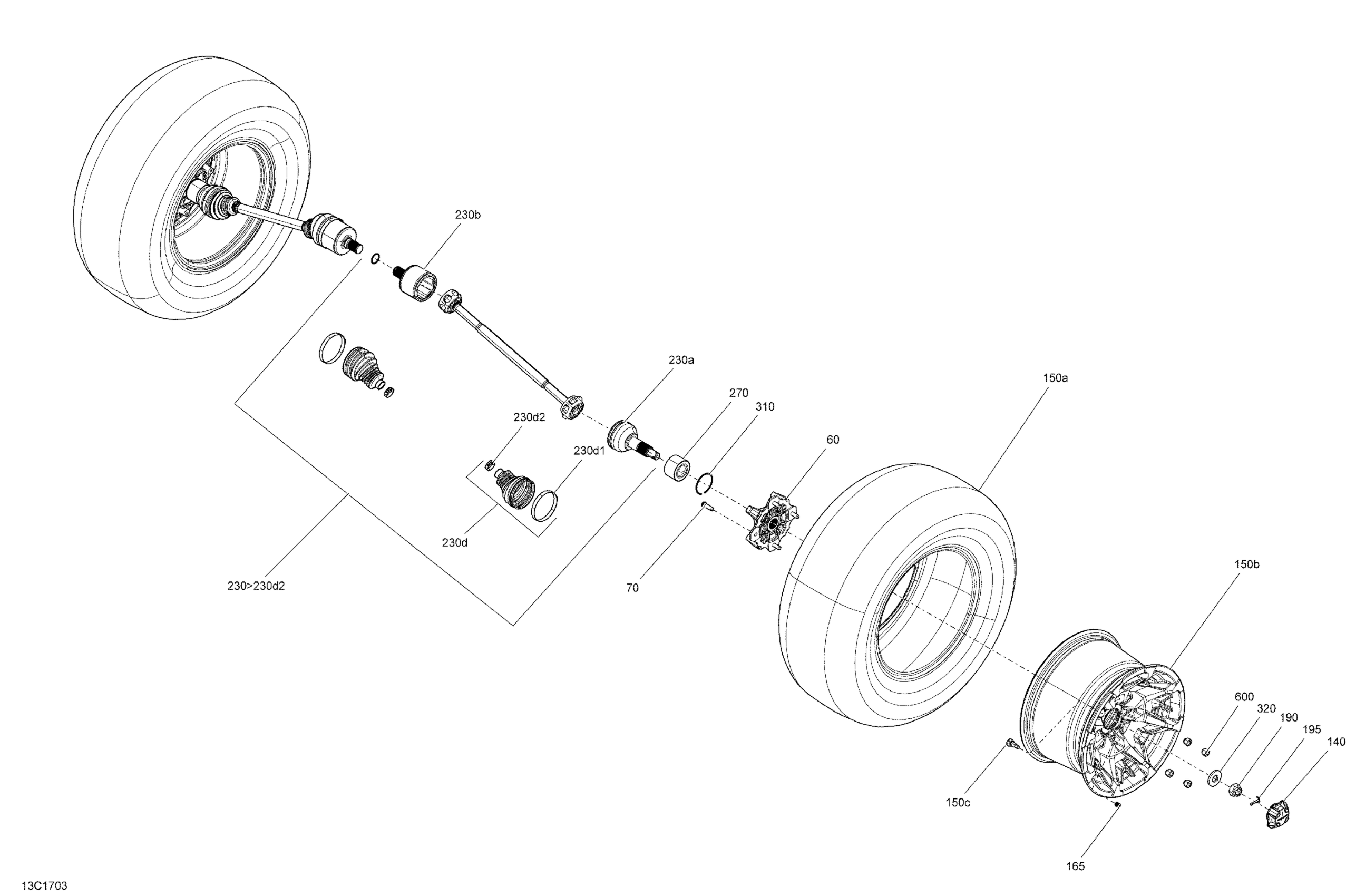

Can-Am Defender T, 2017 Drive System, Rear - All Models Diagram

Description

Price

Wheel Hub

705502338

$115.35

Wheel Stud M10 X 1.25 | 2X4

250300055

$3.28

140

Wheel Cap | Package XMR 850, XMR 1000

705401541

$11.06

150a

Rear Tire

705502576

$286.12

150b

Rear Rim | Package-XT Int.Brush Aluminum

705502637

$199.97

150c

Rim Valve With Cap

705400193

$6.69

165

Valve Cap

293000110

$1.18

600

Black, Wheel Nut M10 X 1.25

250100184

$2.48

190

Castle Nut M20

250100193

$6.66

195

Cotter Pin

250400071

$1.74

230>230e

Rear - Premium CV Axle | Includes 230 to 230f

705502451

$233.82

230a

JOINT_CV EXT - Call your local BRP dealership

715900429

Unavailable

230b

Plunging Joint

715900444

$267.66

230c

Circlip

705501781

$5.38

230d

Boot Kit

705501864

$41.51

230d1

Oetiker Clamp, 82.1 mm

715900241

$7.84

230d2

Oetiker Clamp, 27.3 mm

715900242

$7.84

230e

O-Ring

715900579

$2.31

270

Ball Bearing

293350150

$52.99

310

Circlip

293370019

$4.98

320

Washer M20

250200147

$12.91
