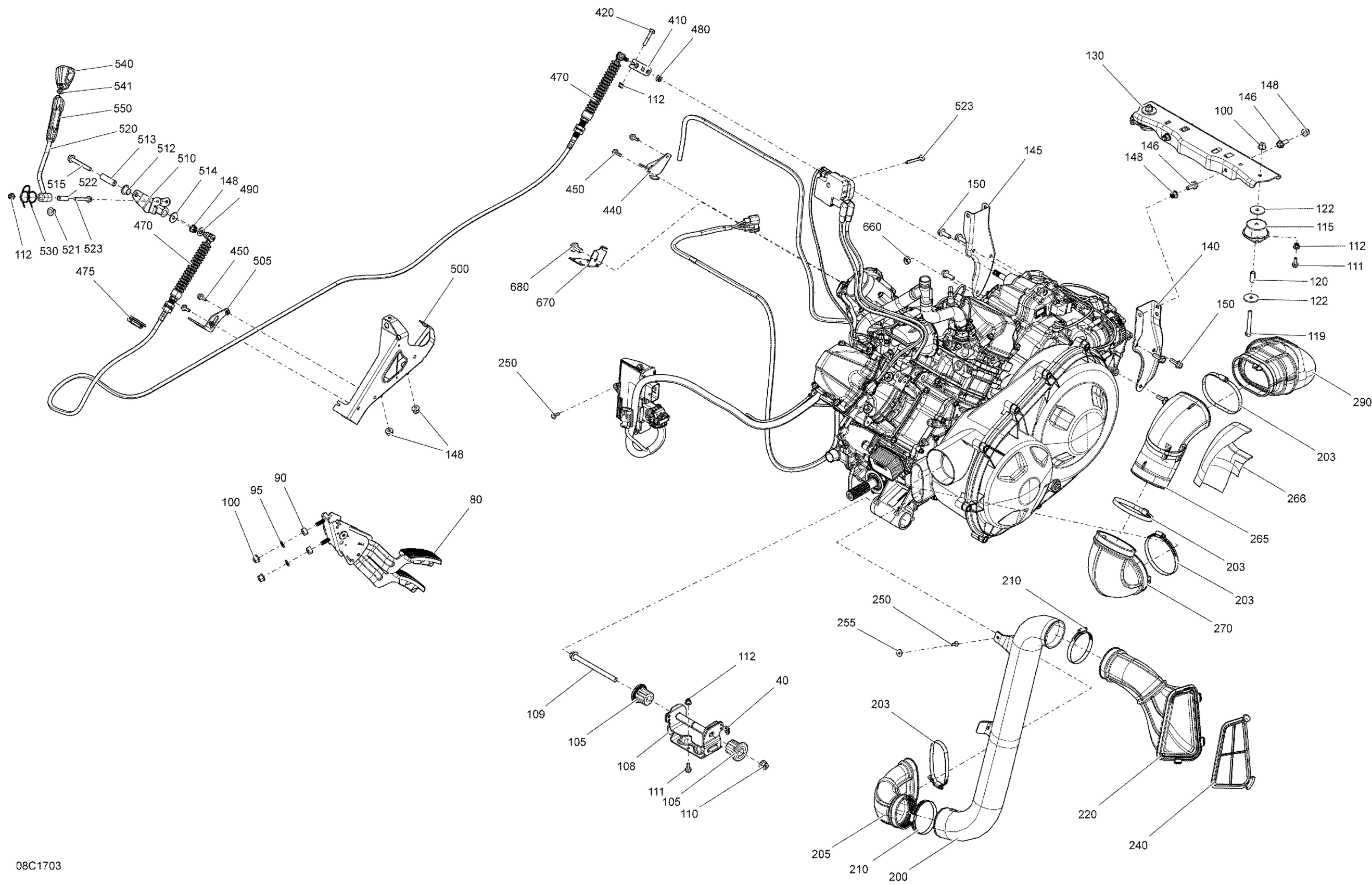

Can-Am Defender T, 2017 Engine Diagram

#

Description
Price

40

Pop Rivet 3/16"

390402200

$0.30

80

Accelerator Pedal

707001599

$265.64

90

Bushing

707000848

$1.04

95

Push Nut

250100031

$6.66

100

Hex. Flange Nut M8

233081416

$1.87

105

Anti Vibration Buffer

707001170

$19.37

108

Vibration Damper | Includes 108 to 108d

707003061

$138.03

109

Hex. Flange Screw M10 X 135

230603546

$6.99

110

Hex. Flange Elastic Nut M10

233201436

$2.00

111

Hex. Flange Screw M6 X 16

207661644

$0.70

112

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

115

Rubber Mount

707001867

$52.21

116

Hex. Flange Screw M6 X 16

207661644

$0.70

117

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

119

Hex. screw M8 x 60

207186044

$0.81

120

Bushing

707001908

$4.09

122

Flat Washer M8

250200158

$2.00

125

Hex. Flange Nut M8

233081416

$1.87

130

Rear Link Bracket

707002290

$27.58

140

LH Rear Engine Support

707001610

$11.49

145

RH Rear Engine Support

707003340

$15.64

146

Hex. Flange Screw M8 X 20

207682044

$1.06

148

Hex. Flange Elastic Nut M8

233281414

$1.31

150

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.63

200

Front Duct

706600157

$55.19

203

Norma Gear Clamp

514052983

$14.90

205

Flexible Adaptor

706600083

$17.88

210

Norma Clamp

293650091

$10.54

220

Flexible Adaptor

706600084

$39.52

230

Norma Clamp

293650091

$10.54

240

CVT Filter

706600156

$17.88

250

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

255

Washer M5

250200025

$0.70

265

Outlet Front Duct

706600065

$29.82

266

Heat Shield

706600133

$2.85

270

Flexible Adaptor

706600108

$22.36

275

Norma Gear Clamp

514052983

$14.90

290

Air Deflector

706600125

$24.60

410

Lever

707000911

$18.63

420

Hex. Flange Screw M6 X 35

207663544

$0.85

430

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

440

Cable Support

707001614

$14.43

450

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

470

Shifting Cable

707002227

$64.15

475

Grommet

293720109

$7.81

480

Hex. Elastic Stop Nut M8

232581414

$0.54

490

Flat Washer 10 mm

234001410

$1.12

500

Shifter Braket

707002003

$35.79

501

Flat Washer M8

250200158

$2.00

502

Hex. Flange Elastic Nut M8

233281414

$1.31

505

Cable Support

707002038

$14.43

506

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

510

Lower Shifter Arm

707002268

$13.99

512

Venturi Bushing

293900001

$7.04

513

Bushing

707003445

$10.30

514

Flat Washer 8 mm

234082410

$1.27

515

Hex. Flange Screw M8 x 60

207686044

$2.94

516

Hex. Flange Elastic Nut M8

233281414

$1.31

520

Welded Arm

707002230

$22.36

521

Flanged Bushing

707000869

$2.13

522

Bushing

707001376

$4.09

523

Hex. Flange Screw M6 X 50

207665044

$3.88

524

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

530

Lever Arm Spring

707000750

$2.68

540

Lever Trim

707003211

$7.72

541

Hex. Jam Nut M8

232180491

$7.09

550

Shifting Arm Cover

707001899

$11.33

660

Oetiker Clamp

293650042

$2.82

670

Cable Support

710004561

$10.30

680

Hex Flange Screw M10 X 20

207502044

$4.15

1410

Hex. Plastic Screw M4.8 X 16

243141630

$2.00

1420

Hex. Flange Screw M6 X 50

207665044

$3.88
