Partiron

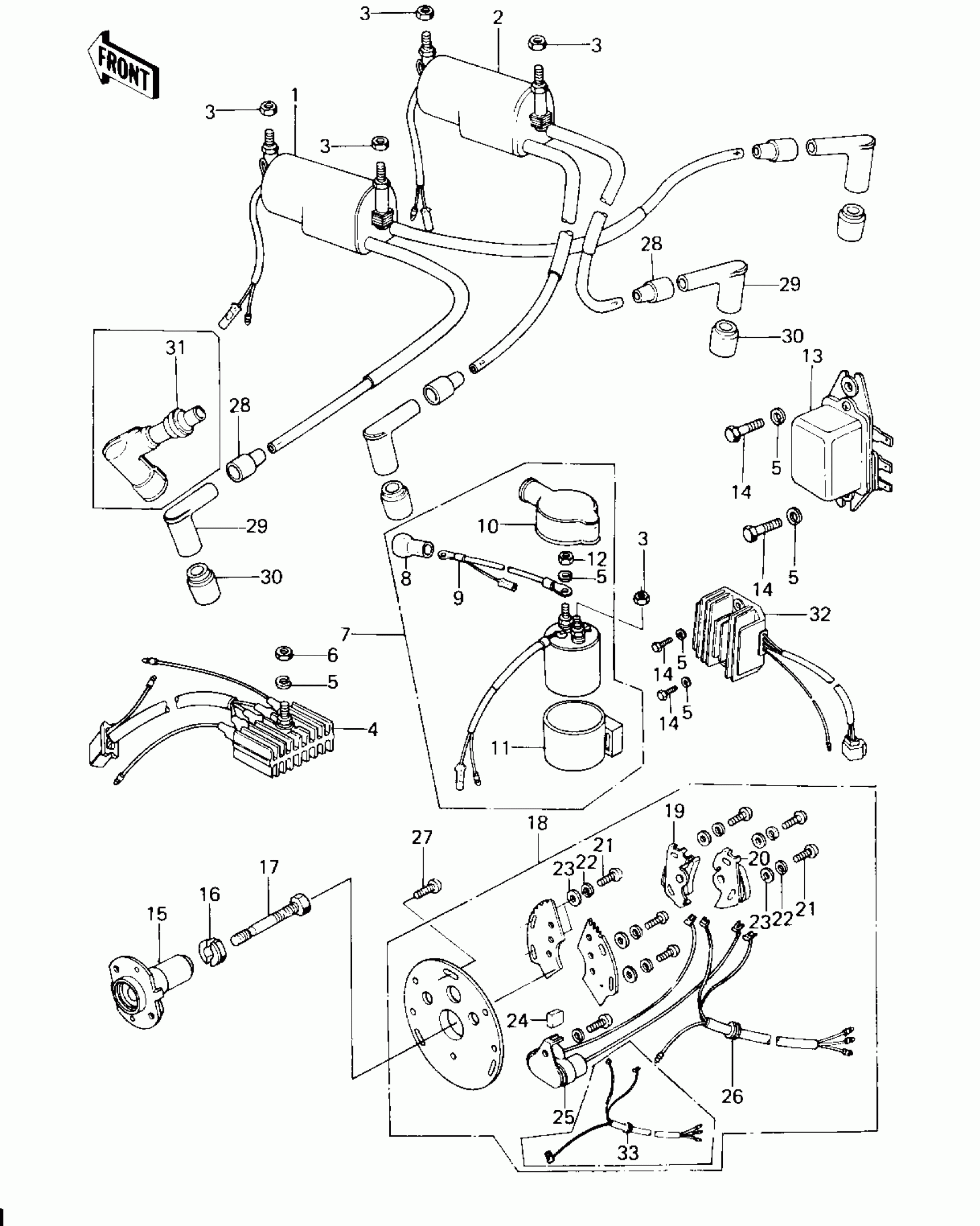

Kawasaki Custom IGNITION/REGULATOR/RECTIFIER Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

21121-088

Unavailable

1

COIL,IGNITION,#1.4

21121-1001

Unavailable

2

UNAVAILABLE IN PRICE BOOK

21121-089

$308.83

2

COIL,IGNITION,#2.3

21121-1002

$308.83

3

NUT,LOCK 6MM

92017-014

$5.74

4

UNAVAILABLE IN PRICE BOOK

21061-031

$318.85

5

WASHER SPRING 6MM

461F0600

Unavailable

6

NUT 6MM

311B0600

Unavailable

7

UNAVAILABLE IN PRICE BOOK

21164-007

Unavailable

8

GROMMET,MAGNETIC SWITCH

21017-023

$16.98

9

UNAVAILABLE IN PRICE BOOK

21095-009

$66.85

10

CAP,MAGNETIC SWITCH

21141-004

Unavailable

11

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

12

NUT 6MM

312B0600

Unavailable

13

UNAVAILABLE IN PRICE BOOK

21066-018

Unavailable

14

BOLT-UPSET

112G0618

Unavailable

14

BOLT-UPSET,6X16

112G0616

Unavailable

15

ADVANCER,AUTMATC TMNG

21148-011

Unavailable

16

WASHER, SPARK ADVANCER

92022-224

$0.59

17

BOLT,8X63

92001-1397

$3.91

18

BREAKER, ASSY, CONTACT

21135-012

$99.80

18

BREAKER, ASSY, CONTACT

21008-1007

$99.80

19

BREAKER,CONTACT

21008-028

$69.37

20

BREAKER,CONTACT

21008-027

$73.02

21

SCREW PAN HEAD 4X8

220B0408

Unavailable

22

WASHER SPRING 4MM

461F0400

Unavailable

23

WASHER PLAIN 4MM

410B0400

Unavailable

24

BRUSH,OIL

21019-005

Unavailable

25

CONDENSER

21013-037

Unavailable

26

WIRING HARNESS, BREAKER

21029-038

$42.05

27

SCREW-PAN-CROS

220B0512

$0.47

28

GROMMET,HIGH TENSION

21132-005

$3.25

29

CAP-SPARK PLUG

21130-024

Unavailable

30

GROMMET,PLUG CAP

21131-004

$10.81

31

CAP-ASSY-PLUG

21160-005

$52.69

32

REGULATOR

21066-029

$508.39
