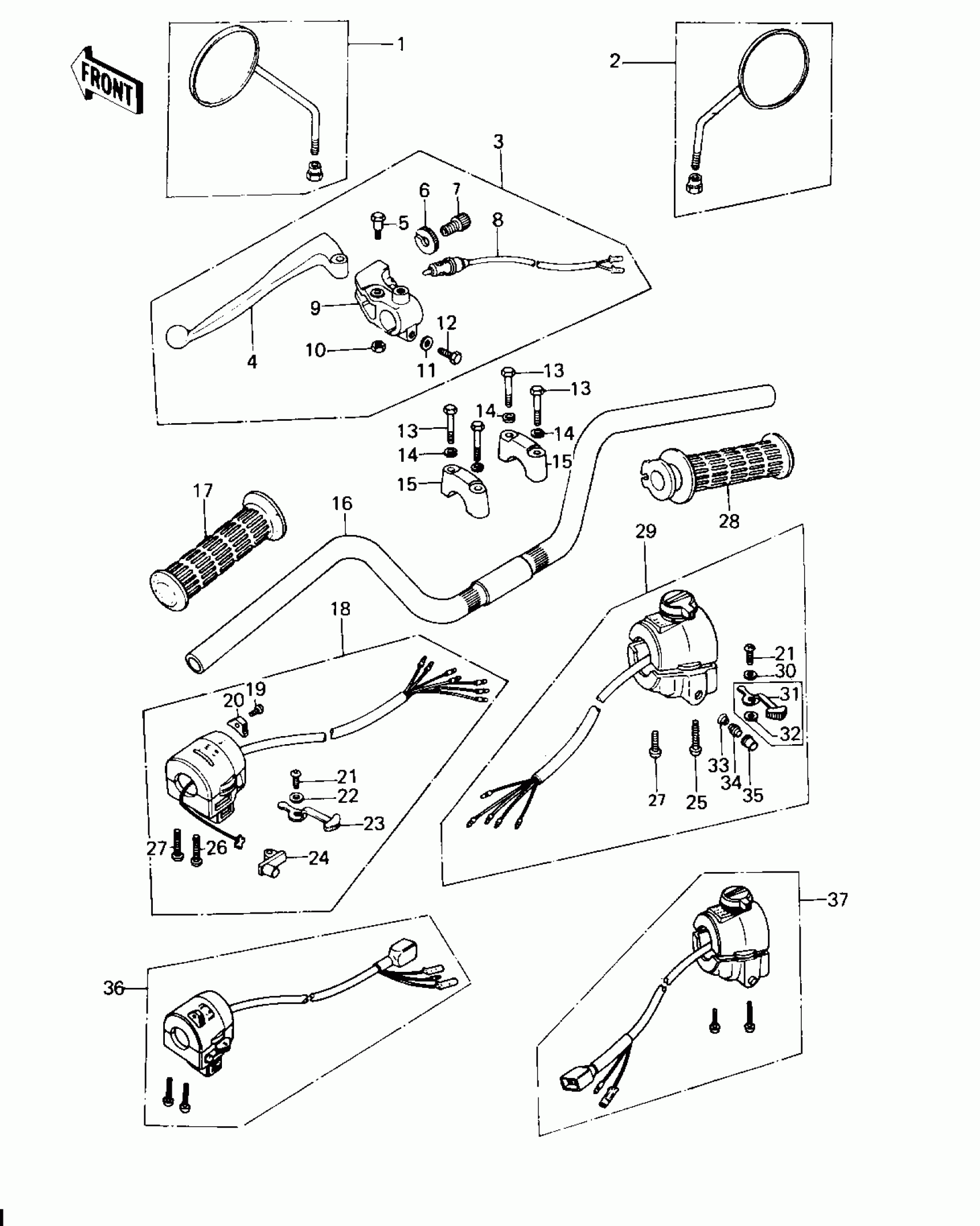

Kawasaki Custom HANDLEBAR Diagram

#

Description
Price

1

REAR VIEW MIRROR,L.H

56003-019

Unavailable

2

REAR VIEW MIRROR,R.H

56002-029

$77.17

3

LEVER ASSY,CLUTCH

46076-054

$104.73

4

LEVER-GRIP,CLUTCH

46092-023

$36.65

5

BOLT,HEX HEAD

92007-047

Unavailable

6

NUT,CABLE ADUST NUT

46056-007

Unavailable

7

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

8

SWITCH,CLUTCH

27043-002

Unavailable

9

HOLDER,CLUTCH LEVER

46094-019

$72.21

10

NUT,LOCK 6MM

92017-014

$5.74

11

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

12

BOLT HEX HEAD 6X25

110N0625

Unavailable

13

BOLT 8X38

92001-1405

$12.52

14

WASHER SPRING 8MM

461F0800

Unavailable

15

HOLDER-HANDLE,UPP

46012-008

$33.69

16

HANDLEBAR

46003-038

Unavailable

16

HANDLEBAR

46003-1026

$127.51

17

RUBBER,L.H GRIP

46075-028

$40.75

18

CASE ASSY,L.H

46091-055

Unavailable

19

SCREW CNTSNK HD 3X8

221B0308A

Unavailable

20

KNOB,LIGHTING SW L.H

46044-013

$11.83

21

SCREW-PAN-CROS,3X6

220B0306

Unavailable

22

WASHER

92095-010

Unavailable

23

KNOB,LIGHING SWITCH

46043-006

Unavailable

24

BUTTON,HORN SWITCH

46028-007

Unavailable

25

UNAVAILABLE IN PRICE BOOK

220B0640A

Unavailable

26

UNAVAILABLE IN PRICE BOOK

220B0536A

Unavailable

27

UNAVAILABLE IN PRICE BOOK

220B0630A

Unavailable

28

GRIP ASSY,THROTTLE

46019-038

Unavailable

29

HOUSING ASSY,R.H. CO

46091-1031

Unavailable

30

WASHER-PLAIN-SMALL,3MM

410B0300

Unavailable

31

KNOB,LIGHTING SW R.H

46043-004

Unavailable

32

WASHER,PLAIN

92095-014

$3.31

33

SWITCH,PUSH BUTTON

27010-1009

$7.01

34

SWITCH,PUSH BUTTON

27010-1009

$7.01

35

SWITCH,PUSH BUTTON

27010-1009

$7.01

36

HOUSING ASSY,CONT,L.H

46091-1048

Unavailable

37

HOUSING ASSY,CONT,R.H

46091-1047

$141.82
