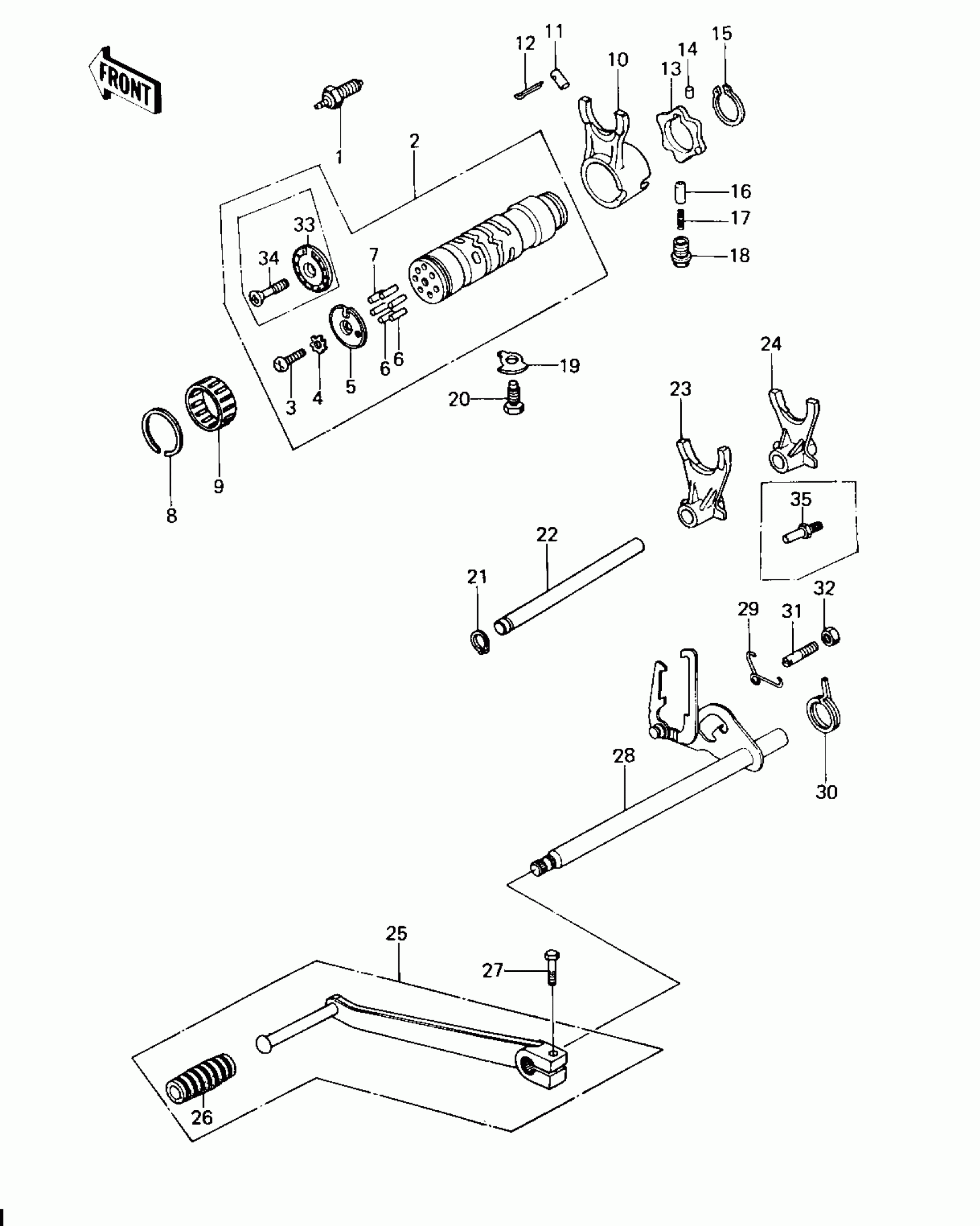

Kawasaki Custom GEAR CHANGE MECHANISM Diagram

#

Description
Price

1

SWITCH,NEUTRAL

13151-5002

Unavailable

2

DRUM ASSY,SHIFT

13239-1005

Unavailable

2

DRUM-ASSY-CHANGE

13239-1069

Unavailable

2

DRUM-ASSY-CHANGE

13239-1069

Unavailable

3

SCREW-PAN-CROS,6X14

220B0614

$1.14

4

WASHER, LOCK, 6MM

464G0800

Unavailable

6

PIN,DOWEL,4X13.8

92042-030

$2.99

7

PIN,DOWEL,4X15.8

92042-014

$0.46

8

RING-SNAP,37MM

92033-035

$7.44

9

BEARING-NEEDLE,37BTM4312

92046-051

$23.59

10

FORK-SHIFT,4TH&TOP

13140-1009

$120.23

11

PIN,DOWEL,8X18

92042-021

$8.75

12

PIN-COTTER,3.0X20

550D3020

$1.32

13

CAM-CHANGE DRUM

13145-1058

$22.71

14

ROLLER,4X6

610A0406

$3.29

15

CIRCLIP-TYPE-C,30MM

480J3000

$4.67

16

PIN

92043-076

$11.22

17

UNAVAILABLE IN PRICE BOOK

92061-112

Unavailable

18

BOLT,FLANGED,16X16.5

92001-131

Unavailable

19

WASHER,LOCK,10MM

92024-074

$3.92

20

BOLT,10X26

92001-174

$8.03

21

CIRCLIP-TYPE-C,12MM

480J1200

$0.59

22

ROD-SHIFT

49047-5003

$22.90

23

SHIFT FORK,LOW,2&3RD

13140-070

Unavailable

23

FORK-SHIFT,LOW,2ND&3RD

13140-1008

$120.23

24

SHIFT FORK,LOW

13140-069

Unavailable

24

SHIFT FORK, LOW

13140-1006

Unavailable

25

PEDAL ASSY,GEAR SHIFT

13242-022

Unavailable

26

DAMPER,CHANGE PEDAL

92160-1036

$3.85

27

BOLT-UPSET,6X20

112G0620

Unavailable

28

LEVER-COMP-CHANGE SHAFT

13161-042

$125.91

29

MAIN JET NO 160M

92063-018

Unavailable

30

JET-MAIN NO 260A

92063-028

$15.46

31

PIN, SHIFT DRUM RETURN SPRING

92043-067

Unavailable

32

NUT 8MM

312B0800

Unavailable

33

HOLDER,CHANGE DRUM PIN

13091-1104

$24.63

34

SCREW-CSK-CROS,6X20

221B0620

$1.71

35

BOLT,RETURN SPRING

92001-1401

$4.17
