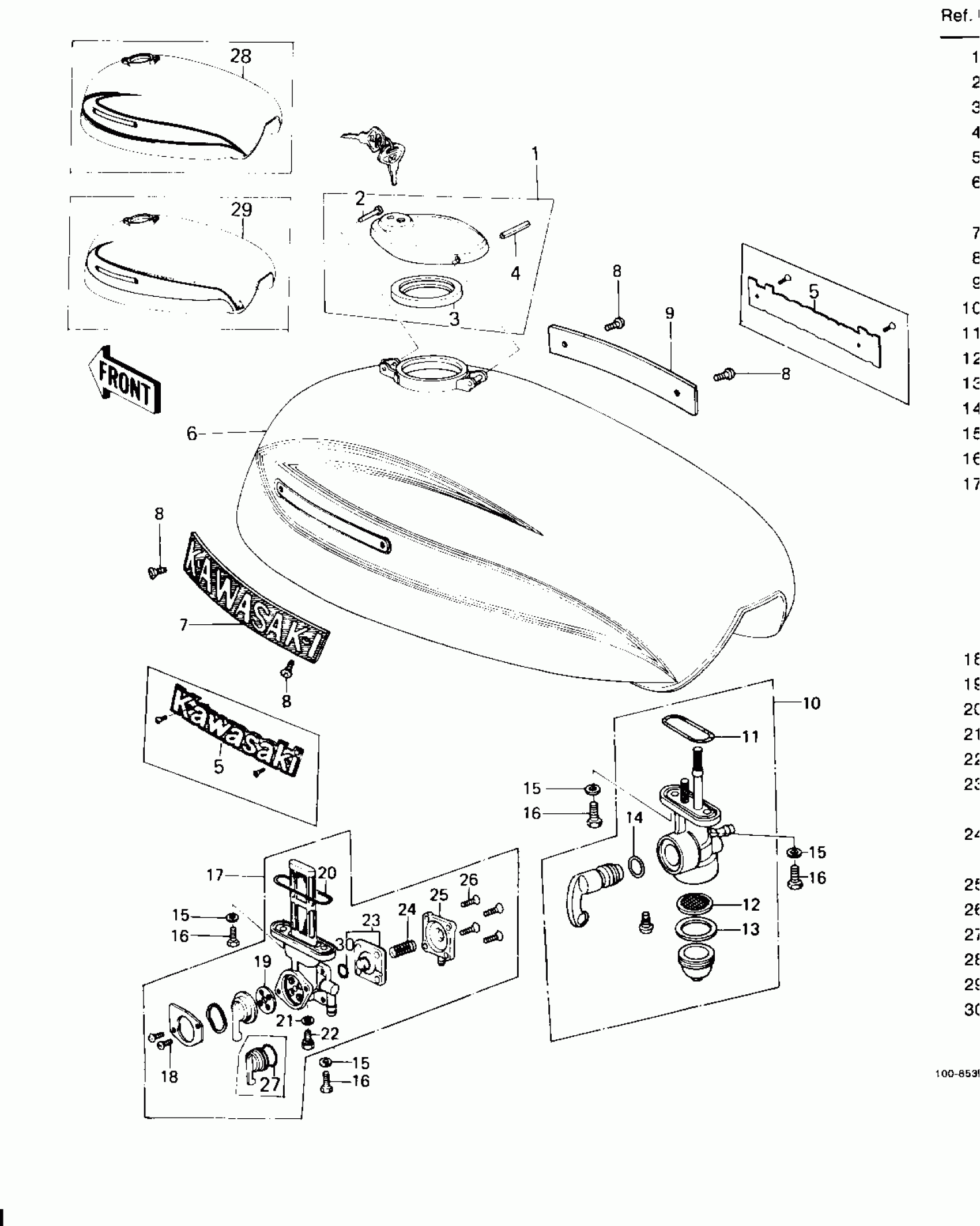

Kawasaki Custom FUEL TANK Diagram

#

Description
Price

1

CAP,FUEL TANK

51048-012

Unavailable

2

PIN,HOOK

92043-126

Unavailable

3

GASKET-FUEL TANK CAP

51059-008

$10.26

4

PIN,CAP HINGE

92043-127

$4.61

5

EMBLEM,FUEL TANK

56014-1037

Unavailable

6

TANK-FUEL,M.R.BLUE

51001-115-7M

$800.26

6

TANK-FUEL,M.SILVER

51001-115-7N

$800.26

7

EMBLEM,FUEL TANK,L.H

56013-058

Unavailable

8

SCREW-CSK-CROS

221C0306

$0.70

9

EMBLEM,FUEL TANK,R.H

56014-065

Unavailable

10

COCK ASSY,FUEL

51023-057

Unavailable

11

RING,TAP FLANGED

51039-010

$6.01

12

STRAINER FUEL

51038-007

Unavailable

13

GASKET FUEL COCK CUP

51037-010

$4.95

14

O RING,10MM

670B2010

$1.18

15

WASHER-PLAIN

92022-183

$3.12

16

BOLT,6X20

92001-1091

$3.12

17

TAP ASSY,FUEL

51023-1023

Unavailable

17

TAP ASSY,FUEL

51023-1023

Unavailable

17

TAP ASSY,FUEL

51023-1023

Unavailable

17

TAP ASSY,FUEL

51023-1023

Unavailable

18

SCREW-PAN-CROS,3X8

220B0308

$0.56

19

GASKET,TAP VALVE

11009-1194

$7.89

20

RING,TAP FLANGED

51039-010

$6.01

21

GASKET,DRAIN BOLT

11009-1045

Unavailable

22

BOLT,DRAIN

92001-1089

Unavailable

23

DIAPHRAGM ASSY,TAP

43028-1004

$8.24

23

DIAPHRAGM,TAP

43028-1015

$18.46

24

SPRING,TAP

92081-1055

$5.19

24

SPRING,TAP DIAPHRAGM

92081-1171

$3.46

25

COVER-ASSY,TAP DIAPHRAGM

16146-1005

$19.78

26

SCREW CNTSNK HD 4X12

221B0412A

Unavailable

27

RING-O,TAP LEVER

92055-1027

$4.15

28

TANK-FUEL,M.S.SILVER

51001-5032-7W

$902.09

29

TANK-FUEL,L.D.BLUE

51001-1016-7Z

$822.86

30

O RING,4MM

670B1504

$3.27
