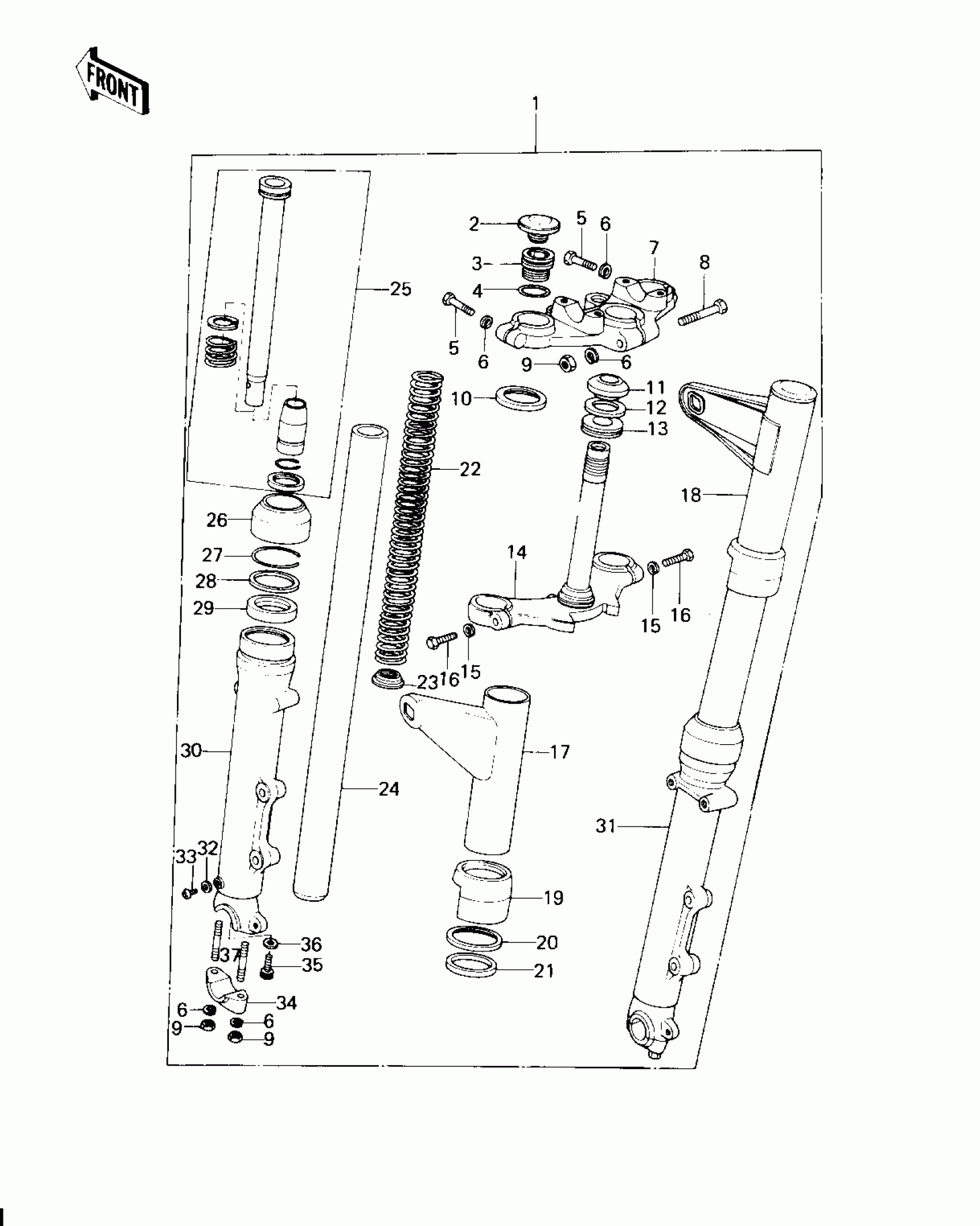

Kawasaki Custom FRONT FORK Diagram

#

Description
Price

1

FORK-FRONT

44001-1008

$1,258.97

2

CAP,RUBBER

11012-1017

$8.74

3

SEAT-FORK SPRING

44029-1046

$20.90

4

RING-O,FORK TOP

92055-1012

$6.48

5

BOLT-HEX HEAD.8M/M

44041-045

$24.03

6

WASHER SPRING 8MM

461F0800

Unavailable

7

HEAD,STEERING STEM

44039-076

$218.21

8

BOLT-STEERING STEM HD

44041-042

Unavailable

9

NUT,LOCK,8MM

92015-1124

$4.10

10

WASHER,FORK COVER

44064-005

Unavailable

11

RACE,STEERING STEM BEARING

92047-012

$14.20

12

WASHER,30.5X50X0.6

92022-231

$4.17

13

SEAL-OIL,STEERING STEM

92056-003

$6.75

14

STEM,STEERING

44037-107

$461.58

15

WASHER-SPRING,12MM

461F1200

Unavailable

16

BOLT-HEX HEAD,12X36

92003-064

$24.03

17

COVER,L.H.-FORK

44033-1017

$203.76

18

COVER,R.H,FORK

44033-1018

$110.71

19

GUIDE,FORK COVER

44064-025

Unavailable

20

WASHER,FORK COU GUID

44064-008

$11.07

21

GASKET,FORK COVER

44045-038

Unavailable

22

SPRING,FORK

44026-1006

$48.93

23

GUIDE,FORK SPRING

44028-1001

Unavailable

24

TUBE,FORK INNER

44013-1005

$275.35

25

CYLINDER-FORK

44022-1004

$84.36

26

DUST SHEILD,FORK

44010-032

$35.15

27

CIRCLIP-OIL SEAL FIT

44044-012

$31.04

28

WASHER-OIL SEAL FIT

44043-044

$12.86

29

OIL SEAL,FORK

44009-024

$18.72

30

TUBE,LH,FORK OUTER

44005-1034

$212.75

31

TUBE,RH,FORK OUTER

44006-1034

$218.51

32

GASKET,FORK DRAIN PLUG

44045-002

$3.95

33

SCREW PAN HEAD 4X8

220B0408

Unavailable

34

HOLDER,FRONT AXLE

44063-014

Unavailable

35

BOLT,SOCKET,FORK CYLINDER

44041-040

$4.93

36

GASKET

44045-057

$3.71

37

STUD,8X35

92004-1009

$4.80
