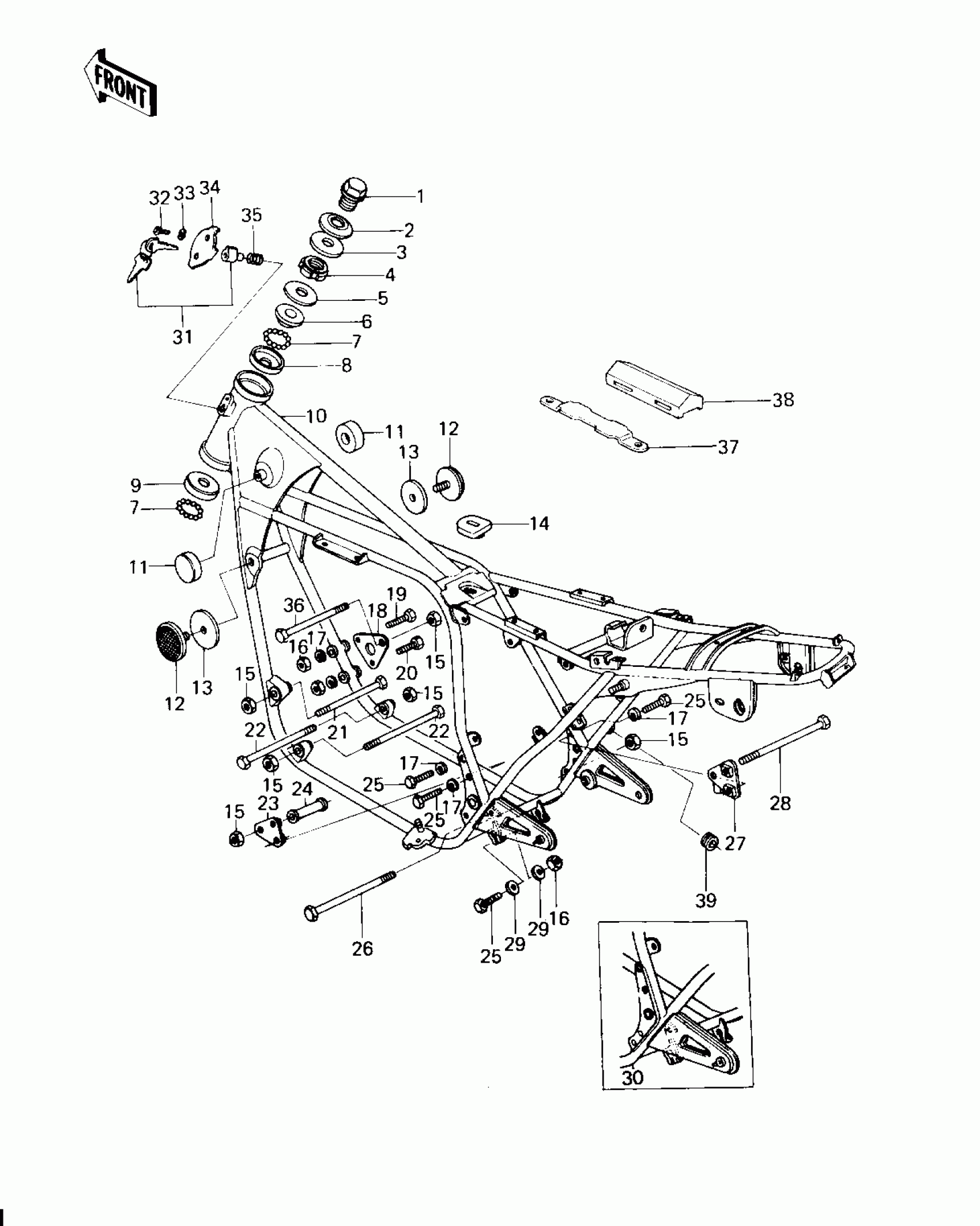

Kawasaki Custom FRAME/FRAME FITTINGS Diagram

#

Description
Price

1

BOLT,16X25.5

92007-031

Unavailable

2

WASHER,16X41X4

92022-230

$11.42

3

WASHER,WAVE

46100-003

Unavailable

4

NUT,30MM

92090-007

$8.91

5

CAP,STEERING STEM

46098-016

$5.66

6

RACE,STEERING STEM BEARING

92047-011

$13.85

7

BALL-STEEL,1/4

600A0800

$0.59

8

RACE,STEERING STEM BEARING

92048-006

$8.83

9

RACE,STEERING STEM BEARING

92048-008

$12.16

10

FRAME

32002-1008

$1,040.25

11

DAMPER,FUEL TANK

92075-101

$4.67

12

REFLECTOR-REFLEX,FR

28012-016

$18.77

13

DAMPER,REFLECTOR

92094-011

$4.08

14

DAMPER,FUEL TANK

92075-295

$7.30

15

NUT,LOCK,10MM

92019-021

$4.59

16

NUT,8MM

311B0800

Unavailable

17

WASHER SPRING 8MM

461F0800

Unavailable

18

PLATE,FRONT ENG.MOUNT

32030-063

Unavailable

19

BOLT,8X63

92001-1397

$3.91

20

BOLT,HEX HEAD,8X59

110G0859

Unavailable

21

BOLT,HEX HEAD,10X72

92001-1049

Unavailable

22

BOLT,HEX HEAD,10X84

92001-1048

Unavailable

23

PLATE,RR ENG MONT,L.

32030-064

Unavailable

24

COLLAR,L=54

92027-275

$17.20

25

BOLT

92001-1578

$6.54

26

BOLT,HEX HEAD,10X219

92091-032

Unavailable

27

PLATE,RR ENG MONT,R.H

32030-065

Unavailable

28

BOLT, HEX HEAD 10X250

92090-023

$38.12

29

WASHER PLAIN 8MM

410B0800

Unavailable

30

FRAME

32002-1058

$1,039.03

31

LOCK-ASSY,STEERING

27016-5009

Unavailable

31

LOCK-ASSY,STEERING

27016-5009

Unavailable

32

SCREW TAPPING

92006-007

Unavailable

33

WASHER,WAVE

92097-003

$3.43

34

CAP,STEERING LOCK

11012-1134

$5.95

35

SPRING,STEERING LOCK

27032-001

Unavailable

36

BOLT,HEX HEAD,10X46

92001-1050

Unavailable

37

BRACKET,IGNITION COIL

11034-1125

Unavailable

38

DAMPER,IGNITION COIL

92075-1033

Unavailable

39

GROMMET,HOSE CLAMP

43064-007

$4.18
