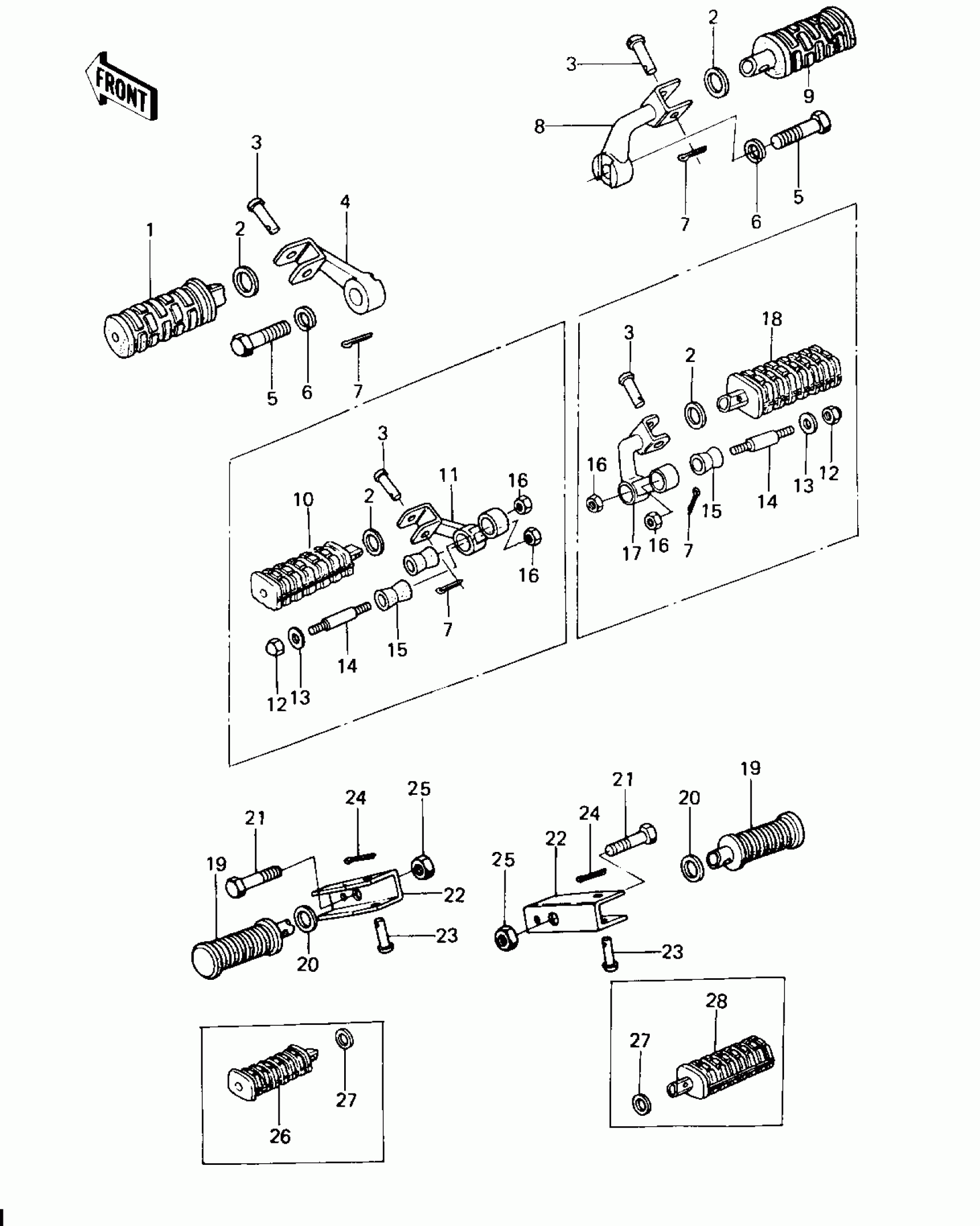

Kawasaki Custom FOOTRESTS Diagram

#

Description
Price

1

BAR-FOOTREST,L.H

34028-011

Unavailable

2

WASHER,25X36X2.3

92022-250

$3.81

3

PIN,8X31

92043-080

$5.03

4

BRACKET FTR.BAR,L.H.

34003-063

$95.45

5

BOLT HEX HEAD 12X40

113G1240

Unavailable

6

WASHER-SPRING,12MM

461F1200

Unavailable

7

PIN COTTER 2.5X16

550D2516

$2.27

8

BRACKET,FTR BAR,R.H.

34003-064

$108.22

9

BAR-FOOTREST,R.H

34028-012

Unavailable

10

STEP,FOOTREST,FRONT,

34028-1007

Unavailable

11

HOLDER,STEP,L.H.

34003-1012

Unavailable

12

NUT,CAP AND LOCK,8MM

92019-013

$11.31

13

CAP,FOOTRESTBAR

92102-010

$6.47

14

STUD,FOOTREST BAR FI

92004-048

Unavailable

15

DAMPER RUBBER,FOOTRE

92075-293

Unavailable

16

NUT-HEX-FINE,10MM

315B1000

Unavailable

17

HOLDER,STEP,R.H.

34003-1015

Unavailable

18

STEP,FOOTREST,FRONT,

34028-1008

Unavailable

19

RUBBER,FOOTREST

92076-027

$37.92

20

WASHER-PLAIN (OPT)

92022-199

Unavailable

21

BOLT,HEX HEAD,10X40

92003-213

Unavailable

22

BRACKET,REAR FOOTREST

34036-002

Unavailable

23

PIN,6X28

92043-1464

$6.18

24

PIN-COTTER,2.0X12

550D2012

$0.89

25

NUT,LOCK,10MM

92019-021

$4.59

26

STEP,RR,LH

34028-1009

$35.85

27

WASHER,22.5X30X2.6

92022-181

Unavailable

28

STEP,RR,RH

34028-1010

$35.85
