1972 Yamaha CT2 (CT2) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1972 Yamaha CT2 (CT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

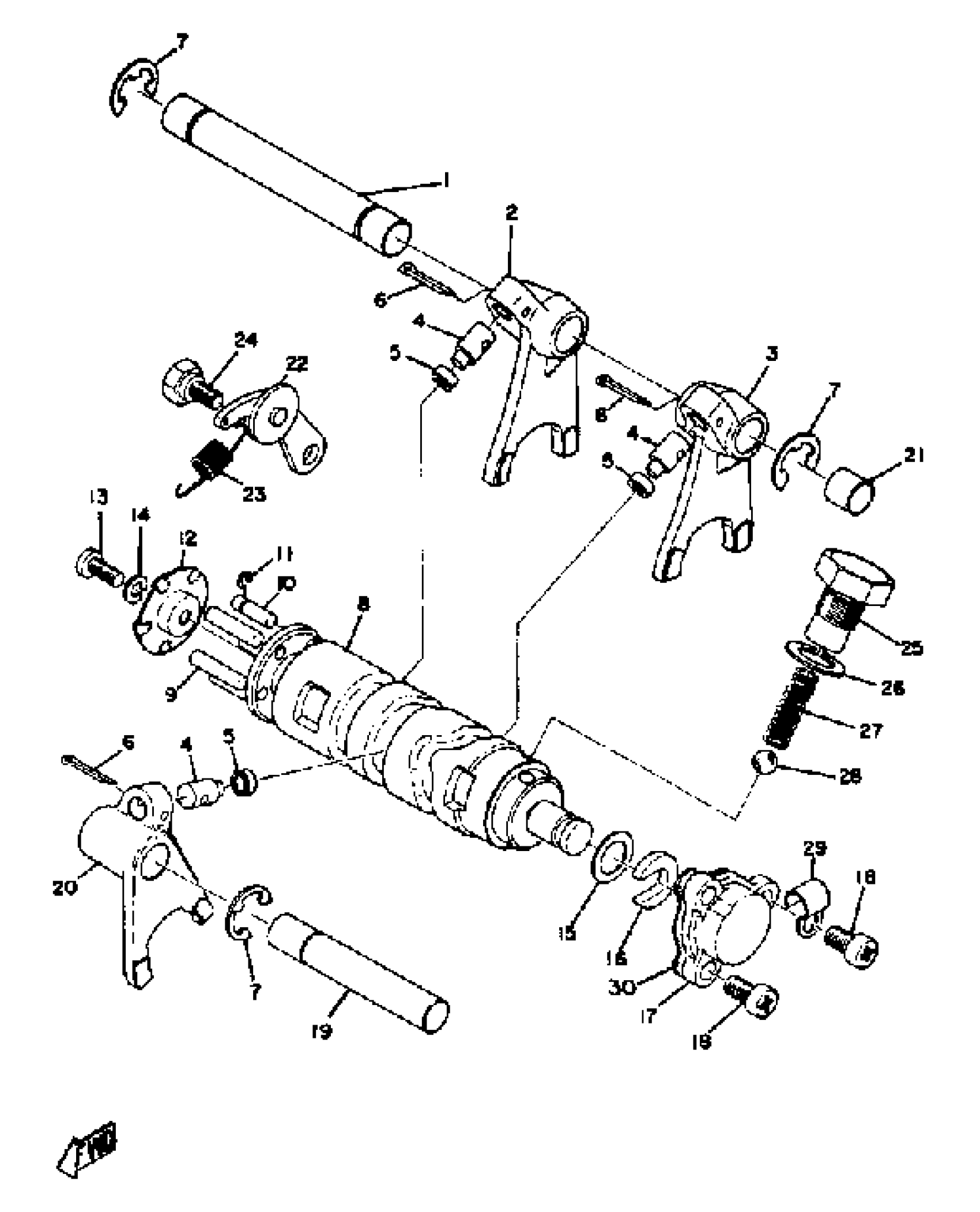

1972 Yamaha CT2 (CT2) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BAR, SHIFT FORK GUIDE 1

214-18531-00-00

1
Out of stock

2

FORK, SHIFT 3

463-18513-00-00

—

$34.14

In stock

3

FORK, SHIFT 1

463-18511-00-00

—

$34.26

In stock

4

PIN, SPEC''L SHAPE

(90249-05035-00)

1
Out of stock

4

PIN, STRAIGHT

90250-08017-00

1
Out of stock

5

PIN,SPEC'L SHAPE

90249-05035-00

1
Out of stock

6

PIN, COTTER

91490-25020-00

1

$2.94

In stock

7

CIRCLIP

99006-10600-00

1

$6.91

In stock

8

SHIFT CAM ASSEMBLY

315-18540-00-00

1
Out of stock

9

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

10

. PIN, SPEC''L SHAPE (174-18544-00)

90249-04039-00

1
Out of stock

11

. CIRCLIP, E-TYPE

93430-03014-00

1
Out of stock

12

PLATE, SIDE

164-18561-00-00

1

$5.42

In stock

13

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

WASHER PLATE 164185720000

90201-12166-00

—

$6.29

In stock

16

HOLDER, SHIFT CAM

164-18571-01-00

—

$8.28

In stock

17

PLUG, BLIND SHIFT CAM

164-18589-00-00

—

$7.83

In stock

18

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

18

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

19

BAR, SHIF FRK GDE 1

(248-18531-00-00)

1
Out of stock

20

FORK, SHIFT 2

463-18512-00-00

—
Out of stock

21

PLUG, BLIND

214-15385-00-00

—

$6.72

In stock

22

STOPPER LEVER ASSY

132-18140-01-00

—

$14.20

In stock

23

SPRING, TENSION (260)

90506-09112-00

—
Out of stock

24

BOLT

90109-06239-00

—

$5.77

In stock

25

BOLT

90109-14385-00

—

$13.66

In stock

26

WASHER, PROTECTOR

4F4-14766-00-00

—

$6.11

In stock

27

SPRING, COMPRESION

90501-12750-00

1
Out of stock

28

BALL

93505-16006-00

—

$2.22

In stock

29

CLAMP

(90462-05012-00)

1
Out of stock

30

GASKET, PLUG BLIND

4EG-18579-00-00

—

$6.58

In stock
