1972 Yamaha CT2 (CT2) Headlight CT2 CT3 Diagram

← All diagrams

Find the part on the Headlight CT2 CT3 diagram for your 1972 Yamaha CT2 (CT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

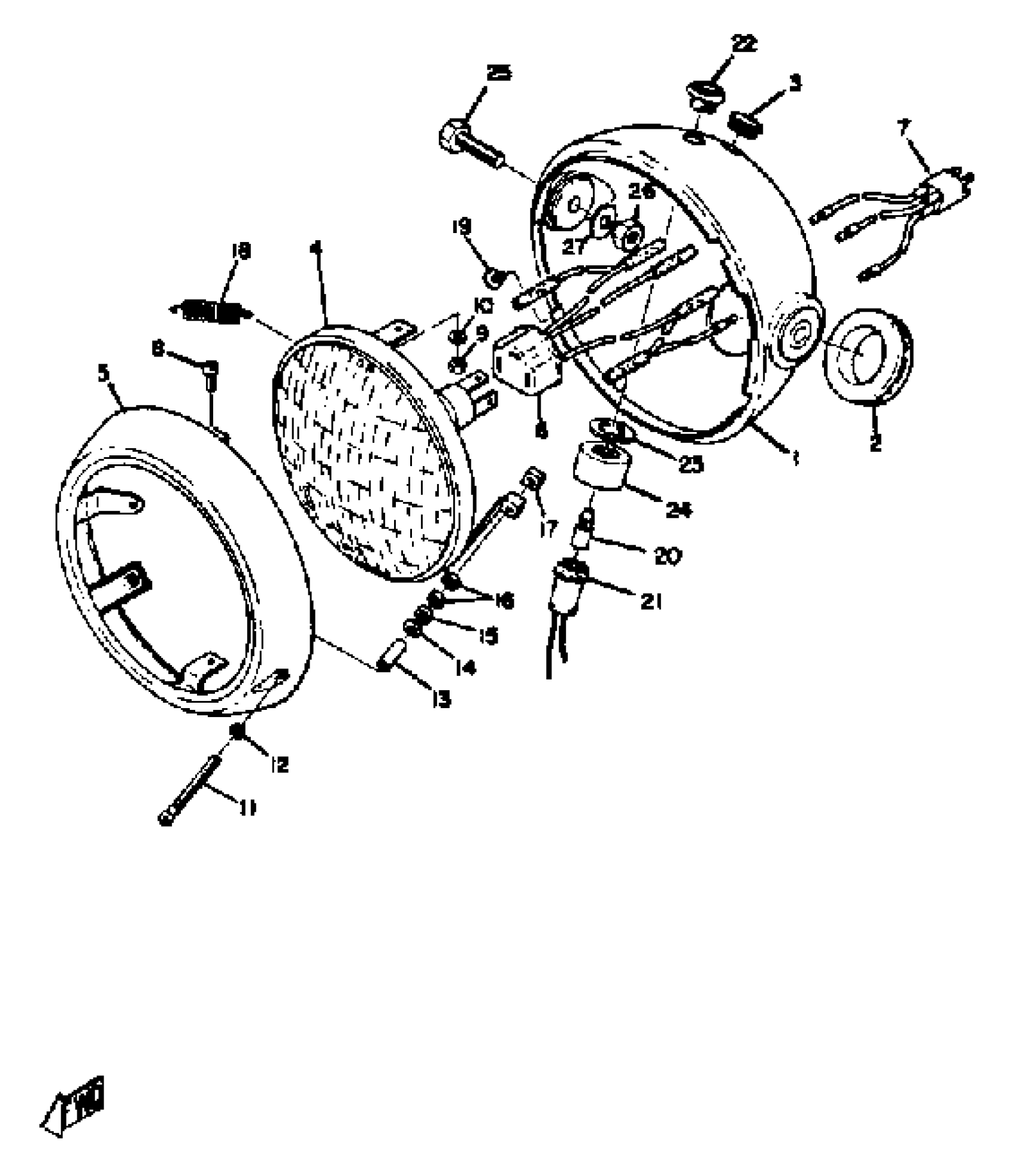

1972 Yamaha CT2 (CT2) Headlight CT2 CT3 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BODY ASSEMBLY, HEADLIGHT

214-84130-61-52

1
Out of stock

1

BODY ASSEMBLY, HEADLIGHT

214-84130-61-63

1
Out of stock

2

PILOT LIGHT ASSEMBLY

214-84101-61-00

1
Out of stock

2

GROMMET, WIREHARNESS

214-84153-60-00

1
Out of stock

3

GROMMET

214-84154-60-00

1
Out of stock

4

LENS ASSEMBLY

251-84120-61-00

1
Out of stock

5

RIM, HEADLIGHT

233-84115-60-00

1
Out of stock

6

SOCKET, CORD

261-84312-61-00

1
Out of stock

7

CORD, HEADLIGHT

214-84159-61-00

1
Out of stock

8

SCREW,PAN HEAD (646)

98580-05012-00

1

$5.60

In stock

9

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

10

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

11

SCREW 214841316100

90157-04001-00

1

$5.35

In stock

12

WASHER,SPECIAL

233-84127-60-00

1

$2.78

In stock

13

. COLLAR, SCREW

233-84133-60-00

1
Out of stock

14

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

15

. SPACER

132-84328-60-00

1
Out of stock

16

NUT(6L4)

95380-04700-00

—

$5.62

In stock

17

NUT, ADJUST

198-84334-60-00

—

$6.43

In stock

18

SPRING

132-84335-60-00

1
Out of stock

19

SCREW, OVAL HEAD (1A0)

90152-05005-00

—

$2.82

In stock

20

BULB,METER(6V1.5W)

104-83517-10-00

—

$7.43

In stock

21

PILOT LIGHT ASSEMBLY 1

256-84301-61-00

1
Out of stock

22

TOOL

UNA-VAILA-BL-EI

1
Out of stock

23

WASHER, IN.TOOTH

92901-12300-00

1
Out of stock

24

TOOL

UNA-VAILA-BL-EI

1
Out of stock

25

BOLT (682)

97013-08025-00

—

$6.80

In stock

26

NUT(6L2)

95333-08600-00

—

$3.20

In stock

27

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock
