1972 Yamaha CT2 (CT2) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1972 Yamaha CT2 (CT2), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

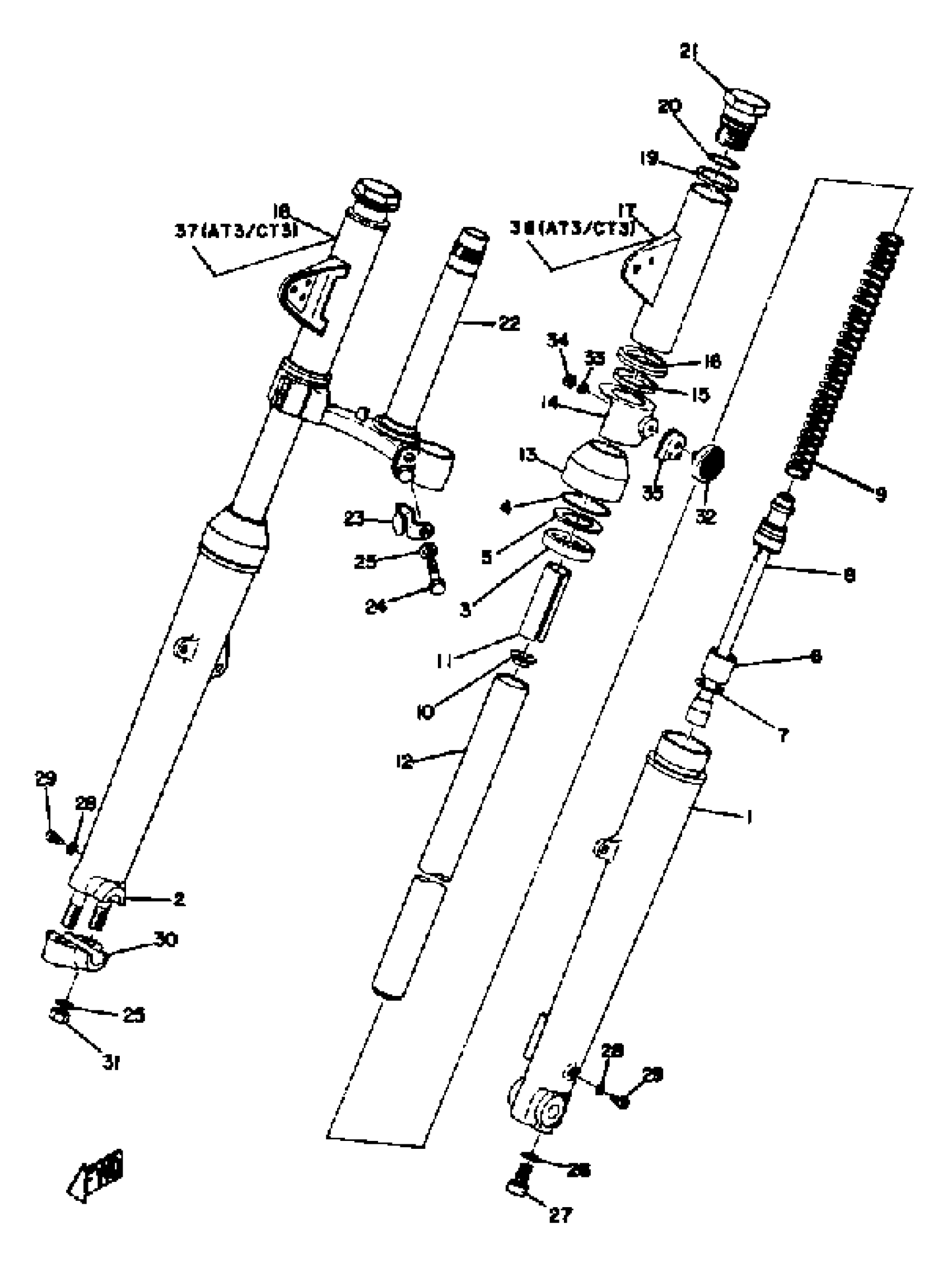

1972 Yamaha CT2 (CT2) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(314-23101-20-00)

1
Out of stock

1

TUBE, OUTER 1

(315-23126-50-00)

1
Out of stock

1

FRONT FORK ASSEMBLY

(316-23100-60-71)

1
Out of stock

1

FRONT FORK ASSEMBLY

(316-23101-20-00)

1
Out of stock

2

TUBE, OUTER 2

(315-23136-50-00)

1
Out of stock

3

OIL SEAL

137-23145-01-00

1

$38.06

In stock

4

CLIP, OIL SEAL

(315-23156-50-00)

1
Out of stock

5

WASHER, OIL SEAL

(315-23146-50-00)

1
Out of stock

6

PISTON, FRONT FORK

(315-23171-50-00)

1
Out of stock

7

CIRCLIP

(535-23183-01-00)

1
Out of stock

8

CYLINDER, FRTFRK

(315-23170-50-00)

1
Out of stock

9

. SPRING, FRONT FORK

318-23141-00-00

1
Out of stock

10

SEAT, SPRING UPPER

(248-23142-00-00)

1
Out of stock

11

SPACER

(315-23118-50-00)

1
Out of stock

12

TUBE, INNER 1

(315-23124-50-00)

1
Out of stock

13

SEAL, DUST

248-23144-00-00

—

$28.22

In stock

14

COVER, OUTER 1

(261-23122-61-00)

1
Out of stock

15

. GASKET (LAMP STAY)

291-23163-61-00

1
Out of stock

16

GUIDE, COVER LOWER

(248-23116-01-00)

1
Out of stock

17

COVER, UPPER 1

(248-23121-01-71)

1
Out of stock

17

. UNAVAILABLE IN PRICE BOOK

(92123-11606-3)

1
Out of stock

18

COVER, UPPER 2

(248-23131-01-71)

1
Out of stock

18

COVER, UPPER 2

(291-23131-60-63)

1
Out of stock

19

GUIDE, COVER UPPER

(248-23115-01-00)

1
Out of stock

20

PACKING(O-RING)

146-23114-00-00

—
Out of stock

21

BOLT, CAP

(2K5-23111-00-00)

1
Out of stock

22

UNDER BRACKET

(248-23340-51-33)

1
Out of stock

23

HOLDER, CABLE 1

(256-23318-60-00)

1
Out of stock

24

BOLT, AXLE HOLDER

18G-23128-00-00

—

$7.77

In stock

25

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

26

GASKET

(214-23158-00-00)

1
Out of stock

27

BOLT,SOCKET

91314-08020-00

—

$6.17

In stock

28

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

29

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

30

. HOLDER, AXLE

315-23167-51-00

1
Out of stock

31

NUT(6L2)

95333-08600-00

—

$3.20

In stock

32

. REFLECTOR, FRONT 1

341-85111-00-00

1
Out of stock

33

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

34

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

35

COVER, RFLCTR STAY

(256-23162-60-00)

1
Out of stock

36

COVER, UPPER 1

(248-23121-01-F3)

1
Out of stock

36

COVER, UPPER 1

(291-23121-60-52)

1
Out of stock

37

COVER, UPPER 2

(248-23131-01-F3)

1
Out of stock

37

COVER, UPPER 2

(291-23131-60-52)

1
Out of stock
