HEAD LAMP, SPEEDOMETER & TACHOMETER (CT1C)

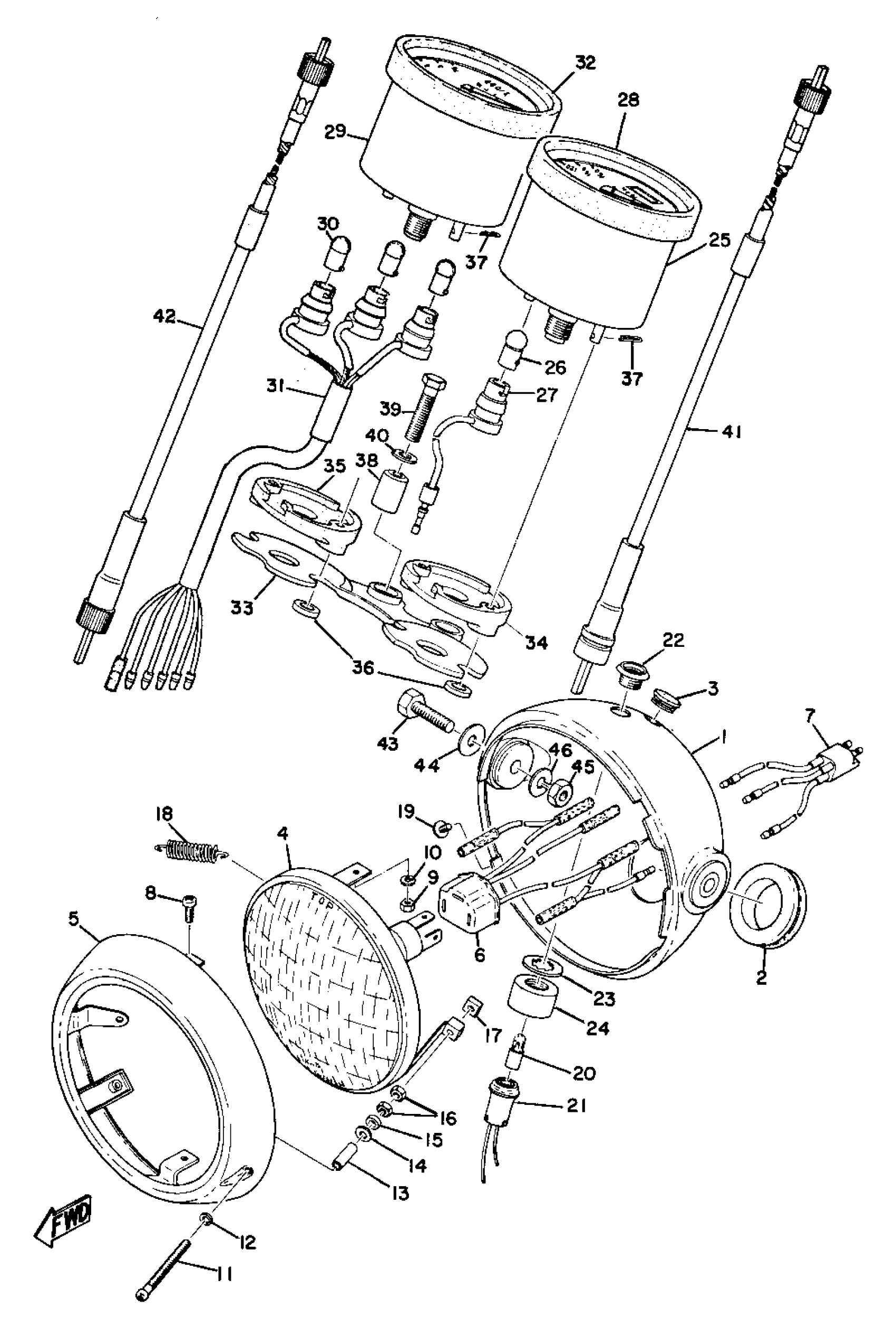

Yamaha CT1C (CT1C) 1971 HEAD LAMP, SPEEDOMETER & TACHOMETER (CT1C) Diagram
#
1
BODY ASSEMBLY, HEADLIGHT
(214-84130-61-52)
Unavailable
2
PILOT LIGHT ASSEMBLY
214-84101-61-00
Unavailable
3
GROMMET
214-84154-60-00
Unavailable
4
LENS ASSEMBLY
251-84120-61-00
Unavailable
5
RIM, HEADLIGHT
233-84115-60-00
Unavailable
6
SOCKET, CORD
261-84312-61-00
Unavailable
7
CORD, HEADLIGHT
(214-84159-61-00)
Unavailable
13
. COLLAR, SCREW
233-84133-60-00
Unavailable
15
. SPACER
132-84328-60-00
Unavailable
16
NUT(6TA)
95307-04600-00
Unavailable
17
NUT, ADJUST
198-84334-60-00
Unavailable
18
SPRING
(132-84335-60-00)
Unavailable
19
SCREW, OVAL HEAD (1A0)
90152-05005-00
Unavailable
20
BULB,METER(6V1.5W)
104-83517-10-00
Unavailable
21
PILOT LIGHT ASSEMBLY 1
256-84301-61-00
Unavailable
23
WASHER, IN.TOOTH
(92901-12300-00)
Unavailable
25
SPEEDOMETER ASSEMBLY
(233-83570-31-00)
Unavailable
26
BULB,(6V3W)
122-83516-10-00
Unavailable
27
SOCKET, METER
(235-83536-21-00)
Unavailable
28
. DAMPER
336-83513-00-00
Unavailable
29
TACHOMETER ASSEMBLY
(248-83540-02-00)
Unavailable
30
BULB,(6V3W)
122-83516-10-00
Unavailable
31
SOCKET CORD ASSEMBLY
(261-83520-01-00)
Unavailable
32
. DAMPER
336-83513-00-00
Unavailable
33
BRACKET, METER
(275-83519-00-33)
Unavailable
34
DAMPER
214-83523-00-00
Unavailable
35
DAMPER
237-83523-00-00
Unavailable
36
WASHER 214835240000
90209-05029-00
Unavailable
37
CLIP (156-83525-00)
90468-10050-00
Unavailable
38
BUSH, SPEC''L RUBBER (214-83528-00)
90385-06001-00
Unavailable
39
BOLT(JF7)
97080-06030-00
Unavailable
40
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
41
SPEEDOMETER CABLE ASSY
1JN-83550-02-00
Unavailable
42
TACHOMETER CABLE ASSY
3T2-83560-00-00
Unavailable
43
BOLT (682)
97013-08025-00
Unavailable
44
WASHER, PLAIN
92990-08200-00
Unavailable
45
NUT(6L2)
95333-08600-00
Unavailable
46
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
