FRONT FORK & FRONT FENDER (AT1MX)

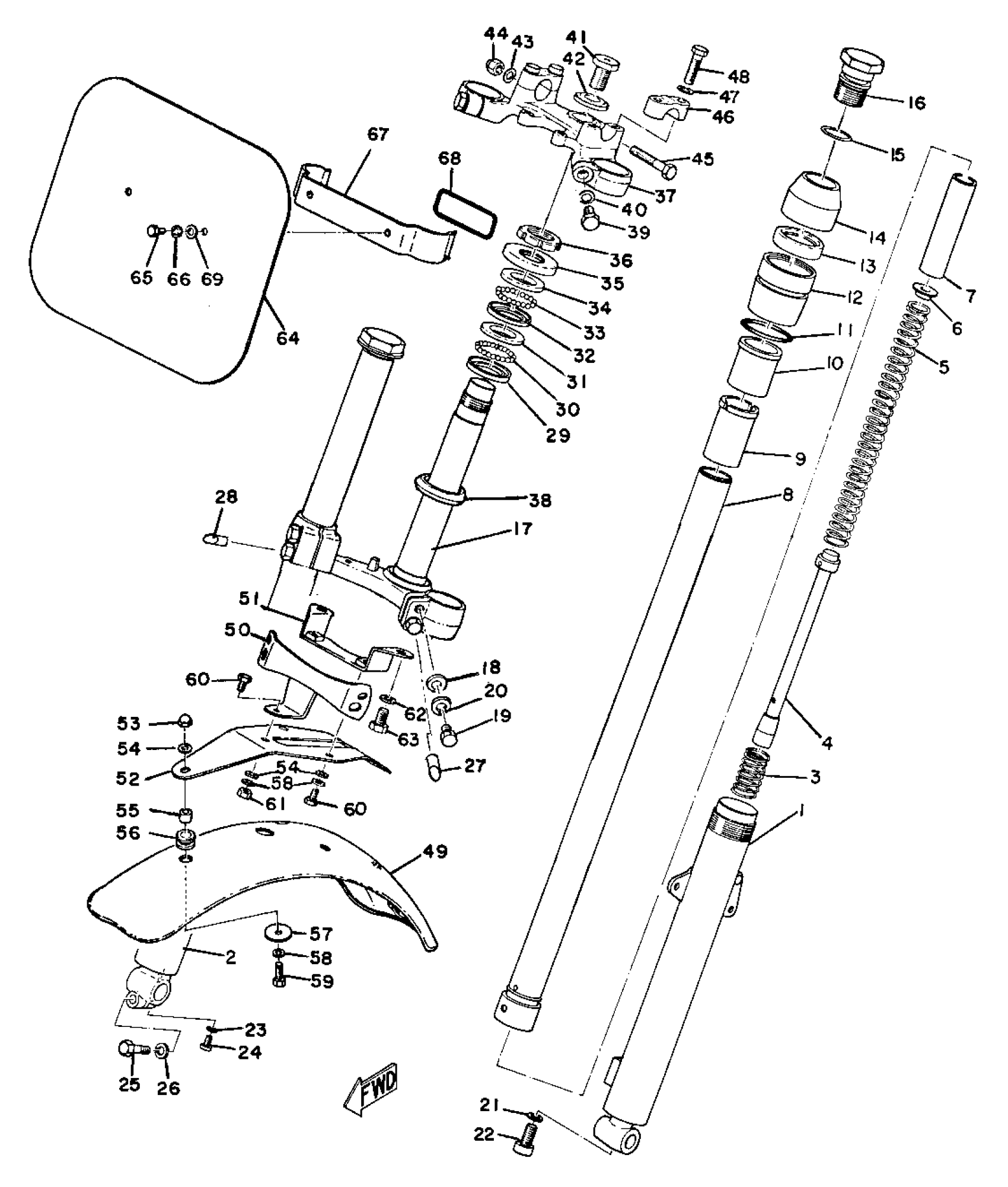

Yamaha CT1C (CT1C) 1971 FRONT FORK & FRONT FENDER (AT1MX) Diagram
#
1
TUBE, OUTER 1
(248-23126-00-35)
Unavailable
1
FRONT FORK ASSEMBLY
(263-23101-02-35)
Unavailable
2
TUBE, OUTER 2
(248-23136-00-35)
Unavailable
3
SPRING, SUB
(248-23152-00-00)
Unavailable
4
CYLINDER, FRTFRK
(248-23170-01-00)
Unavailable
5
. SPRING, FRONT FORK
318-23141-00-00
Unavailable
6
SEAT, SPRING UPPER
(248-23142-00-00)
Unavailable
7
SPACER
(248-23118-00-00)
Unavailable
8
TUBE, INNER 1
(248-23124-00-00)
Unavailable
9
SPACER, OIL LOCK
(248-23166-00-00)
Unavailable
10
. METAL, SLIDE 1
(137-23125-01-00)
Unavailable
11
. O-RING
137-23147-00-00
Unavailable
12
OUTER NUT
(193-23150-40-00)
Unavailable
15
PACKING(O-RING)
146-23114-00-00
Unavailable
16
BOLT, CAP
(2K5-23111-00-00)
Unavailable
17
UNDER BRACKET
(248-23340-51-33)
Unavailable
18
WASHER, PLAIN
92990-08200-00
Unavailable
19
BOLT, AXLE HOLDER
18G-23128-00-00
Unavailable
20
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
21
GASKET
(214-23158-00-00)
Unavailable
22
BOLT,SOCKET
91314-08020-00
Unavailable
23
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
24
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
25
BOLT (682)
97013-08025-00
Unavailable
26
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
27
STAY, PLATE FTNG 1
(263-21581-00-00)
Unavailable
28
STAY, PLATE FTNG 2
(263-21591-00-00)
Unavailable
29
RACE, BALL 1
B6E-23411-00-00
Unavailable
30
BALL
93501-04011-00
Unavailable
31
RACE, BALL 2
B6E-23412-00-00
Unavailable
32
RACE, BALL 2
BP2-23412-00-00
Unavailable
33
BALL
93503-16003-00
Unavailable
34
RACE, BALL 1
BP2-23411-00-00
Unavailable
35
COVER, BALL RACE
122-23416-00-00
Unavailable
36
NUT
90179-25004-00
Unavailable
37
CROWN, HANDLE
(248-23435-03-33)
Unavailable
38
SEAL, DUST
164-23462-00-00
Unavailable
39
BOLT (8J7)
97013-10030-00
Unavailable
40
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
41
BOLT
90101-14113-00
Unavailable
42
WASHER, SPECIAL SHAPE
90209-14022-00
Unavailable
43
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
44
NUT, CROWN
95303-08800-00
Unavailable
45
BOLT, HEXAGON
97013-08050-00
Unavailable
46
HOLDER, HANDLE UPR
(315-23441-00-93)
Unavailable
47
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
48
BOLT, HEXAGON
97013-08030-00
Unavailable
49
FENDER, FRONT
(284-21510-00-35)
Unavailable
50
STAY, FENDER 1
(284-21513-00-35)
Unavailable
51
STAY, FENDER 2
284-21514-00-35
Unavailable
52
BRACKET, FENDER
(284-21512-00-35)
Unavailable
53
NUT (J17)
95380-06800-00
Unavailable
54
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
55
COLLAR(8R4)
90387-062N2-00
Unavailable
56
GROMMET (1E5)
90480-13163-00
Unavailable
57
WASHER, PLATE
90201-06380-00
Unavailable
58
WASHER, SPRING
92995-06100-00
Unavailable
59
BOLT, HEXAGON
97017-06020-00
Unavailable
60
BOLT (661)
97013-06012-00
Unavailable
61
NUT, HEXAGON
95380-06600-00
Unavailable
62
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
63
BOLT(JA9)
90101-08691-00
Unavailable
64
PLATE, NUMBER
(263-23485-00-00)
Unavailable
65
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
66
WASHER, SPRING
92995-06100-00
Unavailable
67
STAY, PLATE
(263-23487-00-00)
Unavailable
68
O-RING
(93210-67057-00)
Unavailable
69
YBS66-6 WASHER, PLAIN
92990-06200-00
Unavailable
