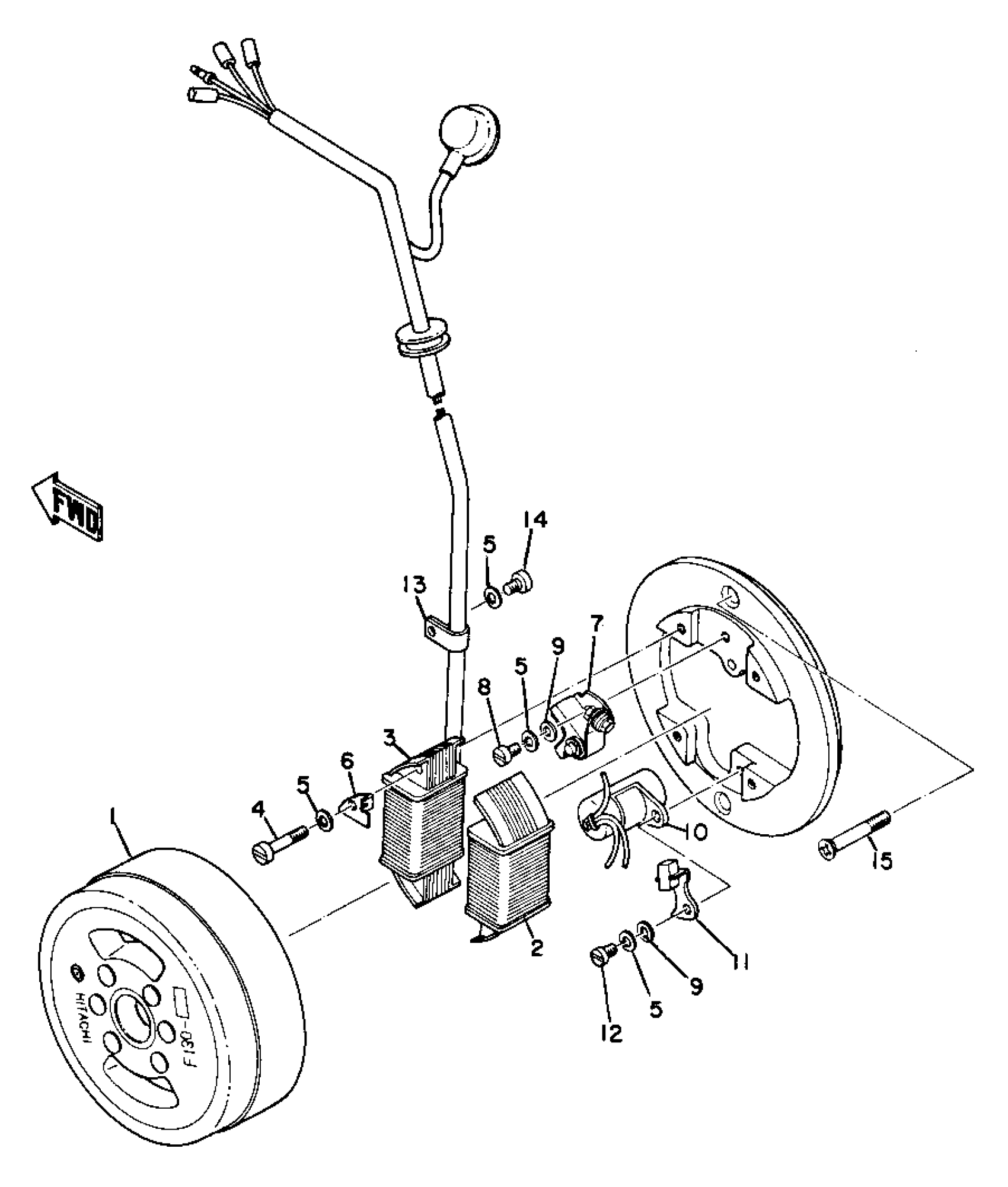

Yamaha CT1C (CT1C) 1971 FLYWHEEL MAGNETO (AT1CMX & CT1C) Diagram

#

Description

Price

1

FLYWHL MAGNETO ASSEMBLY

(248-81300-10-00)

Unavailable

1

ROTOR ASSEMBLY

(248-81350-10-00)

Unavailable

1

FLYWHL MAGNETO ASSEMBLY

(251-81300-10-00)

Unavailable

2

. COIL, SOURCE

185-81312-10-00

Unavailable

3

COIL, LIGHTING 1

(248-81313-10-00)

Unavailable

3

COIL, LIGHTING 1

(251-81313-10-00)

Unavailable

4

SCREW, PAN HEAD

98517-04025-00

Unavailable

5

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

6

PLATE, TIMING

(185-81332-10-00)

Unavailable

7

. CONTACT BREAKER ASSY

207-81321-90-00

Unavailable

8

SCREW, PAN HEAD

110-81346-21-00

$5.49

9

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

10

. CONDENSER 2

207-81326-90-00

Unavailable

11

. LUBRICATOR

207-81331-10-00

Unavailable

12

SCREW, PAN HEAD (E56)

98580-04010-00

$8.49

13

. CLAMP

109-81328-11-00

Unavailable

14

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

15

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable
