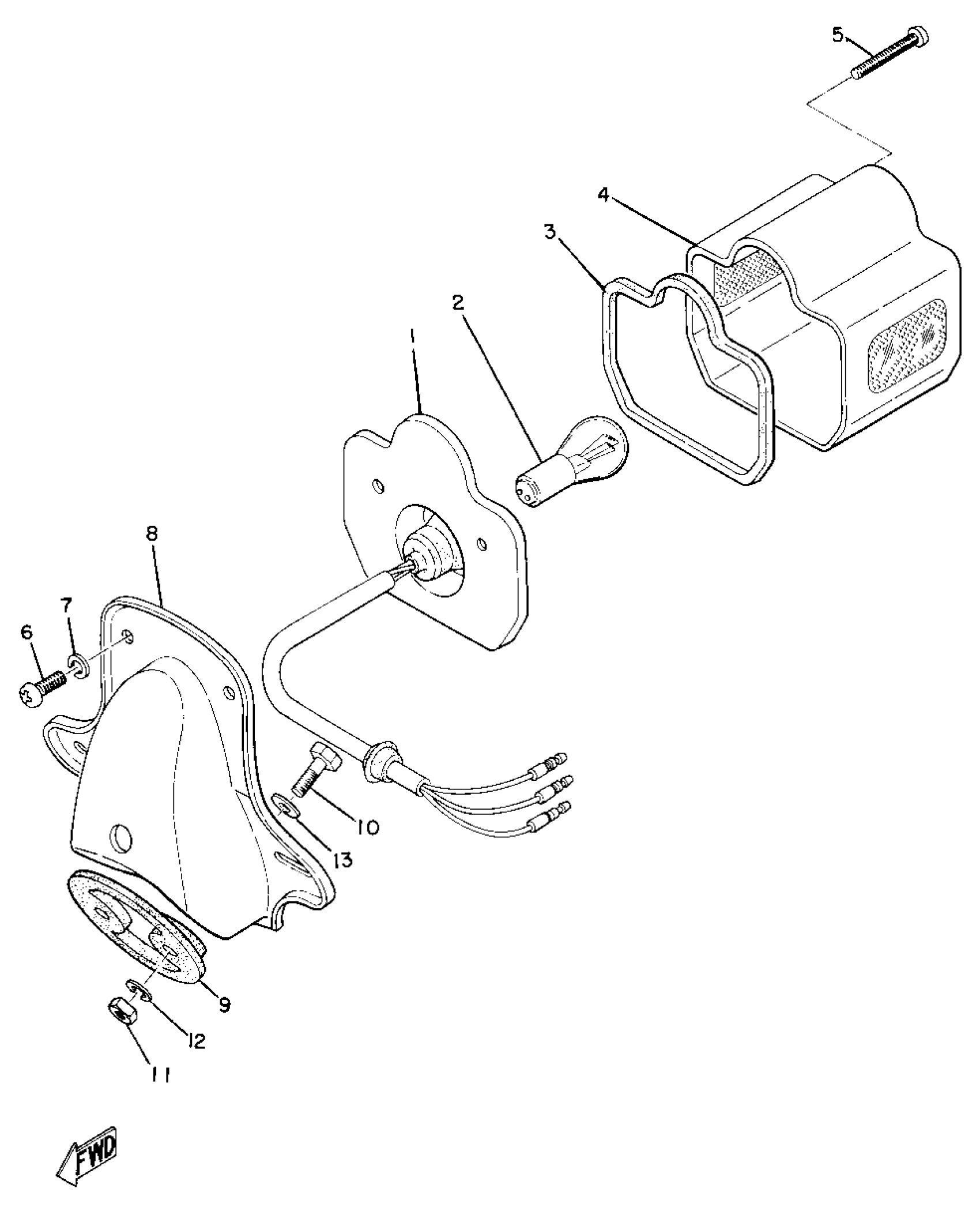

Yamaha CT1B (CT1B) 1970 TAIL LAMP Diagram

#

Description
Price

1

TAILLIGHT UNIT ASSEMBLY

(251-84510-60-00)

Unavailable

1

TAILLIGHT UNIT ASSEMBLY

(261-84710-60-00)

Unavailable

1

BASE, TAILLIGHT

(261-84711-60-00)

Unavailable

2

BULB,TAIL LAMP(6V17/5.3W)

122-84514-30-00

Unavailable

2

BULB(12V32/3CP)1157

137-84714-61-XX

Unavailable

3

SEAT, BASE

(168-84712-60-00)

Unavailable

4

. LENS, TAILLIGHT

(168-84721-60-00)

Unavailable

5

. SCREW, RIM ADJUSTING

3AA-84331-00-00

Unavailable

6

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

7

WASHER, SPRING

92995-06100-00

$2.95

8

BRACKET, LICENSE

(164-84751-60-35)

Unavailable

9

DAMPER

(248-84553-00-00)

Unavailable

10

BOLT 337847520000

90109-06005-00

$5.86

11

NUT, HEXAGON

95380-06600-00

$4.11

12

WASHER, SPRING

92995-06100-00

$2.95

13

WASHER, PLATE (5J0)

90201-085E6-00

Unavailable
