1970 Yamaha CT1B (CT1B) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1970 Yamaha CT1B (CT1B), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

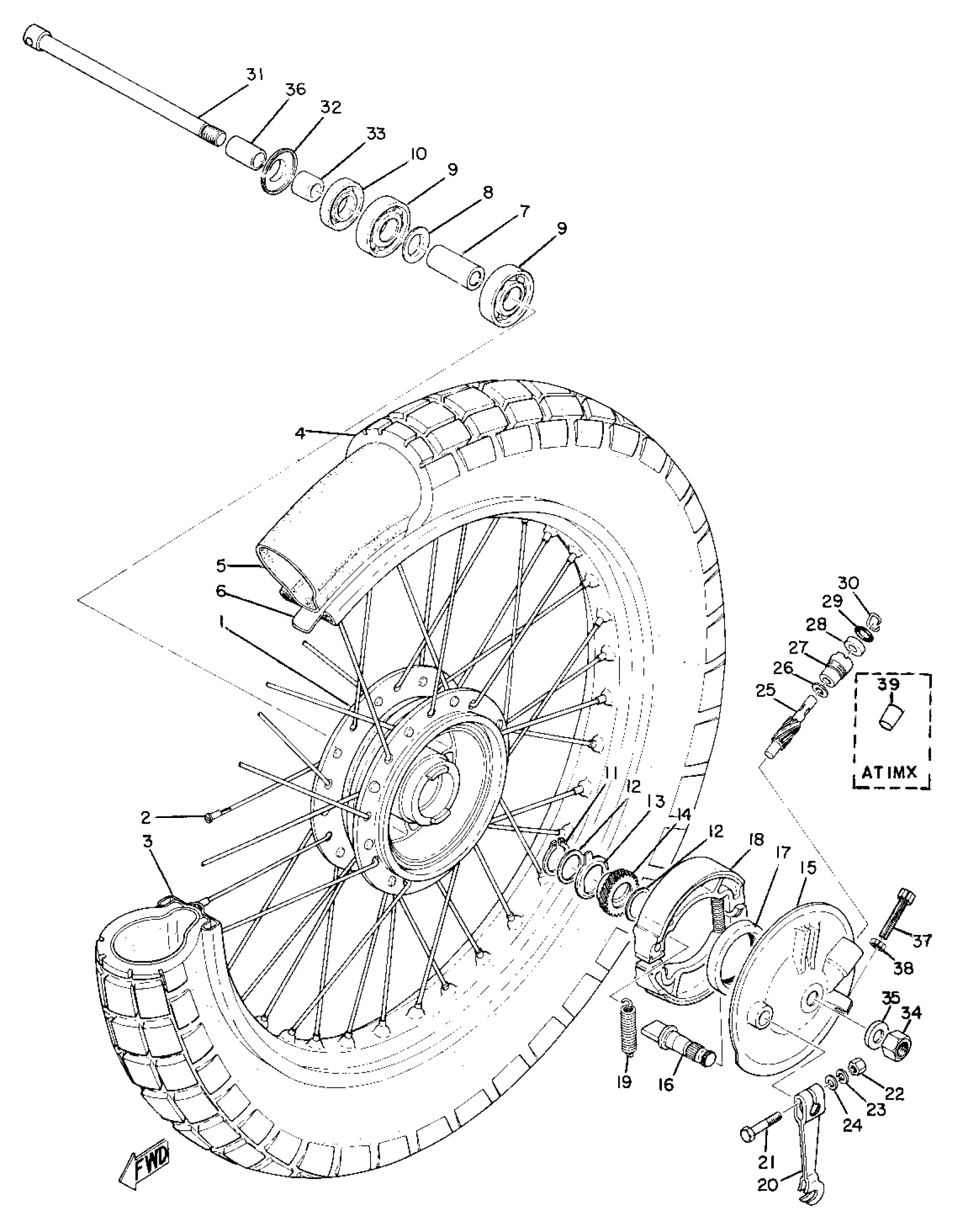

1970 Yamaha CT1B (CT1B) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(248-25111-00-38)

1
Out of stock

2

SPOKE SET, FRONT

(248-25104-00-00)

1
Out of stock

2

SPOKE SET, INNER 1

(248-25196-90-00)

1
Out of stock

2

SPOKE SET, OUTER 1

(248-25197-90-00)

1
Out of stock

3

RIM (1.40-18)

94414-18545-00

1

$107.12

In stock

3

RIM 1.60X18

(94416-18018-00)

1
Out of stock

4

300X18 YOKO Y620

(94130-18322-00)

1
Out of stock

4

325X18 YOKO Y620

(94132-18320-00)

1
Out of stock

5

TUBE (5H5)

94227-18195-00

1
Out of stock

6

BAND, RIM (2J4)

94340-18086-00

1

$16.00

In stock

7

SPACER

90560-12138-00

—

$12.83

In stock

8

FLANGE, SPACER

109-25315-00-00

1

$6.20

In stock

9

BEARING

93306-30102-00

1
Out of stock

10

OIL SEAL (18X37X8-109)

93102-18008-00

1

$22.31

In stock

11

CIRCLIP(1AR)

99009-20400-00

1
Out of stock

12

WASHER, PLATE 1832514700

90201-20269-00

—
Out of stock

13

CLUTCH, METER

183-25149-00-00

—
Out of stock

14

GEAR, DRIVE

301-25135-00-00

1
Out of stock

15

BRAKE SHOE PLT ASSEMBLY

(437-25120-10-00)

1
Out of stock

16

CAM SHAFT

122-25351-02-00

—

$36.95

In stock

17

SEAL,OIL

93105-47007-00

—
Out of stock

18

BRAKE SHOE KIT

4KN-W253E-11-00

—

$22.40

In stock

19

SPRING, TENSION (566).

90506-16150-00

—

$6.98

In stock

20

LEVER, CAM SHAFT

137-25155-00-00

—

$27.94

In stock

21

BOLT(JF7)

97080-06030-00

—

$3.45

In stock

22

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

24

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

25

GEAR, METER

301-25138-00-00

1
Out of stock

26

WASHER, PLATE 1832514600

90201-07076-00

—

$5.75

In stock

27

BUSHING

109-25136-00-00

—

$8.78

In stock

28

OIL SEAL (7X14X4-136)

93104-07003-00

—

$7.29

In stock

29

O-RING (26H)

93210-14579-00

—

$5.69

In stock

30

RING, STOP

102-25137-00-00

—
Out of stock

31

AXLE, WHEEL

427-25181-10-00

1
Out of stock

32

COVER, HUB DUST

2K5-25118-00-00

—
Out of stock

33

COLLAR 1832518300

90387-12095-00

—

$4.63

In stock

34

NUT(3DM)

95304-12600-00

—

$6.68

In stock

35

YBS67-12 WASHER,SPRING

92990-12100-00

—

$6.68

In stock

36

COLLAR

90387-12099-00

1
Out of stock

37

BOLT (109-26345-00)

90123-06011-00

—

$14.12

In stock

38

NUT (109-26344-00)

90179-06143-00

—

$6.68

In stock

39

PLUG, TAPER

(90336-18023-00)

1
Out of stock
