1969 Yamaha CT1 (CT1) Fuel Tank Diagram

← All diagrams

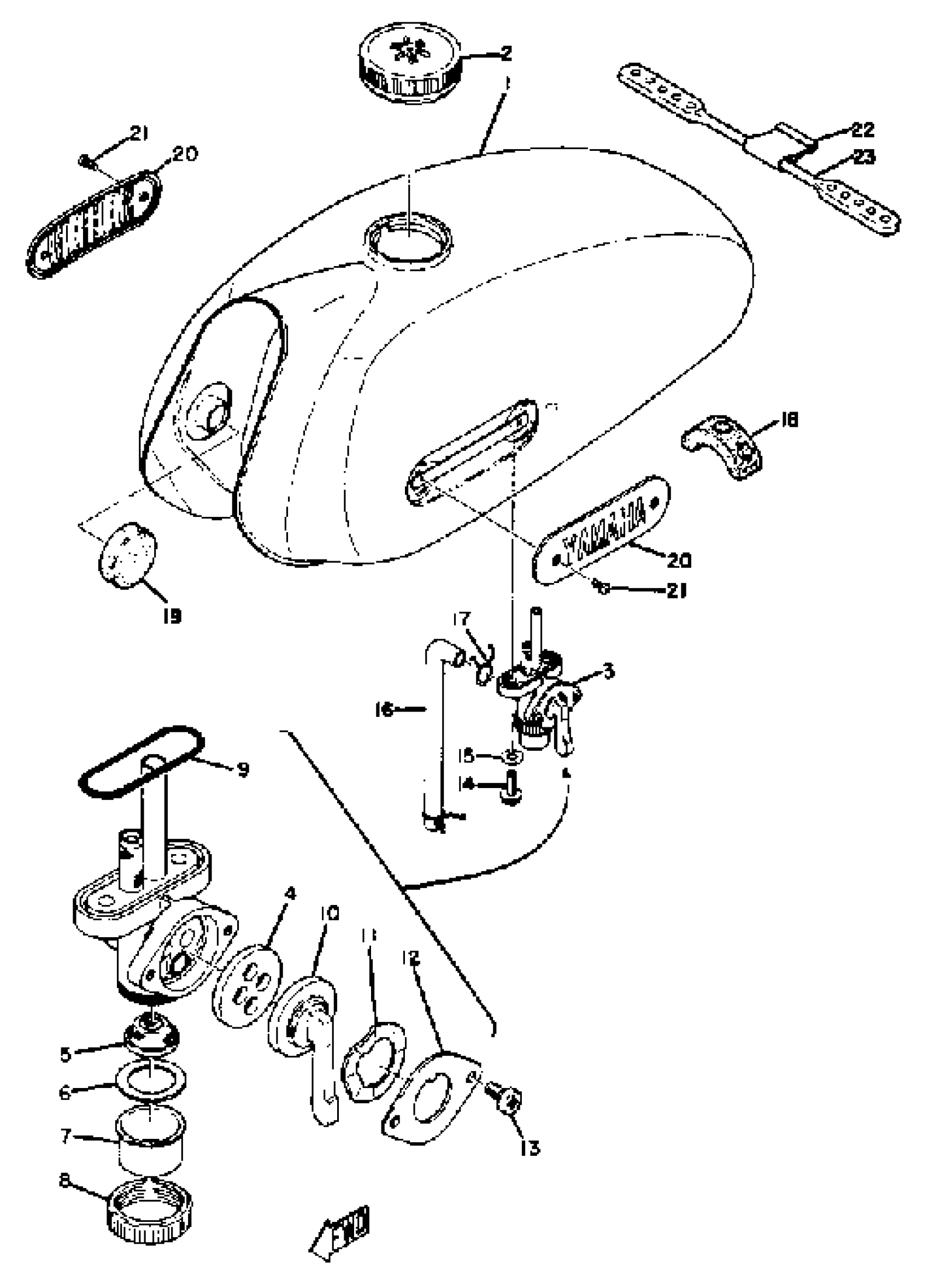

Find the part on the Fuel Tank diagram for your 1969 Yamaha CT1 (CT1), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha CT1 (CT1) Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(248-24110-00-03)

1
Out of stock

2

CAP ASSY

122-24610-01-00

1
Out of stock

3

FUEL COCK ASSY

498-24500-01-00

1
Out of stock

4

VALVE

214-24523-00-00

1
Out of stock

5

. NET, FILTER 2

214-24515-00-00

1
Out of stock

6

GASKET, FILTER

214-24522-00-00

—
Out of stock

7

. CUP, FILTER

214-24521-00-00

1
Out of stock

8

. NUT

214-24531-00-00

1
Out of stock

9

GASKET, BODY

214-24512-00-00

1
Out of stock

10

LEVER, COCK

(214-24524-01-00)

1
Out of stock

11

WASHER WAVE 137245180000

90206-18025-00

—
Out of stock

12

PLATE, LEVER FITTING

(214-24525-00-00)

1
Out of stock

13

SCREW, LEVER FITTING

214-24535-00-00

1
Out of stock

14

SCREW 256241430000

90149-06011-00

1
Out of stock

15

WASHER, PLATE(3MB)

90202-05187-00

1
Out of stock

15

GASKET(J17)

90430-06218-00

—
Out of stock

16

HOSE (L198)

90445-11293-00

—
Out of stock

17

CLIP

90467-100A1-00

—
Out of stock

18

DAMPER, LOCATING 3

(248-24183-00-00)

1
Out of stock

19

DAMPER, LOCATING 1

3TB-24181-00-00

—
Out of stock

20

EMBLEM 1

227-24161-00-00

1
Out of stock

21

SCREW, PAN HEAD (713)

98580-04008-00

—
Out of stock

22

BAND, TANK FITTING 1

214-24173-00-00

1
Out of stock

23

BAND, TANK FITTING 2

248-24173-00-00

1
Out of stock
