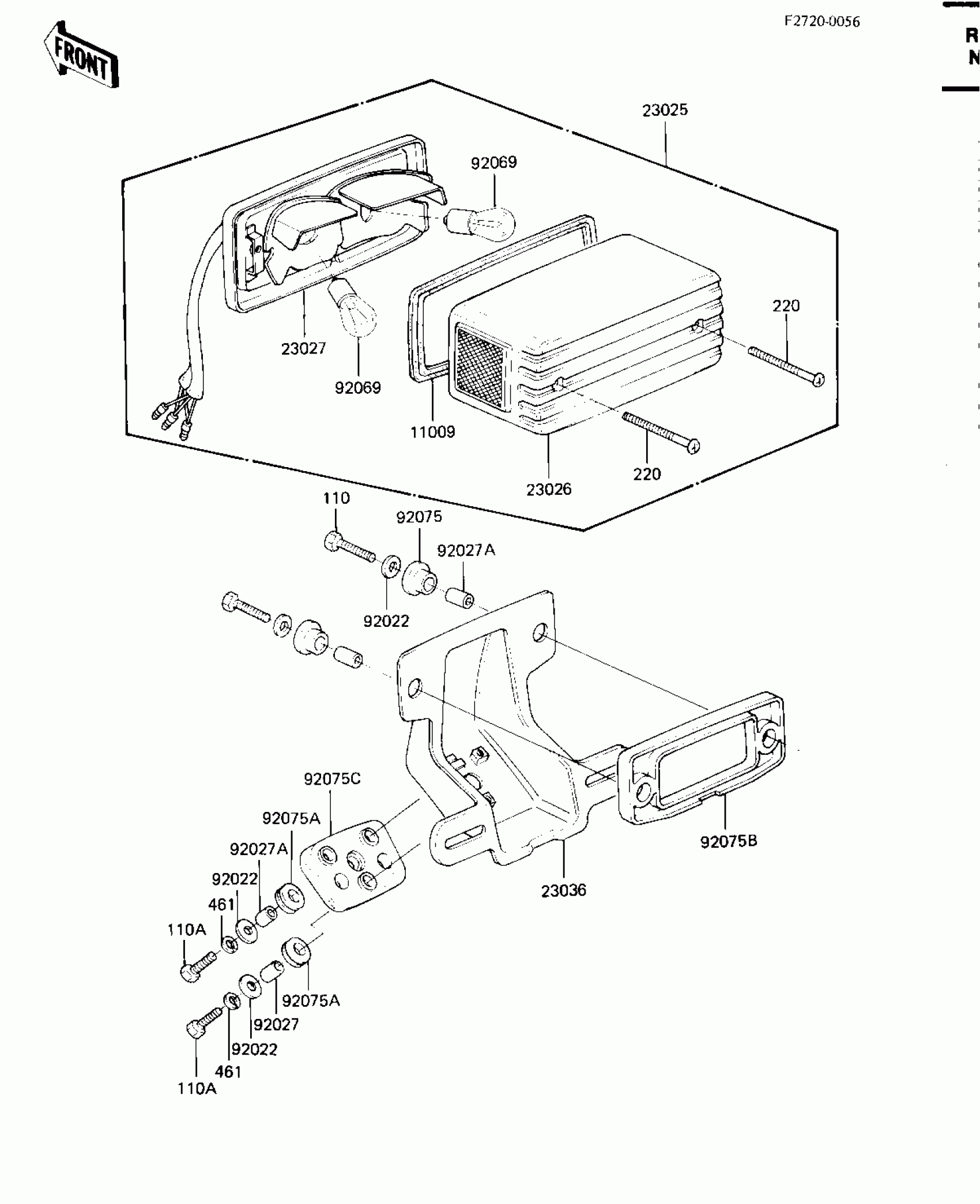

Kawasaki CSR Twin TAILLIGHT Diagram

Description

Price

11009

GASKET,TAIL LAMP

11009-1221

$13.85

23025

LAMP TAIL "220-40896"

23025-1037

$182.72

23026

LENS,TAIL LAMP

23026-1024

$139.42

23027

BODY-COMP TAIL LAMP

23027-1024

$110.15

23036

BRACKET-TAIL LAMP

23036-1033

Unavailable

92022

WASHER,6.5X20X1.6

92022-125

$1.02

92027

COLLAR,6.8X10X14.5

92027-156

$5.00

92027A

COLLAR

92027-169

$6.15

92069

BULB,12V 27/8W

92069-059

$8.12

92075

DAMPER RUBBER

92075-1092

Unavailable

92075A

DAMPER,FENDER

92075-121

$4.56

92075B

DAMPER

92075-1282

Unavailable

92075C

DAMPER

92075-1283

$8.85

110

BOLT 6X22

112B0622

Unavailable

110A

BOLT-UPSET

112G0625

Unavailable

220

SCREW-PAN-CROS

220B0465

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
