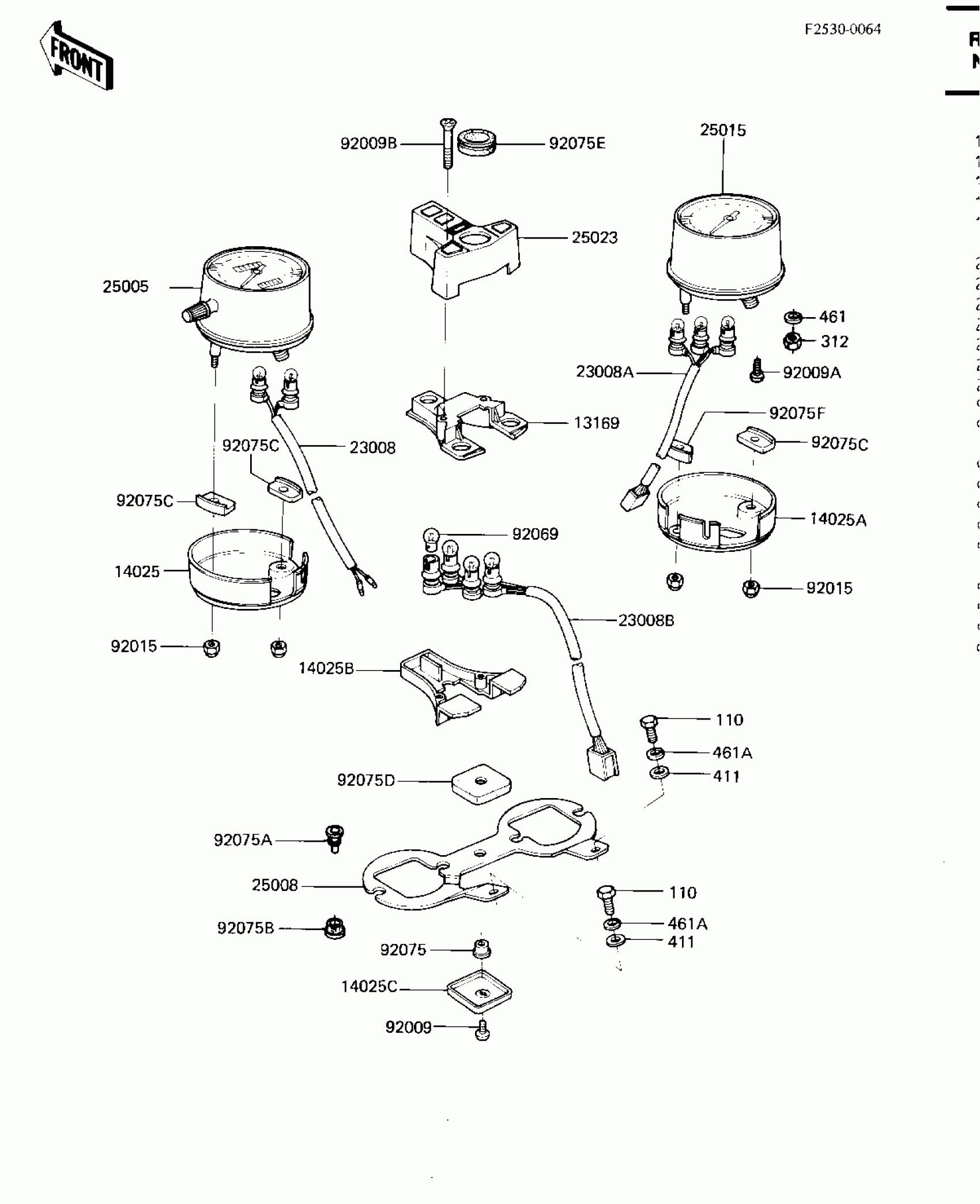

Kawasaki CSR Twin METERS Diagram

#

Description
Price

13169

PLATE,SOCKET

13169-1268

Unavailable

14025

COVER,SPEEDOMETER

14025-1224

Unavailable

14025A

COVER,TACHOMETER

14025-1225

Unavailable

14025B

COVER,PILOT BOX LOWER

14025-1226

Unavailable

14025C

COVER,METER BRACKET

14025-1227

Unavailable

23008

SOCKET-ASSY,SPEEDOMET

23008-1105

$56.25

23008A

SOCKET-ASSY

23008-1106

$56.25

23008B

SOCKET-ASSY,PILOT BOX

23008-1107

$108.77

25005

SPEEDOMETER,MPH

25005-1132

$561.81

25008

BRACKET,METER

25008-1030

$76.07

25015

TACHOMETER

25015-1088

$431.71

25023

COVER,PILOT BOX UPPER

25023-1021

Unavailable

92009

SCREW,TAPPING,4X10

92009-1040

$3.69

92009A

SCREW,CUNTERSNK,4X35

92009-1093

$2.98

92015

NUT-CAP,5MM

322N0500

Unavailable

92069

BULB,12V 3.4W,T10

92069-1007

$5.00

92075

DAMPER,METER

25019-023

$4.29

92075A

DAMPER,METER

92075-1149

Unavailable

92075B

DAMPER,METER FITTING

92075-1150

Unavailable

92075C

DAMPER,METER

92075-1192

Unavailable

92075D

DAMPER RUBBER

92075-1255

$10.14

92075E

DAMPER RUBBER

92075-1256

Unavailable

92075F

DAMPER RUBBER,METER

92075-1265

$13.02

110

BOLT-UPSET 6X14

112B0614

$1.49

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
