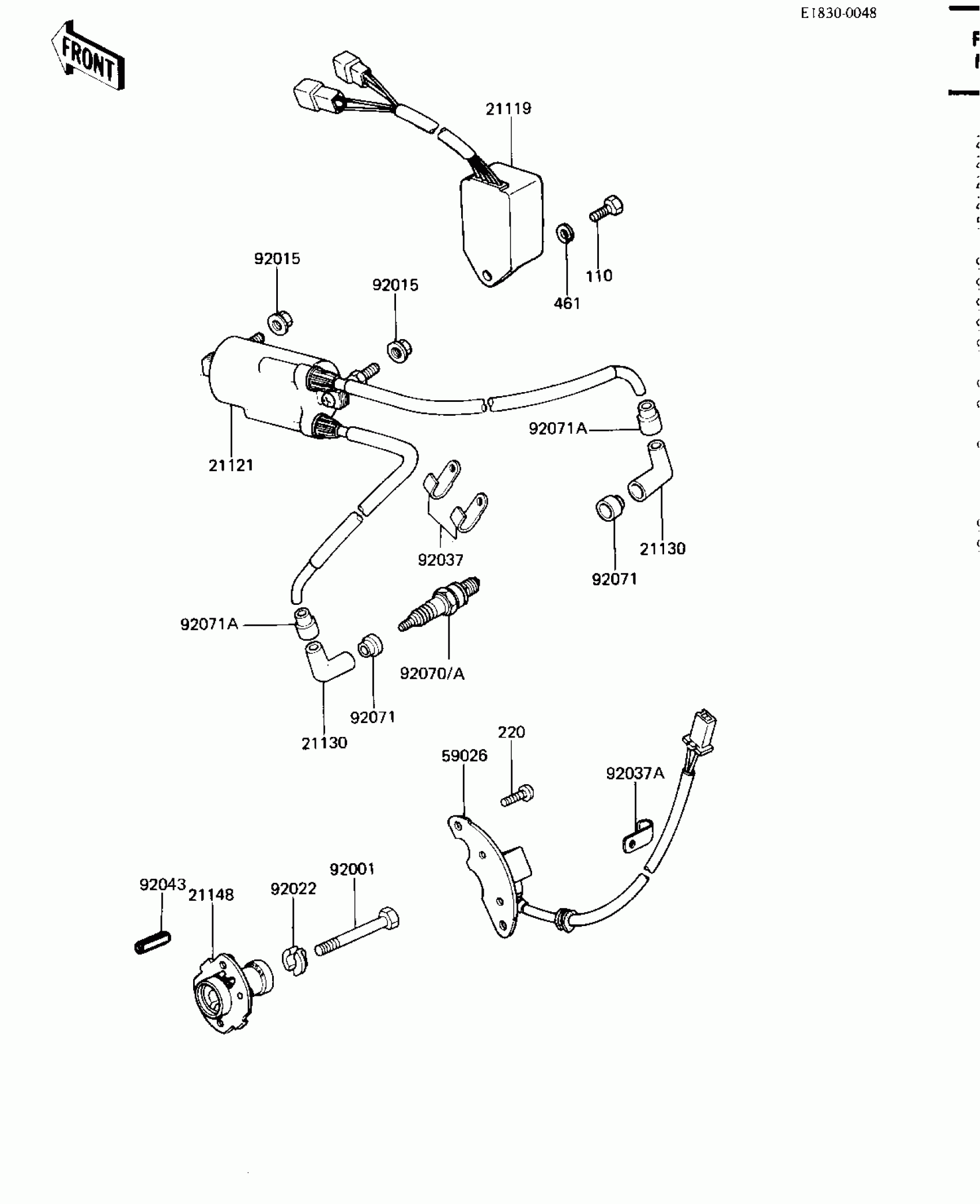

Kawasaki CSR Twin IGNITION Diagram

#

Description
Price

21119

IGNITER

21119-1022

Unavailable

21121

COIL-IGNITION

21121-1041

Unavailable

21130

CAP-SPARK PLUG,RTFM20

21130-1007

Unavailable

21148

GOVERNOR-BREAKER

21148-1024

$129.09

59026

COIL-PULSING

59026-1010

Unavailable

92001

BOLT,8X63

92001-1397

$5.43

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92022

WASHER,BREAKER GOVERNOR

92022-244

$14.09

92037

CLAMP,WIRING HARNESS

21126-008

$4.73

92037A

CLAMP,WIRING HARNESS

21126-008

$4.73

92043

PIN-SPRING,4X8

555A0408

$3.92

92070

SPARK PLUG B6ES

B6ES

$3.62

92071

GROMMET,PLUG CAP

21131-004

$10.97

92071A

GROMMET,HIGH TENSION

21132-005

$4.26

110

BOLT-UPSET,6X16

112G0616

Unavailable

220

SCREW-PAN-CROS

220B0512

$0.42

461

WASHER SPRING 6MM

461F0600

Unavailable
