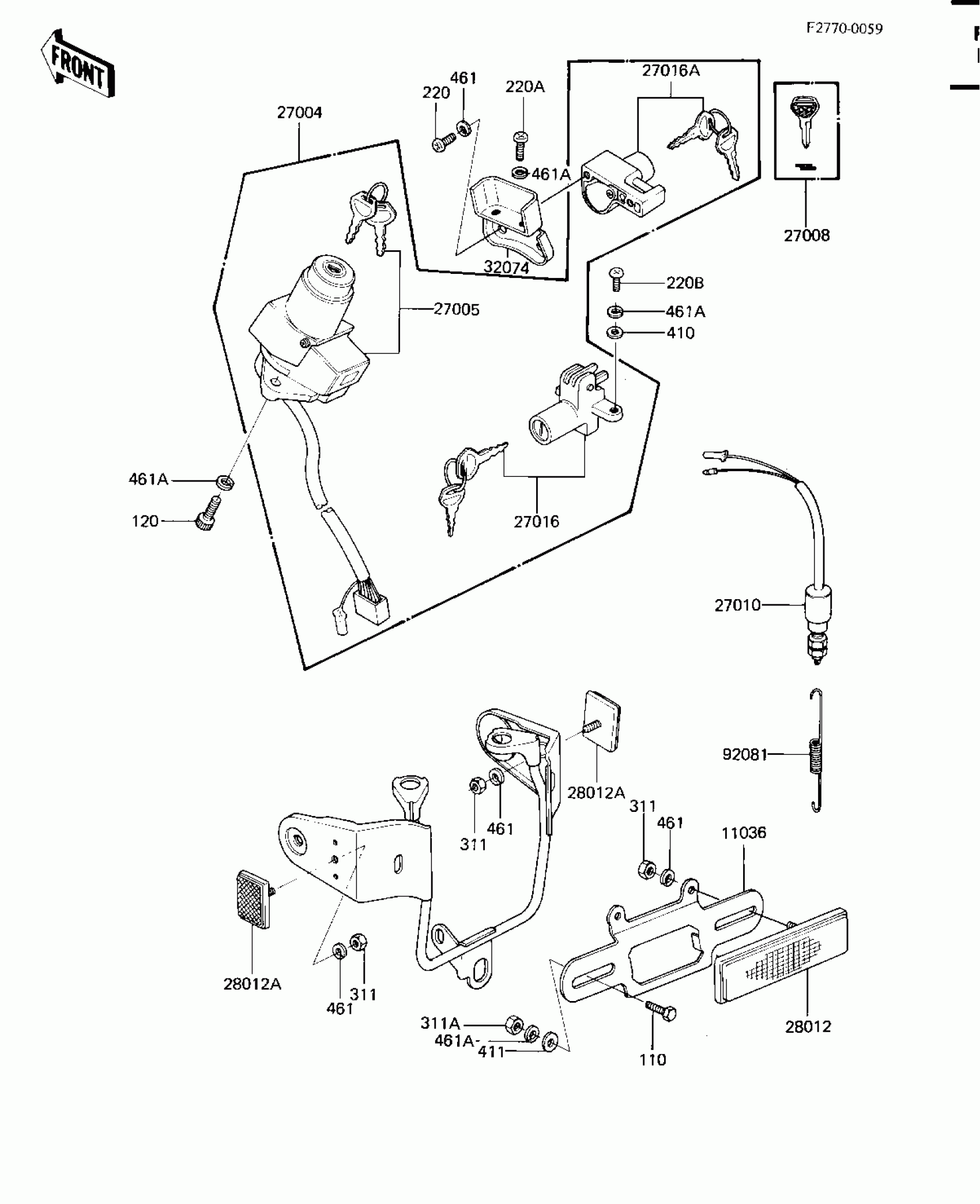

Kawasaki CSR Twin IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

11036

BRACKET,REFLECTOR,RR

11036-1150

Unavailable

27004

SWITCH-ASSY

27004-5150

$586.30

27005

SWITCH-ASSY-IGNITION

27005-5024

$196.81

27008

KEY-LOCK,BLANK

27008-1103

$16.44

27010

SWITCH-BRAKE LAMP

27010-015

Unavailable

27016

LOCK-ASSY,SEAT

27016-5010

Unavailable

27016A

LOCK ASSY,HELMET

27016-5038

Unavailable

28012

REFLECTOR-REFLEX,RR

28012-1005

$28.89

28012A

REFLECTOR-REFLEX,FR

28012-1009

Unavailable

32074

BRACKET-LOCK,HELMET L

32074-1024

Unavailable

92081

SPRING,BRAKE LAMP SWITCH

27011-007

$4.76

110

BOLT-UPSET,6X12

112G0612

Unavailable

120

BOLT-SOCKET,6X16

120S0616

Unavailable

220

SCREW PAN HEAD 5X8

220B0508

Unavailable

220A

SCREW PAN HEAD 6X12

220B0612

Unavailable

220B

SCREW-PAN-CROS,6X14

220B0614

$1.14

311

NUT-HEX

311B0500

$0.47

311A

NUT 6MM

311B0600

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable
