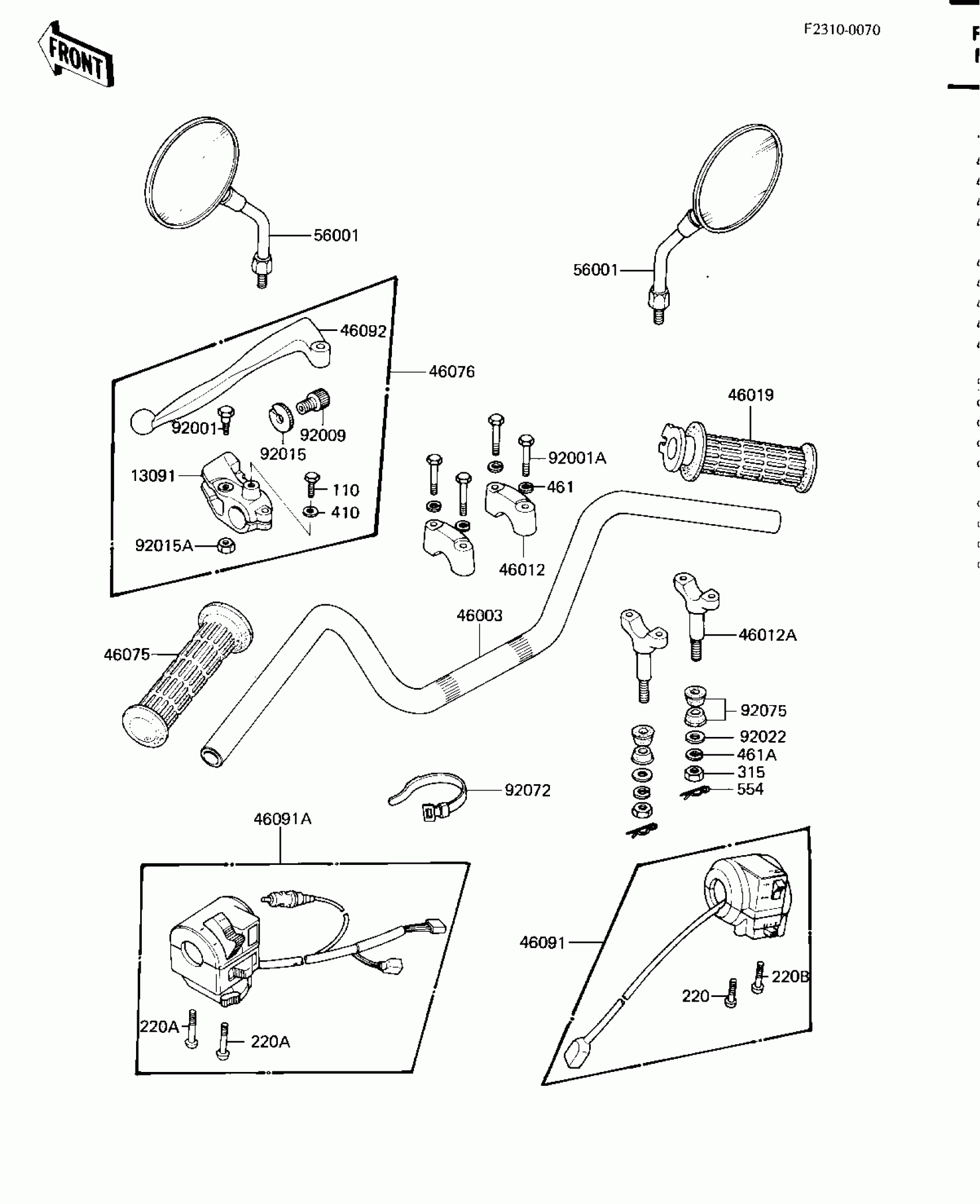

Kawasaki CSR Twin HANDLEBAR Diagram

#

Description
Price

13091

HOLDER,CLUTCH LEVER,F.BLACK

13091-1046

$50.69

46003

HANDLEBAR

46003-1098

$238.66

46012

HOLDER-HANDLE,UPP

46012-008

$37.74

46012A

HOLDER-HANDLE,LWR

46012-010

Unavailable

46019

GRIP-ASSY,THROTTLE

46019-1015

$51.06

46075

GRIP,LH

46075-1022

$16.96

46076

LEVER-ASSY-GRIP,CLUTCH

46076-1019

$57.14

46091

HOUSING-ASSY-CNTRL,RH

46091-1155

Unavailable

46091A

HOUSING-ASSY-CONTROL

46091-1179

$131.74

46092

LEVER-GRIP,CLUTCH

46092-1005

$28.37

56001

MIRROR-ASSY

56001-1340

Unavailable

92001

BOLT,CLUTCH LEVER

92001-1075

$8.19

92001A

BOLT 8X38

92001-1405

$16.50

92009

SCREW,CABLE ADJUST,8MM

46055-003

$16.33

92015

NUT,CABLE ADJUST LOCK,8MM

46056-005

$8.86

92015A

NUT,LOCK,6MM

92019-008

$4.26

92022

WASHER-HANDLEBAR FIT

92022-196

Unavailable

92072

BAND,L=123

92072-030

$5.00

92075

DAMPER RUBBER,HANDLE

92075-275

$11.03

110

BOLT,6X22

110N0622

Unavailable

220

SCREW PAN HEAD 5X30

220B0530

Unavailable

220A

SCREW-PAN-CROS

220B0535

$2.76

220B

SCREW-PAN-CROS

220B0540

Unavailable

315

NUT-HEX-FINE,10MM

315B1000

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$0.96

461

WASHER SPRING 10MM

461F1000

Unavailable

461A

WASHER SPRING 10MM

461F1000

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable
