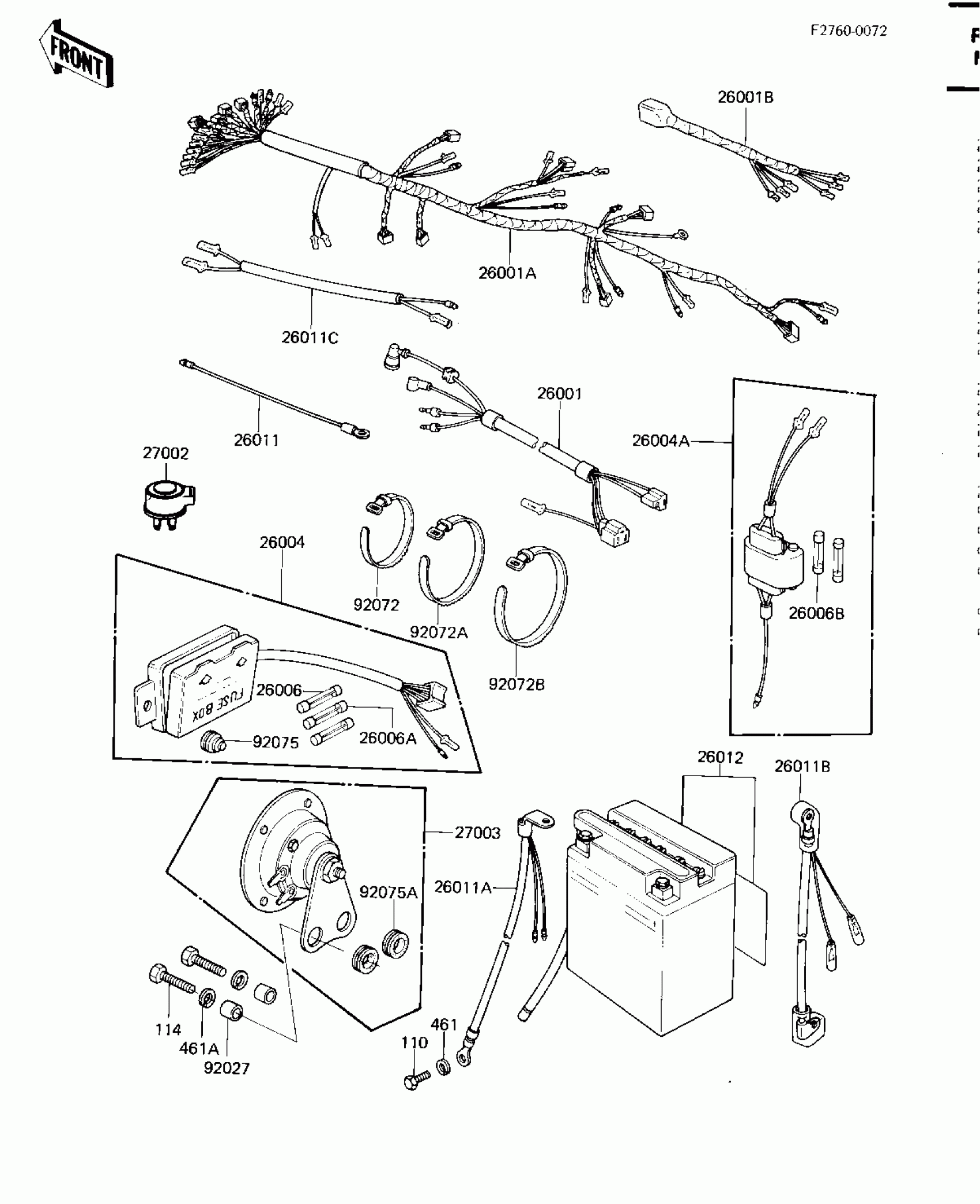

Kawasaki CSR Twin CHASSIS ELECTRICAL EQUIPMENT Diagram

Description

Price

26001

WIRING HARNESS

26001-1024

Unavailable

26001A

HARNESS,MAIN

26001-1272

$219.43

26001B

WIRING HARNESS,REAR

26002-063

$27.49

26004

FUSE-ASSY

26004-035

Unavailable

26004A

FUSE-ASSY,ACCESSORY

26004-1014

$71.61

26006

FUSE,10A,L=25

26006-003

$3.61

26006A

FUSE,20A,L=25

26006-005

$3.86

26006B

FUSE,GLASS TUBE,6.4X30,10A,YEL

26006-1002

$3.89

26011

LEAD WIRE,SIGNAL LAMP

26011-063

$7.24

26011A

WIRE-LEAD,BATTERY

26011-1146

Unavailable

26011B

WIRE-LEAD

26011-1131

$22.27

26011C

WIRE-LEAD

26011-1132

$7.93

26012

YUA BAT YB14L-A2

26012-1008

$84.21

27002

RELAY-ASSY,TURN SIGNAL

27002-011

$103.40

27003

HORN

27003-074

$83.27

92027

COLLAR,HORN FITTING

92027-271

$2.37

92072

BAND,L=123

92072-030

$3.81

92072A

BAND,L=149

92072-031

$3.82

92072B

BAND,L=186

92072-056

$3.81

92075

DAMPER,FUSE

92075-279

Unavailable

92075A

DAMPER

92075-294

$3.68

110

BOLT-UPSET,6X12

112G0612

Unavailable

114

BOLT-SMALL-UPSET 8X25

115G0825

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable

461A

WASHER SPRING 8MM

461F0800

Unavailable
