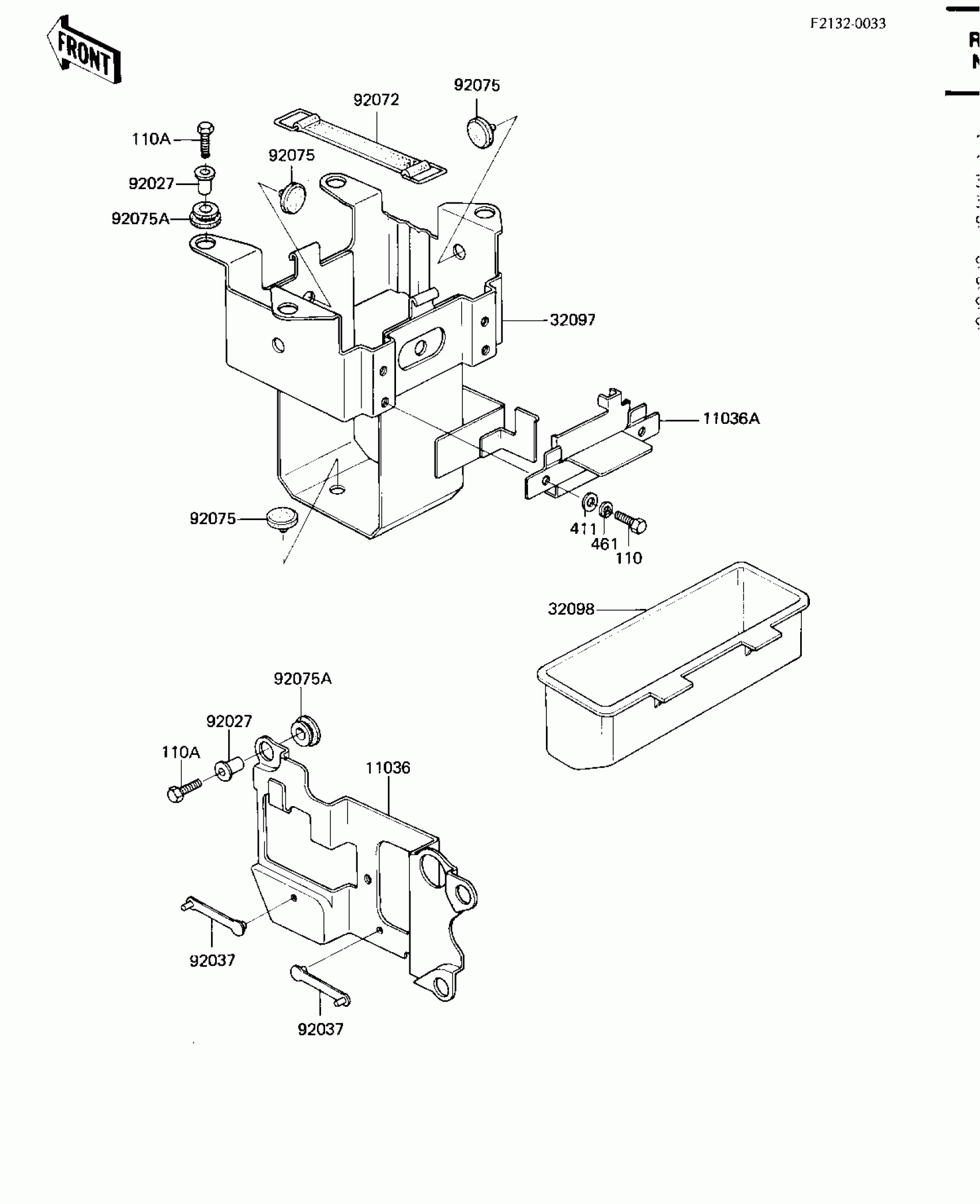

Kawasaki CSR Twin BATTERY CASE/TOOL CASE Diagram

Description

Price

11036

BRACKET-A

11036-1143

Unavailable

11036A

BRACKET-A

11036-1161

Unavailable

32097

CASE-BATTERY

32097-1044

$59.59

32098

CASE,TOOL

32098-028

Unavailable

92027

COLLAR

92027-194

$4.18

92037

CLAMP,SPEED,L=43

92037-1290

$7.25

92072

BAND,L=100

92072-071

$9.24

92075

DAMPER,RUBBER

92075-078

$3.35

92075A

DAMPER

92075-277

$1.90

110

BOLT-UPSET,6X12

112G0612

Unavailable

110A

BOLT 6X22

112B0622

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 6MM

461F0600

Unavailable
