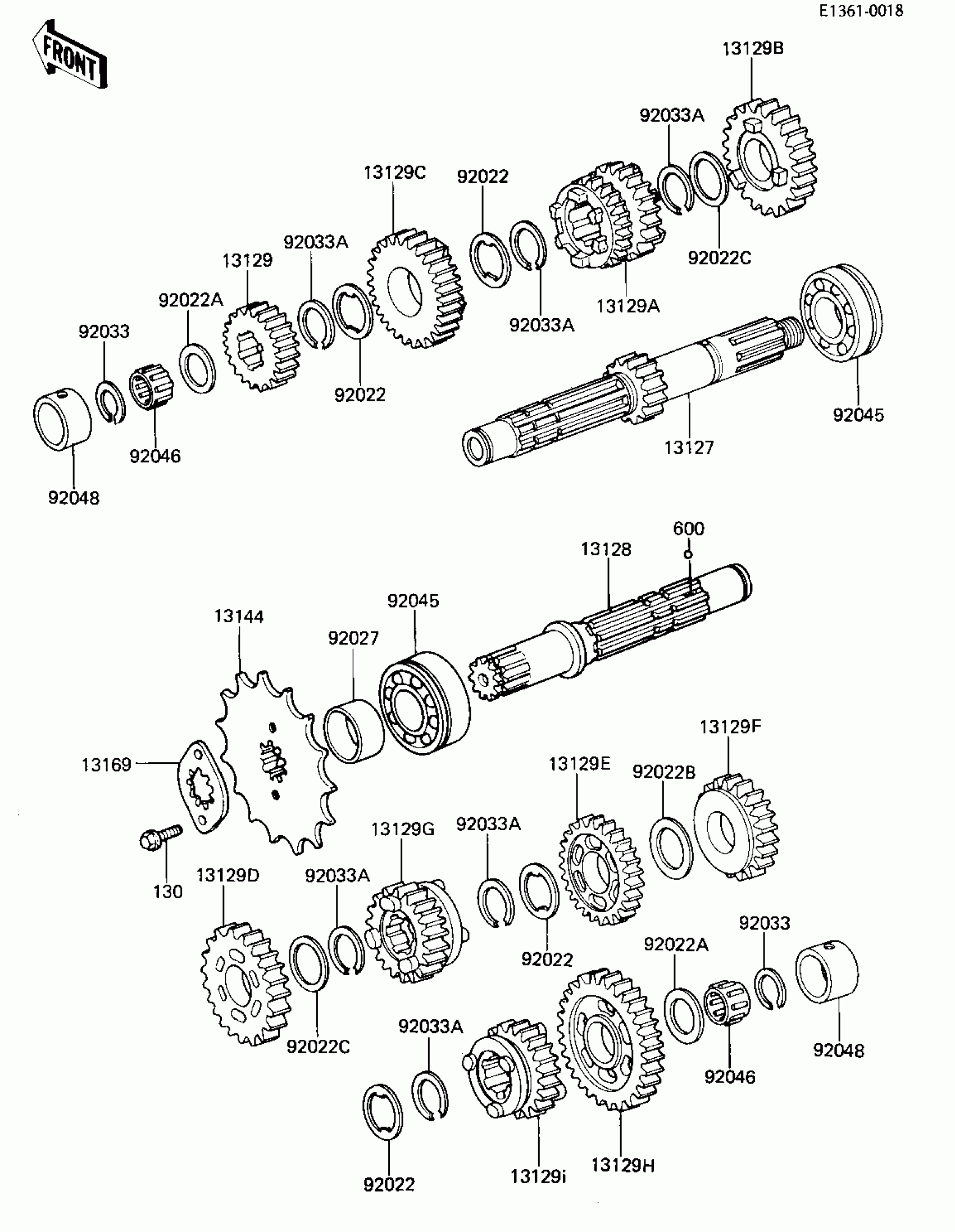

Kawasaki CSR TRANSMISSION Diagram

#

Description
Price

13127

SHAFT,DRIVE,15T

13127-1009

Unavailable

13128

SHAFT,OUTPUT

13128-1032

Unavailable

13129

GEAR,INPUT 2ND,19T

13129-1086

$103.55

13129A

GEAR,INPUT 3RD&4TH,22T&25T

13260-1098

$139.46

13129B

GEAR,INPUT 5TH,27T

13129-1088

Unavailable

13129C

GEAR,INPUT TOP,28T

13129-1089

Unavailable

13129D

GEAR,OUTPUT 2ND,34T

13129-1091

Unavailable

13129E

GEAR,OUTPUT 3RD,31T

13129-1092

Unavailable

13129F

GEAR,OUTPUT 4TH,29T

13129-1093

Unavailable

13129G

GEAR,OUTPUT TOP,25T

13260-1099

$146.70

13129H

GEAR,OUTPUT LOW,39T

13129-1254

$159.69

13129I

GEAR,OUTPUT 5TH,27T

13260-1112

Unavailable

13144

SPROCKET-OUTPUT,ENG

13144-1046

Unavailable

13169

PLATE,SPROCKET

13270-1060

$6.69

92022

WASHER,TOOTHED,25.3X30X1

92022-1072

Unavailable

92022A

WASHER,20.5X30X1,STEEL

92022-112

$6.75

92022B

WASHER,25.5X38X1

92022-145

$7.22

92022C

WASHER,25.3X30X0.5

92022-159

$8.37

92027

COLLAR,ENG SPROCKET

92027-1322

$12.27

92033

RING-SNAP,20MM

92033-015

$3.25

92033A

RING-SNAP,24MM

92033-026

$6.70

92045

BEARING-BALL,#6205NX3

92045-1013

$19.72

92046

BEARING-NEEDLE,20R2513P

92046-044

$21.78

92048

RACE,NEEDLE BEARING

92048-1003

Unavailable

130

BOLT-FLANGED,6X12

130G0612

Unavailable

600

BALL-STEEL,5/32

600A0500

$0.68
