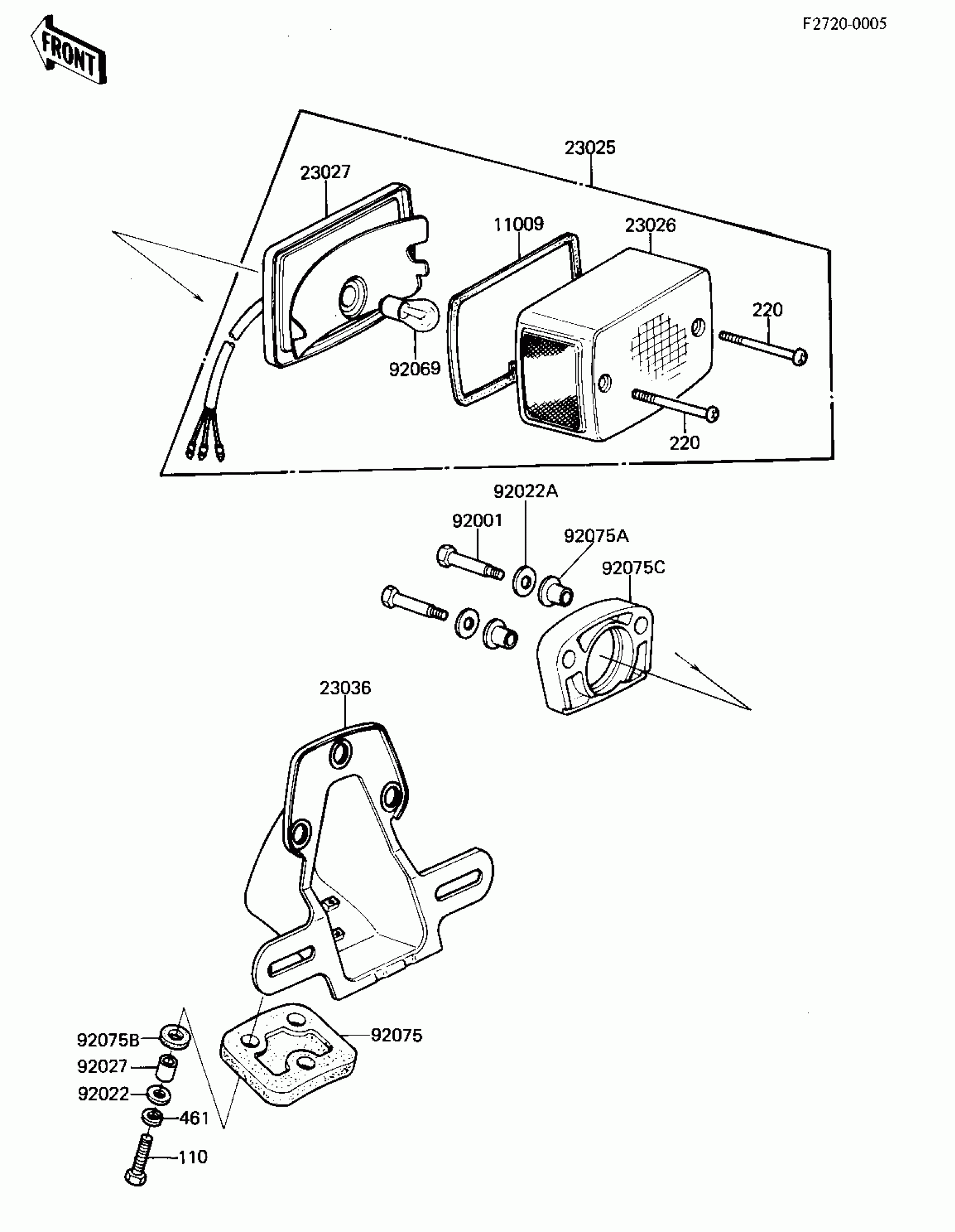

Kawasaki CSR TAILLIGHT Diagram

#

Description
Price

11009

GASKET,TAIL LAMP LENS

11009-1078

$7.44

23025

LAMP-TAIL

23025-1033

Unavailable

23026

LENS,TAIL LAMP

23026-1003

Unavailable

23027

BODY-COMP-TAIL LAMP

23027-1020

$96.26

23036

BRACKET-TAIL LAMP

23036-1024

$90.57

92001

BOLT,TAIL LAMP FITTNG

92001-1322

$6.80

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92022A

WASHER,8.5X20X1.6

92022-1561

$3.29

92027

COLLAR,6.8X10X14.5

92027-156

$3.81

92069

BULB,12V 27/8W

92069-059

$6.19

92075

DAMPER,TAIL LAMP

35039-004

$17.22

92075A

DAMPER

92075-1162

Unavailable

92075B

DAMPER,FENDER

92075-121

$3.49

92075C

DAMPER,TAIL LAMP

92075-1251

$23.08

110

BOLT-UPSET

112G0625

Unavailable

220

SCREW-PAN-CROS,4X40

220R0440

$5.27

461

WASHER SPRING 6MM

461F0600

Unavailable
