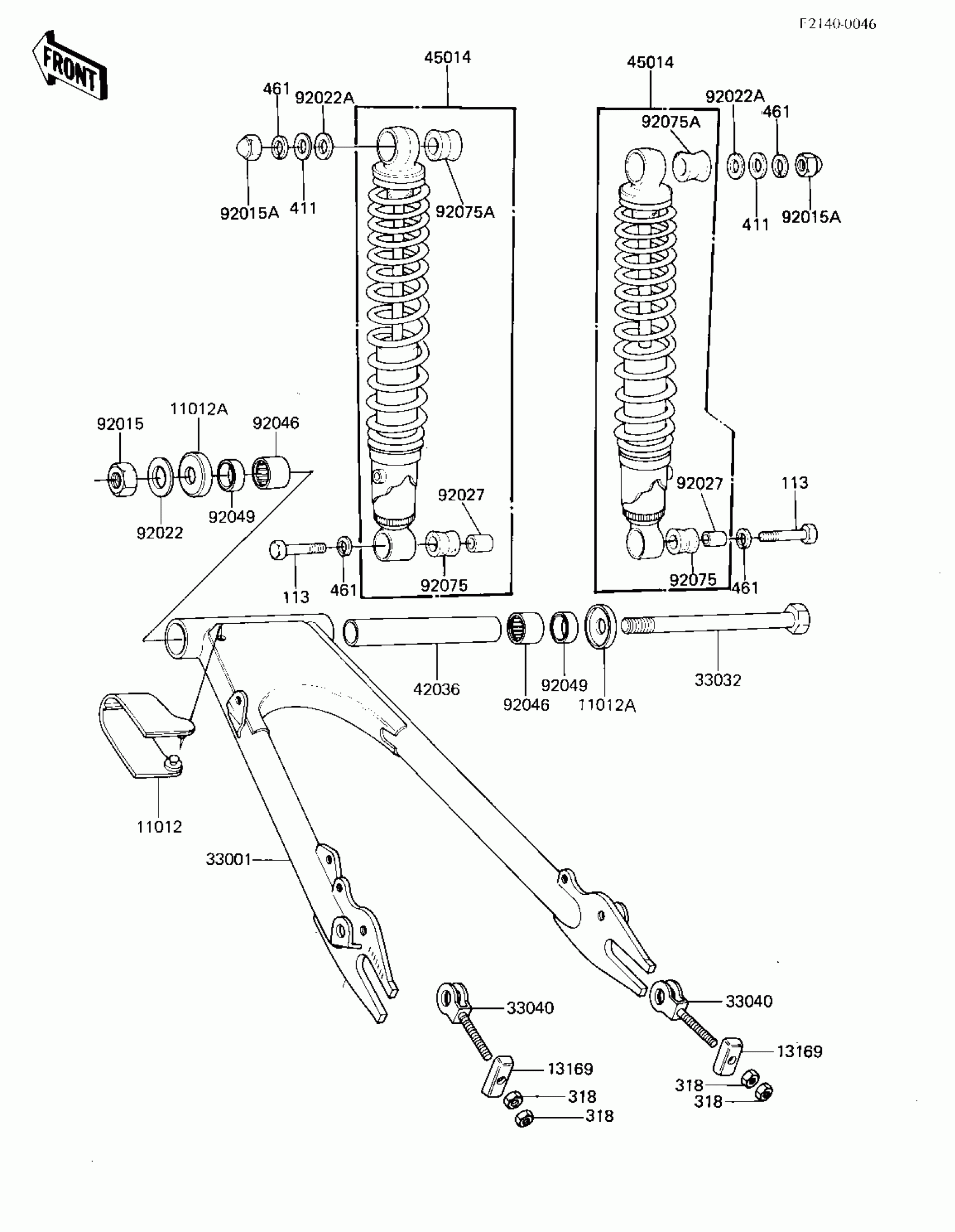

Kawasaki CSR SWING ARM/SHOCK ABSORBERS (KZ305-A2) Diagram

Description

Price

11012

GUARD,CHAIN,FR

55020-1063

Unavailable

11012A

CAP,SWING ARM

11012-1029

$20.53

13169

PLATE,CHAIN ADJUSTER

33041-002

Unavailable

33001

ARM-COMP-SWING

33001-1123

$275.29

33032

SHAFT-SWING ARM

33032-1002

$66.25

33040

ADJUSTER-CHAIN

33040-1016

$20.71

42036

SLEEVE,SWING ARM,14.1X22X204.5

42036-1021

$49.47

45014

SHOCKABSORBER,RR

45014-1219

$403.56

92015

NUT-LOCK,14MM

92019-011

Unavailable

92015A

NUT,CAP,10MM

92020-003

$4.88

92022

WASHER,14.2X30X3.2

92022-1067

$4.22

92022A

WASHER,10X22X3.2

92022-176

$4.25

92027

COLLAR,SHOCKABSORBER

45016-008

$9.58

92046

BEARING-NEEDLE,HK2216

92046-1115

Unavailable

92049

SEAL-OIL,MHA22284

92049-1059

$8.74

92075

DAMPER,SHOCKABSORBER

45017-012

$14.14

92075A

DAMPER,SHOCKABSORBER

45017-015

Unavailable

113

BOLT HEX HEAD 10X35

113N1035

Unavailable

318

NUT-HEX-SMALL,8MM

318B0800

$0.54

411

WASHER-PLAIN,10MM

411B1000

Unavailable

461

WASHER SPRING 10MM

461F1000

Unavailable
