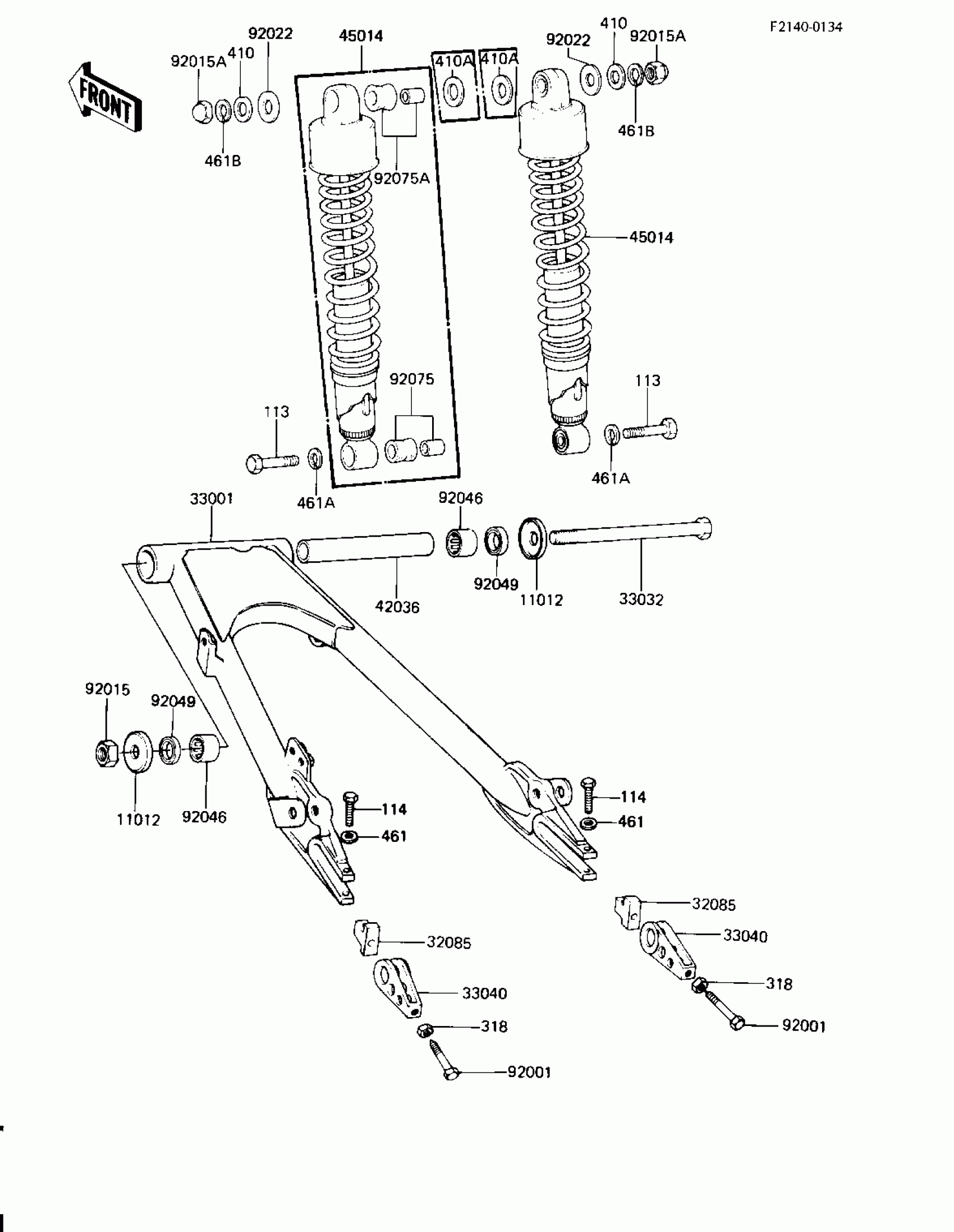

Kawasaki CSR SWING ARM/SHOCK ABSORBERS ('83 H3) Diagram

Description

Price

11012

CAP,SWING ARM

33035-009

Unavailable

32085

STOPPER,CHAIN ADJUST

33044-002

Unavailable

33001

ARM-COMP-SWING

33001-1094

$246.94

33032

SHAFT,SWING ARM

33032-050

Unavailable

33040

ADJUSTER,CHAIN

33040-056

Unavailable

42036

SLEEVE,SWING ARM

42036-1012

Unavailable

45014

SHOCKABSORBER,RR

45014-1196

$411.86

92001

BOLT,8X50

92001-1399

$7.94

92015

NUT-SELF LOCKING

92019-012

$24.14

92015A

NUT,CAP,12MM

92020-014

$7.52

92022

WASHER,12.4X28X2.3

92022-1239

$3.34

92046

BEARING-NEEDLE,HK2216

92046-1115

Unavailable

92049

SEAL-OIL,MHA22284

92049-1059

$9.49

92075

DAMPER,SHOCKABSORBER,LWR

45017-019

$15.84

92075A

DAMPER,SHOCKABSORBER

92075-1141

$14.14

113

BOLT HEX HEAD 10X35

113N1035

Unavailable

114

BOLT-SMALL-UPSET

115G0835

Unavailable

318

NUT-HEX-SMALL,8MM

318B0800

$0.54

410

WASHER-PLAIN-SMALL,12MM

410B1200

Unavailable

410A

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

461

WASHER SPRING 8MM

461F0800

Unavailable

461A

WASHER SPRING 10MM

461F1000

Unavailable

461B

WASHER-SPRING,12MM

461F1200

Unavailable
