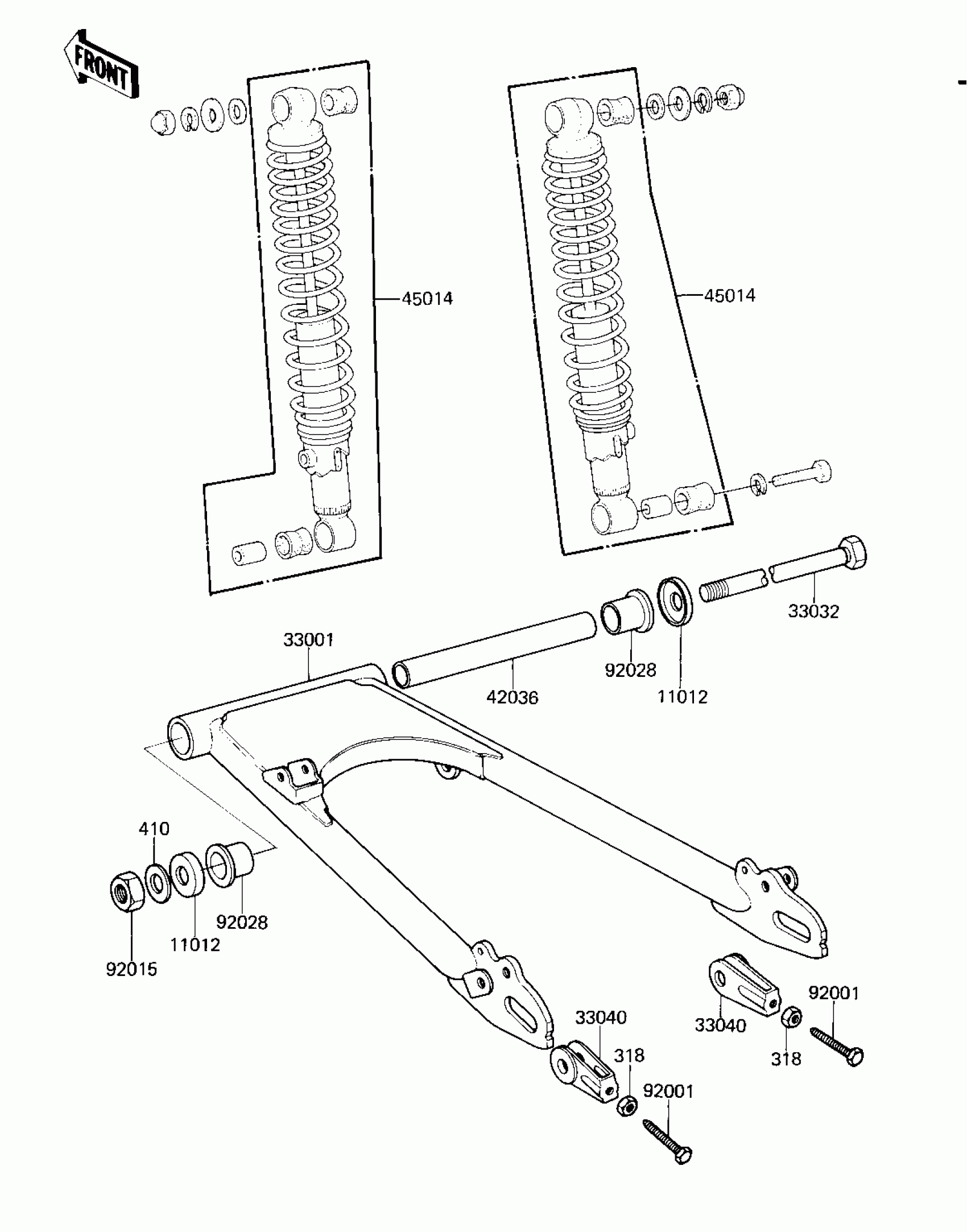

Kawasaki CSR SWING ARM/SHOCK ABSORBERS ('81 D2) Diagram

Description

Price

11012

CAP,SWING ARM

33035-010

Unavailable

33001

SWING ARM

33001-1049

$202.73

33032

SHAFT-SWING ARM PIVOT

33032-037

Unavailable

33040

ADJUSTER,CHAIN

33040-1001

$21.73

42036

SLEEVE,SWING ARM

42036-1004

Unavailable

45014

SHOCK ABSBR RR

45014-1090

$426.15

92001

BOLT,8X50

92001-1399

$7.94

92015

NUT-LOCK,14MM

92019-011

Unavailable

92015A

NUT,CAP,10MM

92020-003

$4.88

92022

WASHER,10X22X3.2

92022-176

$4.25

92027

COLLAR,SHOCKABSORBER

45016-008

$9.58

92028

BUSHING-SWING ARM

33033-009

$103.86

92075

DAMPER,SHOCKABSORBER

45017-012

$14.14

92075A

DAMPER,SHOCKABSORBER

45017-015

Unavailable

113

BOLT HEX HEAD 10X35

113N1035

Unavailable

318

NUT-HEX-SMALL,8MM

318B0800

$0.54

410

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

411

WASHER-PLAIN,10MM

411B1000

Unavailable

461

WASHER SPRING 10MM

461F1000

Unavailable
