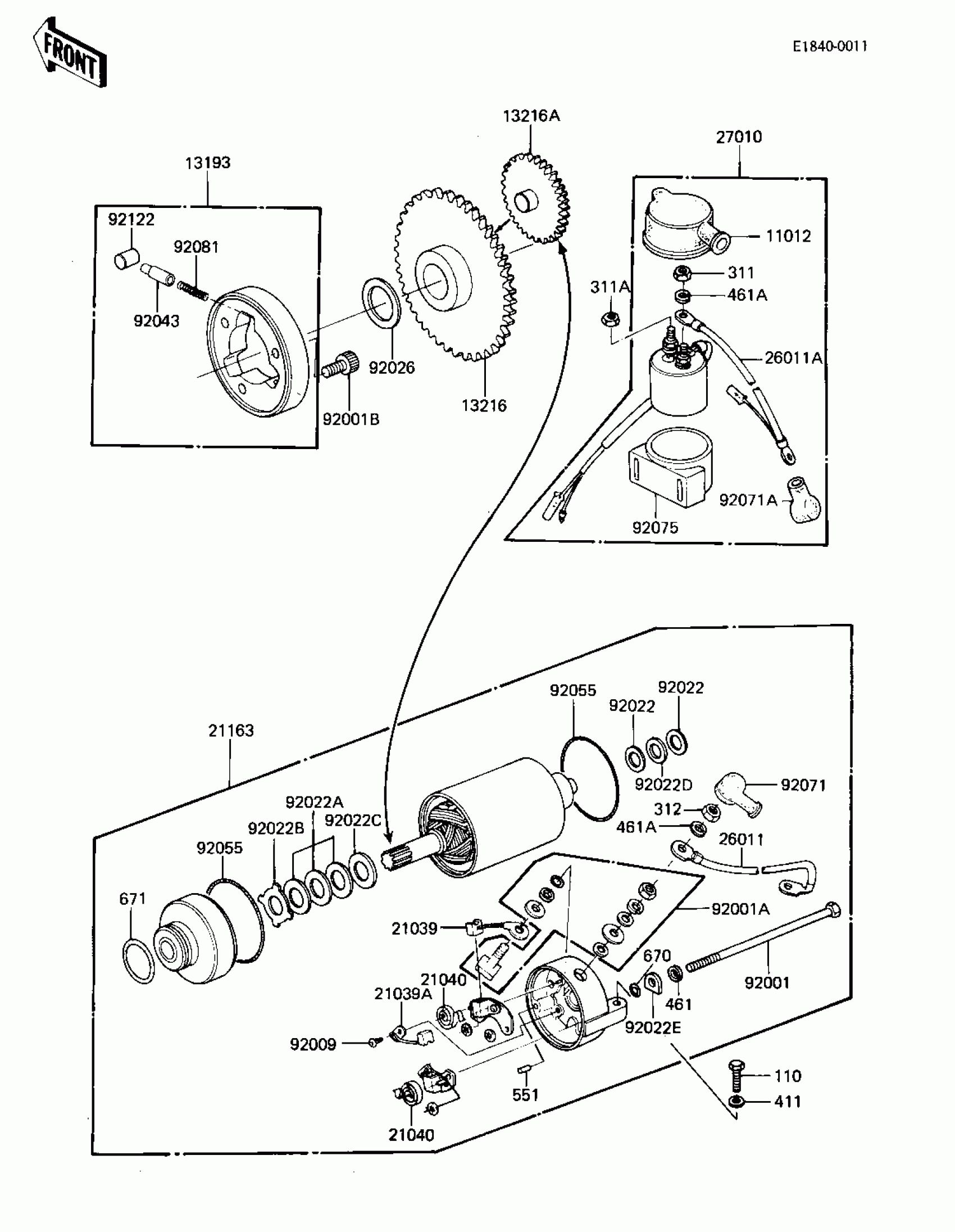

Kawasaki CSR STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

11012

CAP,MAGNETIC SWITCH

21141-004

Unavailable

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$104.26

13216

GEAR,ONEWAY CLUTCH

16085-1032

Unavailable

13216A

GEAR-COMP,STARTER IDLE

13216-1009

Unavailable

21039

BRUSH,CARBON(+)

21039-1001

$35.15

21039A

BRUSH,CARBON(-)

21039-1002

Unavailable

21040

SPRING-BRUSH

21040-1001

Unavailable

21163

STARTER-ELECTRIC

21163-1199

$474.87

26011

WIRE-LEAD,STARTER MOTOR

26011-1049

$36.43

26011A

WIRE-LEAD,MAGNETIC SWITCH

26011-1128

$66.85

27010

SWITCH,MAGNETIC

27010-1050

Unavailable

92001

BOLT,PAN HEAD,5X108.5

92001-1156

$5.80

92001A

BOLT,TERMINAL

92001-1204

$19.19

92001B

BOLT-SOCKET,8X16

120P0816

Unavailable

92009

SCREW,TAPPING,3.5X8

92009-1058

$1.88

92022

WASHER,9.1X18X0.2

21025-011

$4.67

92022A

WASHER,THRUST

92022-1129

$3.15

92022B

WASHER,THRUST SUPPORT

92022-1130

Unavailable

92022C

WASHER,BAKELITE

92022-1131

$5.75

92022D

WASHER,9.1X18X0.8

92022-1132

$5.42

92022E

WASHER,LOCK,T=3.2

92022-1133

$2.08

92026

SPACER,22X35.5X1.0

92026-092

$11.92

92043

PIN

92043-132

$4.67

92055

RING-O

92055-1042

Unavailable

92071

GROMMET,STARTER TERMINAL

21017-017

$7.18

92071A

GROMMET,MAGNETIC SWITCH

21017-023

$16.98

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92081

SPRING,COIL

92081-159

$2.72

92122

ROLLER

92122-006

$4.67

110

BOLT-UPSET,6X20

112G0620

Unavailable

311

NUT 6MM

311B0600

Unavailable

311A

NUT-HEX,6MM

311G0600

Unavailable

312

NUT 6MM

312B0600

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 6MM

461F0600

Unavailable

551

PIN-DOWEL,3X6

551A0306

$1.19

670

O RING,5MM

670B1505

$2.49

671

O RING,25MM

671B2525

$3.81
