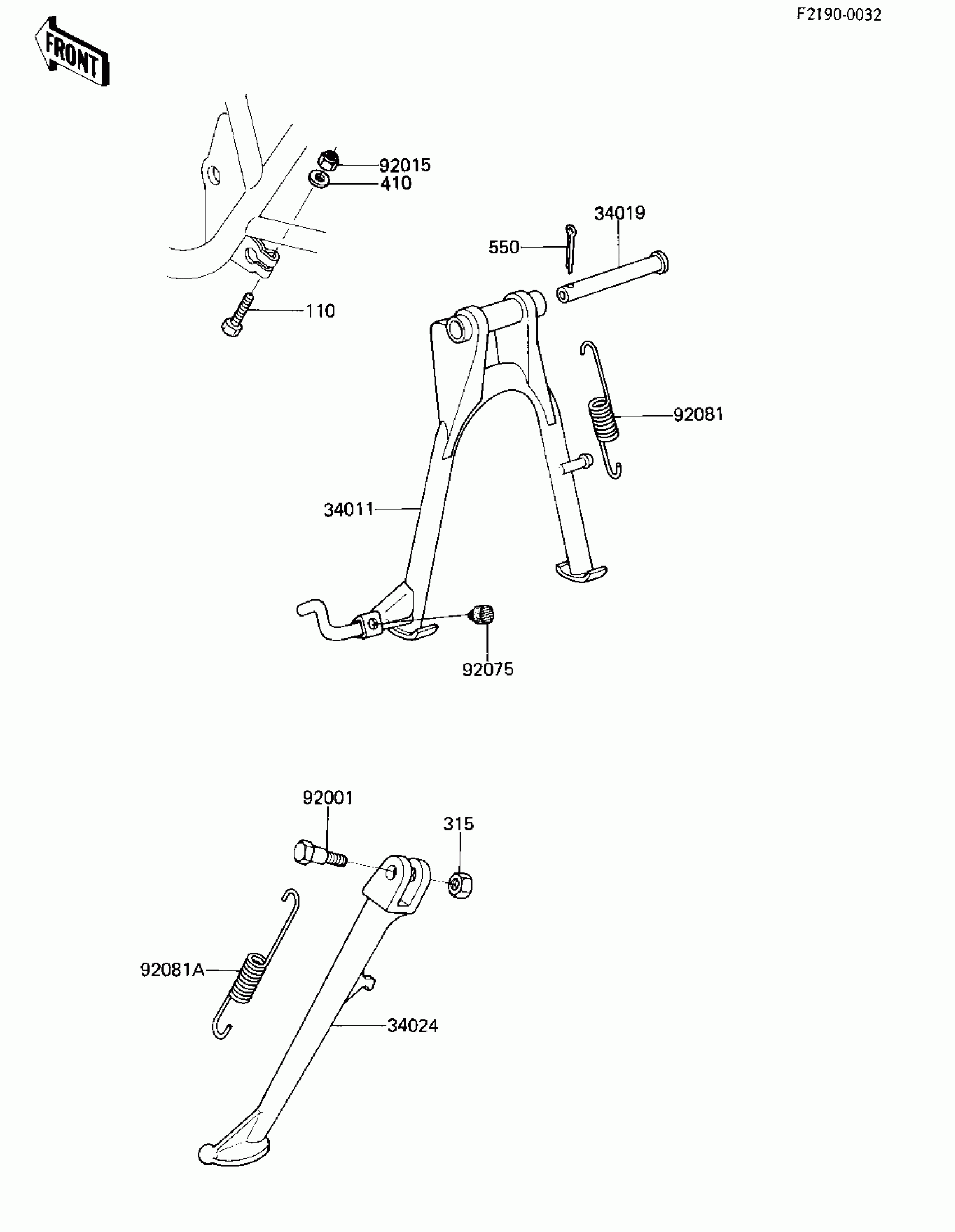

Kawasaki CSR STANDS Diagram

Description

Price

34011

STAND-CENTER

34011-1140

$133.23

34019

SHAFT-STAND,CNT

34019-015

$16.32

34024

STAND-SIDE

34024-1091

$65.10

92001

BOLT,SIDE STAND

92003-157

$7.86

92015

NUT,LOCK,6MM

92019-008

$3.36

92075

DAMPER

92075-015

$3.97

92081

SPRING,STAND,CNT

34023-016

$15.59

92081A

SPRING,STAND

34025-005

$6.03

110

BOLT 6X35

110R0635

Unavailable

315

NUT-HEX-FINE,10MM

315B1000

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.19

550

PIN-COTTER,3.0X30

550D3030

$2.08
