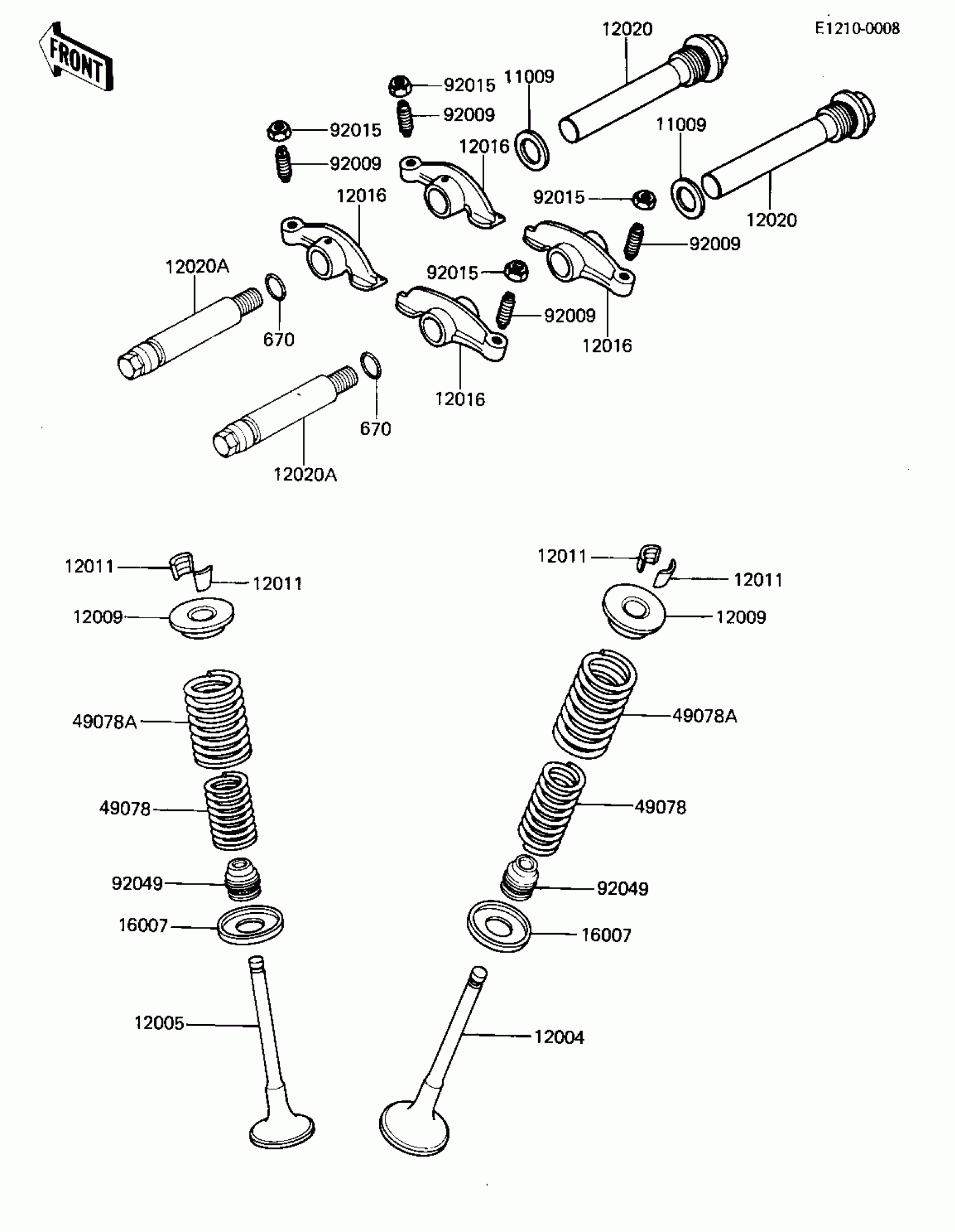

Kawasaki CSR ROCKER ARMS/VALVES Diagram

Description

Price

11009

GASKET,16X19.7X1.5

11009-1106

$5.81

12004

VALVE-INTAKE

12004-1003

Unavailable

12005

VALVE-EXHAUST

12005-1003

Unavailable

12009

RETAINER-VALVE SPRING

12009-1001

$10.56

12011

COLLET,SPLIT KEEPER

12011-1002

$4.58

12016

ARM-ROCKER

12016-1002

Unavailable

12020

SHAFT-ROCKER,RH

12020-1003

Unavailable

12020A

SHAFT-ROCKER,LH

12020-1006

Unavailable

16007

SEAT-SPRING,THROTTLE VALVE

16007-1012

Unavailable

49078

SPRING-ENGINE VALVE,INNER

12007-1001

$10.46

49078A

SPRING-ENGINE VALVE,OUTER

12007-1002

$14.24

92009

SCREW,6MM

92009-1032

Unavailable

92015

NUT,6MM

92016-061

$3.57

92049

SEAL-OIL,RVC2-5.5X8.5X8.3

92049-1062

$3.90

670

O RING,10MM

670D1510

$3.57
