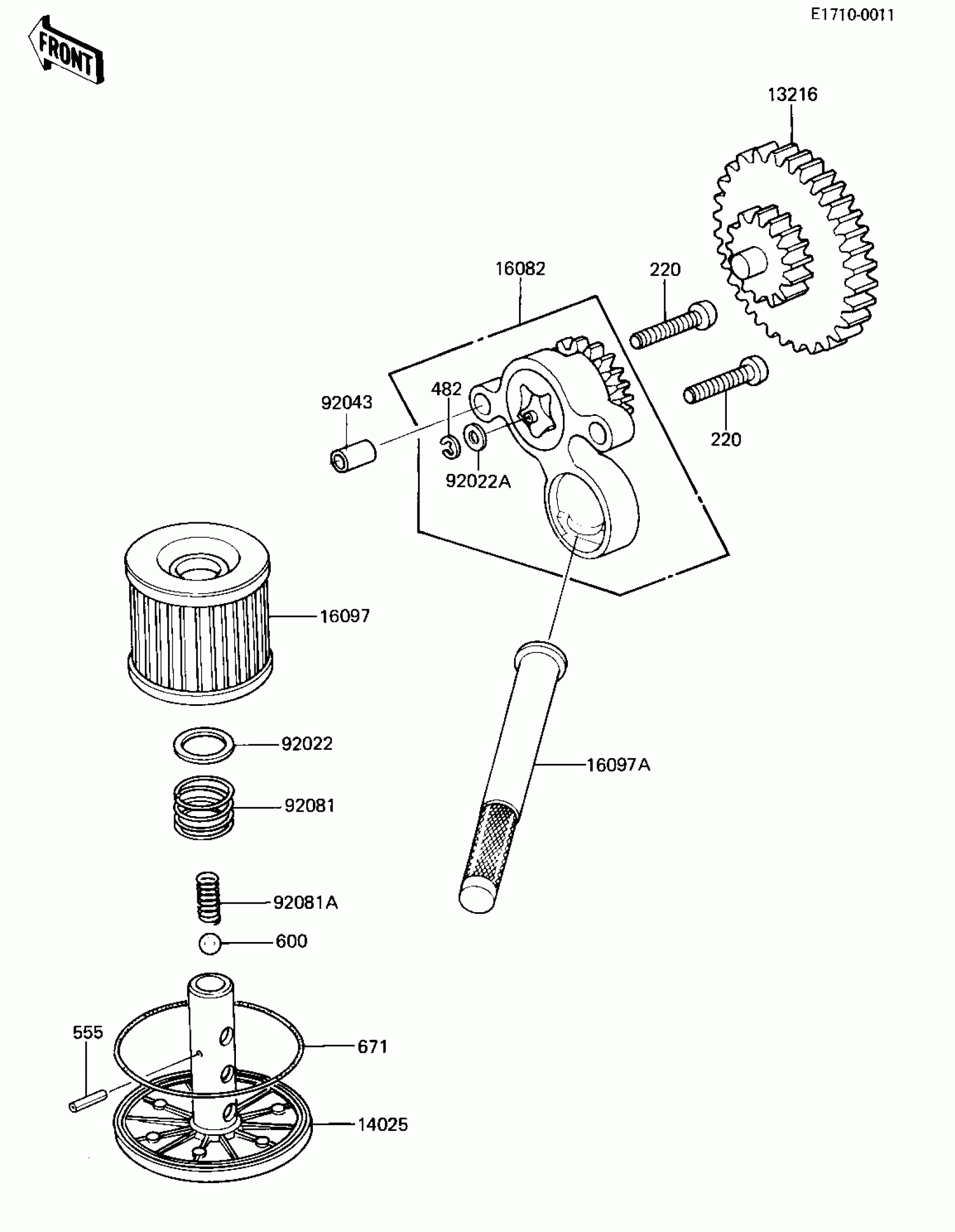

Kawasaki CSR OIL PUMP/OIL FILTER Diagram

Description

Price

13216

GEAR-COMP,OIL PUMP

13216-1031

Unavailable

14025

COVER,OIL FILTER

14025-1052

Unavailable

16082

PUMP-ASSY-OIL

16082-1007

$180.45

16097

FILTER-ASSY-OIL

16097-1002

$11.78

16097A

FILTER-ASSY-OIL

16097-1003

Unavailable

92022

WASHER,19.5X26X0.8

41065-004

Unavailable

92022A

WASHER,5.5X9X0.6T

92022-1146

$3.93

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92081

SPRING,OIL FILTER

92081-1018

$3.54

92081A

SPRING

92081-109

$10.85

220

SCREW PAN HEAD 6X30

220B0630

Unavailable

482

CIRCLIP SELD BEM FIT

482K4000

$1.03

555

PIN-SPRING,2X14

555A0216

Unavailable

600

BALL-STEEL,3/8"

600A1200

$1.14

671

O RING,65MM

671B2565

$6.75
