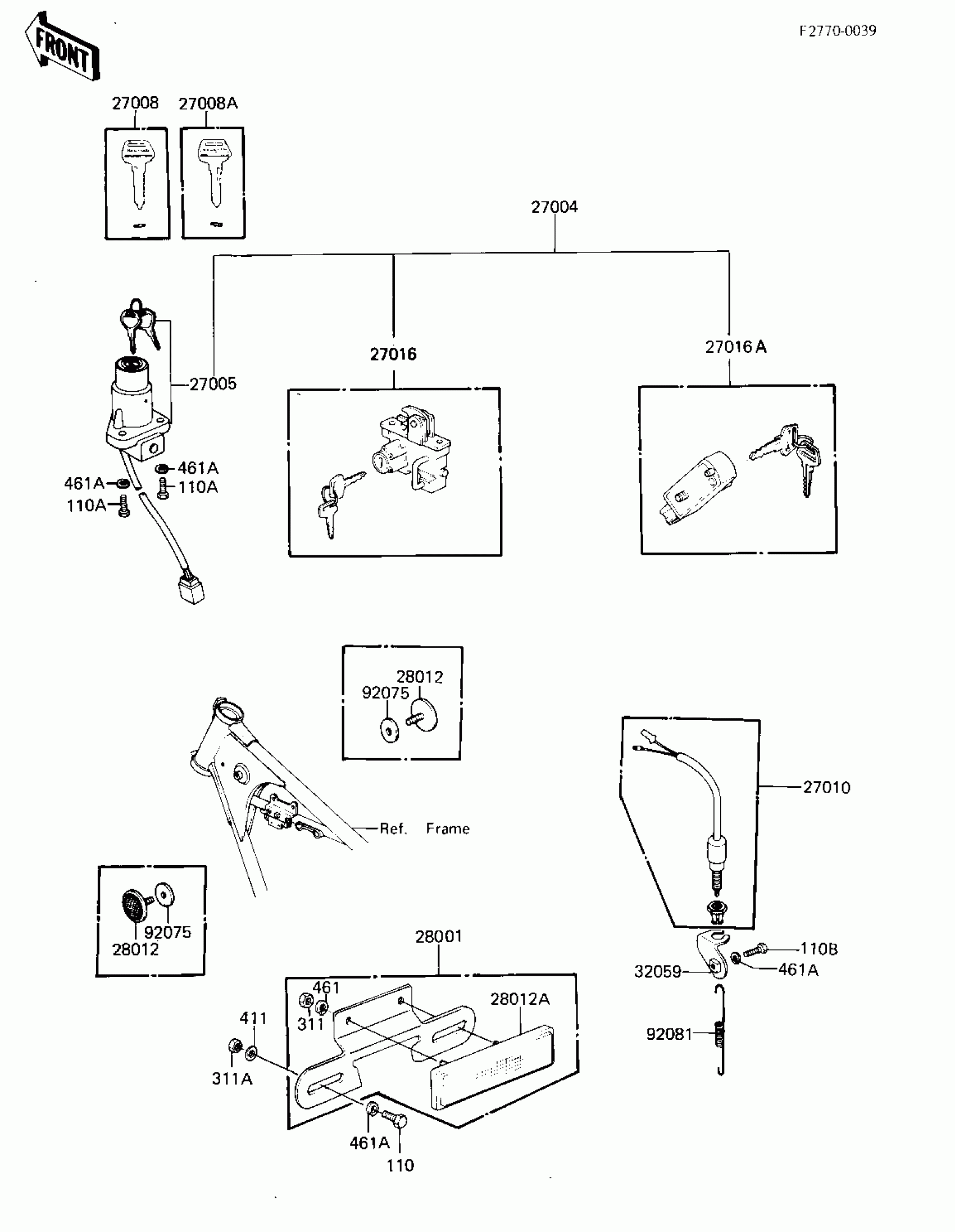

Kawasaki CSR IGNITION SWITCH/LOCKS/REFLECTORS Diagram

Description

Price

27004

LOCK-ASSY,IGNITION

27004-5117

$193.87

27005

SWITCH-ASSY-IGNITION

27005-1027

$166.84

27008

KEY-LOCK,BLANK,#A

27008-1034

$17.63

27008A

KEY-LOCK,BLANK,#B

27008-1035

Unavailable

27010

SWITCH,BRAKE LAMP

27010-025

$27.60

27016

LOCK-ASSY,SEAT&HELMET

27016-5028

Unavailable

27016A

LOCK-ASSY,HELMET

27016-5029

$43.25

28001

REFLECTOR-ASSY-REFLEX

28001-1012

$58.72

28012

REFLECTOR-REFLEX,FR

28012-016

$21.56

28012A

REFLECTOR-REFLEX,RR

28012-1005

Unavailable

32059

BRACKET-SWITCH,BRAKE LAMP

32059-1006

$13.10

92075

DAMPER,REFLECTOR

92094-011

$4.08

92081

SPRING,BRAKE LAMP SWITCH

27011-011

$6.75

110

UNAVAILABLE IN PRICE BOOK

11080612

Unavailable

110A

BOLT-UPSET,6X16

112G0616

Unavailable

110B

BOLT-UPSET

112G0618

Unavailable

311

NUT-HEX

311B0500

$0.51

311A

NUT 6MM

311B0600

Unavailable

411

WASHER PLAIN 6MM

411B0600

Unavailable

461

WASHER SPRING 5MM

461F0500

Unavailable

461A

WASHER SPRING 6MM

461F0600

Unavailable
