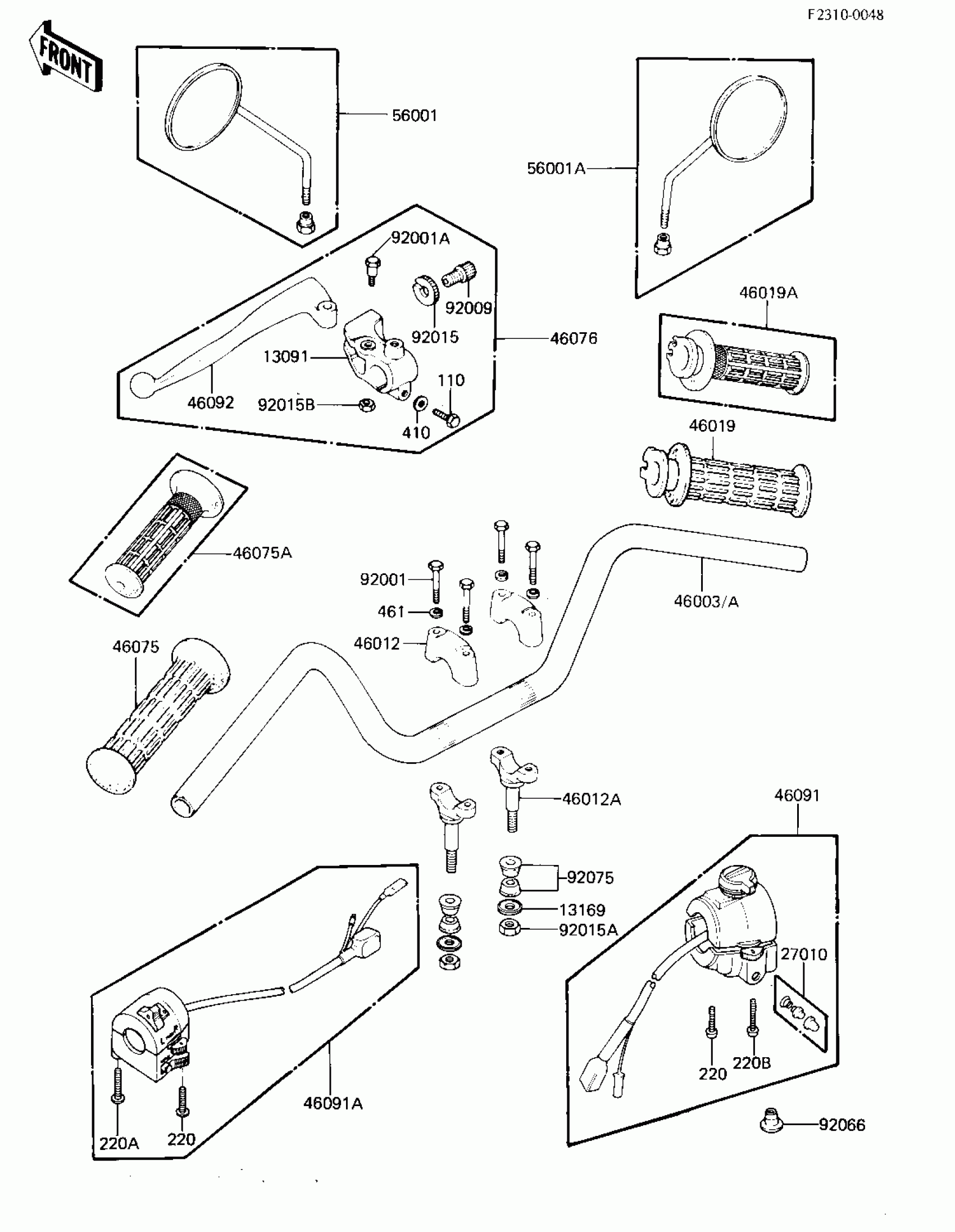

Kawasaki CSR HANDLEBAR Diagram

#

Description
Price

13091

HOLDER,CLUTCH LEVER

46094-017

Unavailable

13169

PLATE,HANDLE HOLDER

46016-003

Unavailable

27010

SWITCH,PUSH BUTTON

27010-1009

$7.01

46003A

HANDLE

46003-1088

$133.35

46012

HOLDER-HANDLE,UPP

46012-008

$33.69

46012A

HOLDER-HANDLE,LWR

46012-010

$31.36

46019A

GRIP-ASSY,THROTTLE

46019-1017

$42.98

46075A

GRIP,LH

46075-1022

$12.80

46076

LEVER ASSY,CLUTCH

46076-052

$104.73

46091

HOUSING ASSY,R.H

46091-1039

Unavailable

46091A

HOUSING-ASSY-CONT,LH

46091-1187

$110.29

46092

LEVER-GRIP,CLUTCH

46092-023

$36.65

56001

MIRROR-ASSY,LH

56001-1007

Unavailable

56001A

MIRROR-ASSY,RH

56001-1008

Unavailable

92001

BOLT 8X38

92001-1405

$12.52

92001A

BOLT,HEX HEAD

92007-047

Unavailable

92009

SCREW,CABLE ADJUST,8MM

46055-003

$12.40

92015

NUT,CABLE ADUST NUT

46056-007

Unavailable

92015A

NUT,10MM

92015-1429

$5.15

92015B

NUT,LOCK,6MM

92019-008

$3.12

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92075

DAMPER,HANDLE HOLDER

92075-039

$3.57

110

BOLT HEX HEAD 6X25

110N0625

Unavailable

220

SCREW PAN HEAD 5X30

220B0530

Unavailable

220A

SCREW-PAN-CROS

220B0535

$2.80

220B

SCREW-PAN-CROS

220B0540

Unavailable

410

WASHER-PLAIN-SMALL,6MM

410B0600

$1.03

461

WASHER SPRING 8MM

461F0800

Unavailable
