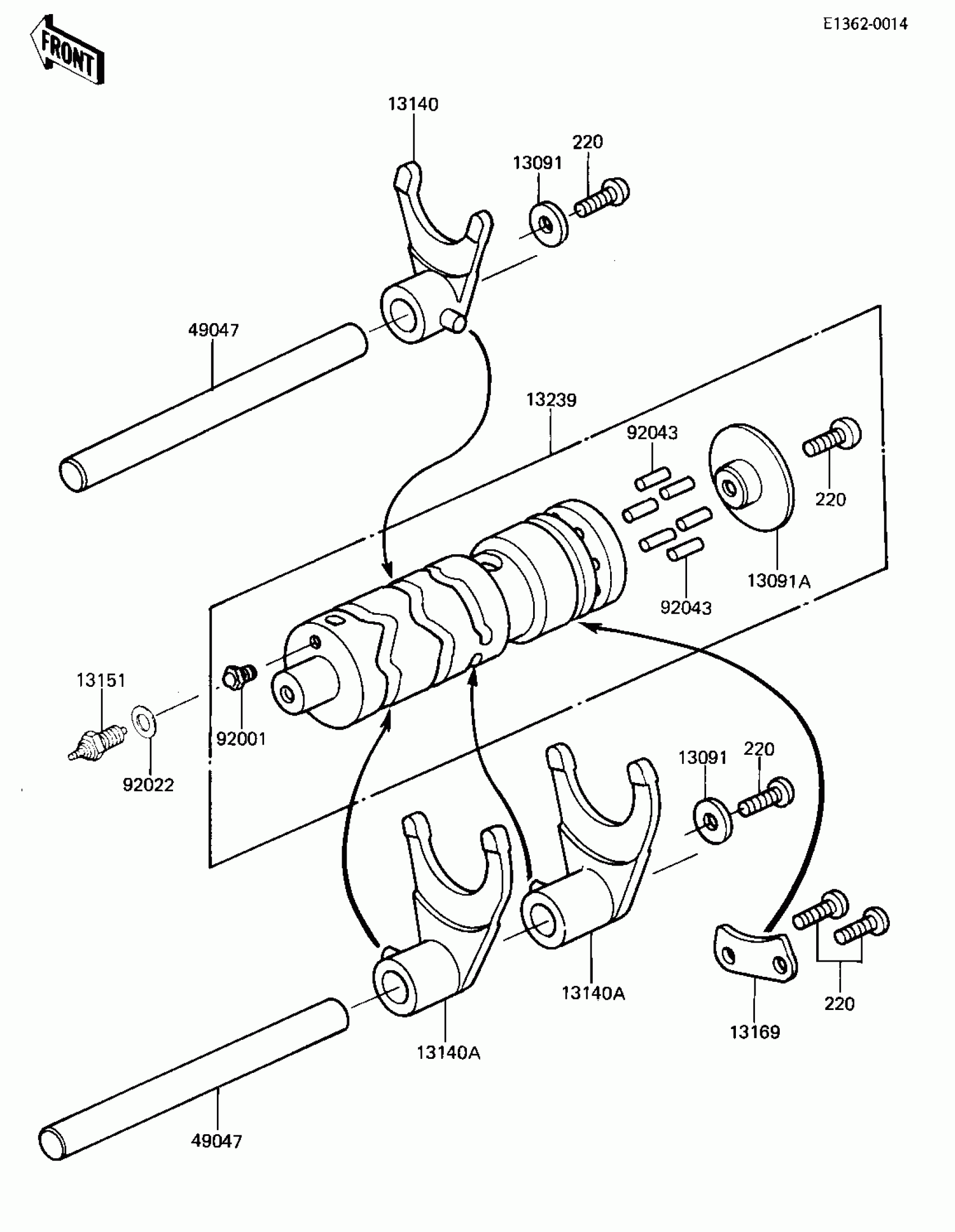

Kawasaki CSR GEAR CHANGE DRUM & FORKS Diagram

Description

Price

13091

HOLDER,CLUTCH SPRING

13091-011

$5.27

13091A

HOLDER,CHANGE DRUM

13091-1029

Unavailable

13140

FORK-SHIFT,DRIVE

13140-1114

Unavailable

13140A

FORK-SHIFT,OUTPUT

13140-1115

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1008

Unavailable

13169

PLATE,CHANGE DRUM

13169-012

$15.44

13239

DRUM-ASSY-CHANGE

13239-1042

Unavailable

49047

ROD-SHIFT,12X133

49047-1007

$18.39

92001

BOLT,NEUTRAL POINT

92001-1215

Unavailable

92022

GASKET,10.5X16X1

92065-058

$3.16

92043

PIN,DOWEL,4X15.8

92042-014

$0.49

220

SCREW-PAN-CROS,6X14

220B0614

$1.32
