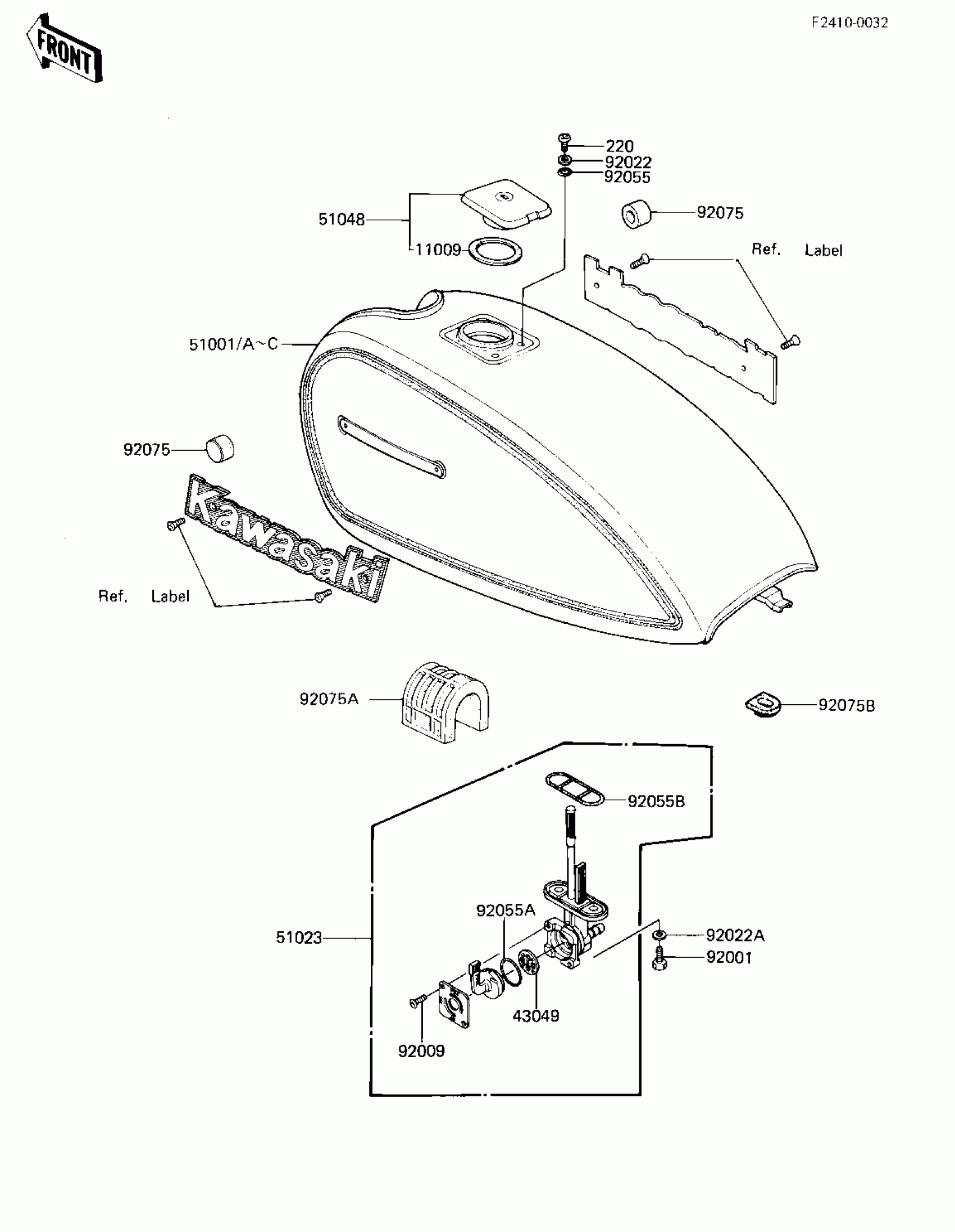

Kawasaki CSR FUEL TANK Diagram

#

Description
Price

11009

GASKET,FUEL TANK CAP

11009-1051

$8.69

43049

PACKING,FUEL TAP LEVER

43049-1017

$5.77

51001A

TANK-FUEL,L.M.RED

51001-1058-E2

$718.89

51023

TAP-ASSY,FUEL

51023-1038

$79.96

51048

CAP ASSY TANK

51048-1018

Unavailable

92001

BOLT,6X20

92001-1091

$3.12

92009

SCREW PAN HEAD 3X5

220B0305A

$0.63

92022

WASHER,5.3X10X0.8

92022-1038

$2.92

92022A

WASHER-PLAIN

92022-183

$3.12

92055

RING-O

92055-1023

$3.12

92055A

RING-O,FUEL TAP LEVER

92055-1111

$3.97

92055B

RING-O,FUEL TAP PACKING

92055-1112

$3.97

92075

DAMPER,FUEL TANK

92075-101

$4.93

92075A

DAMPER,FUEL TANK

92075-284

$18.56

92075B

DAMPER,FUEL TANK

92075-295

$7.60

220

SCREW PAN HEAD 5X10

220B0510

Unavailable
