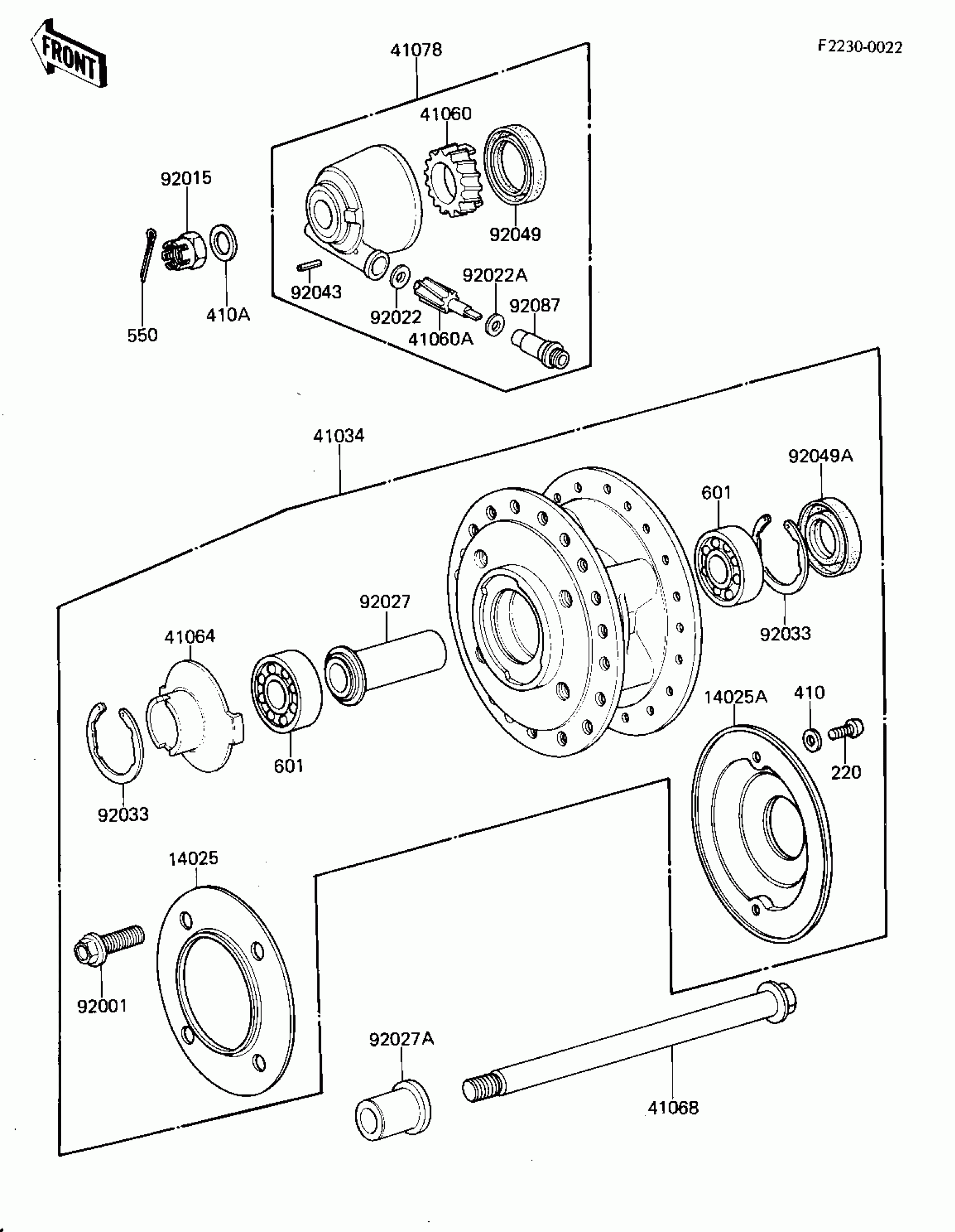

Kawasaki CSR FRONT HUB Diagram

#

Description
Price

14025

COVER,DUST,LH

14025-1277

Unavailable

14025A

COVER,DUST,RH

14025-1341

Unavailable

41034

DRUM-ASSY,FR

41034-1033

$550.91

41060

GEAR-METER SCREW,24T

41060-1025

$20.37

41060A

GEAR-METER SCREW,9T

41060-1035

Unavailable

41064

RECEIVER-SPEEDOMETER

41064-1006

$11.33

41068

AXLE,FR,L=230

41068-1099

Unavailable

41078

CASE-ASSY-METER GEAR

41078-1018

Unavailable

92001

BOLT,FLANGED,10X30

92001-1173

$8.42

92015

NUT,CASTLE,14MM

42045-020

$7.49

92022

WASHER,5.1X9X0.4

41063-001

$4.17

92022A

WASHER,5.1X9X0.4

41063-001

$4.17

92027

COLLAR,L=55

92027-1223

$14.71

92027A

COLLAR,L=30

92027-1225

$16.49

92033

RING-SNAP,42MM

92033-1041

$4.64

92043

PIN,SPRING

41082-001

$3.53

92049

SEAL-OIL,BJN30427-C3

92049-1057

$7.08

92049A

SEAL-OIL,BJN22425

92049-1058

$7.41

92087

BUSHING-METER GEAR

92087-1002

$22.34

220

SCREW-PAN-CROS

220B0514

Unavailable

410

WASHER PLAIN 5MM

410B0500

Unavailable

410A

WASHER-PLAIN-SMALL,14MM

410B1400

Unavailable

550

PIN-COTTER,3.2X25

550D3225

$1.86

601

BEARING BALL #6302Z

601B6302Z

$25.71
