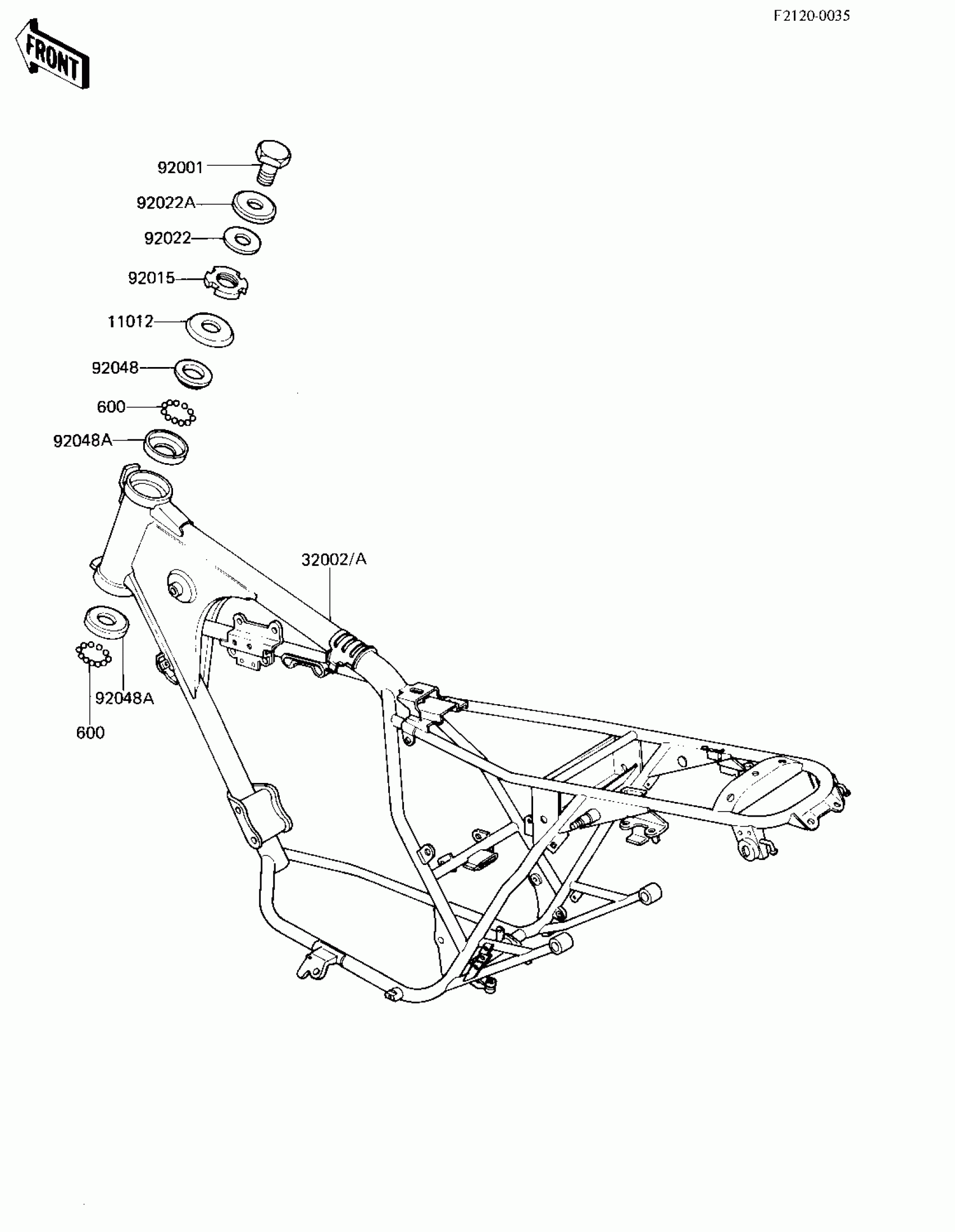

Kawasaki CSR FRAME Diagram

#

Description
Price

11012

CAP,STEERING STEM

46098-016

$5.66

32002A

FRAME-COMP

32002-1498

$935.94

92001

BOLT,16X25.5

92007-031

Unavailable

92015

NUT,30MM

92090-007

$8.91

92022

WASHER,WAVE

46100-003

Unavailable

92022A

WASHER,16X41X4

92022-230

$11.42

92048

RACE,STEERING STEM BEARING

92047-006

$12.39

92048A

RACE,STEERING STEM BEARING

92048-006

$8.83

600

BALL-STEEL,1/4

600A0800

$0.59
