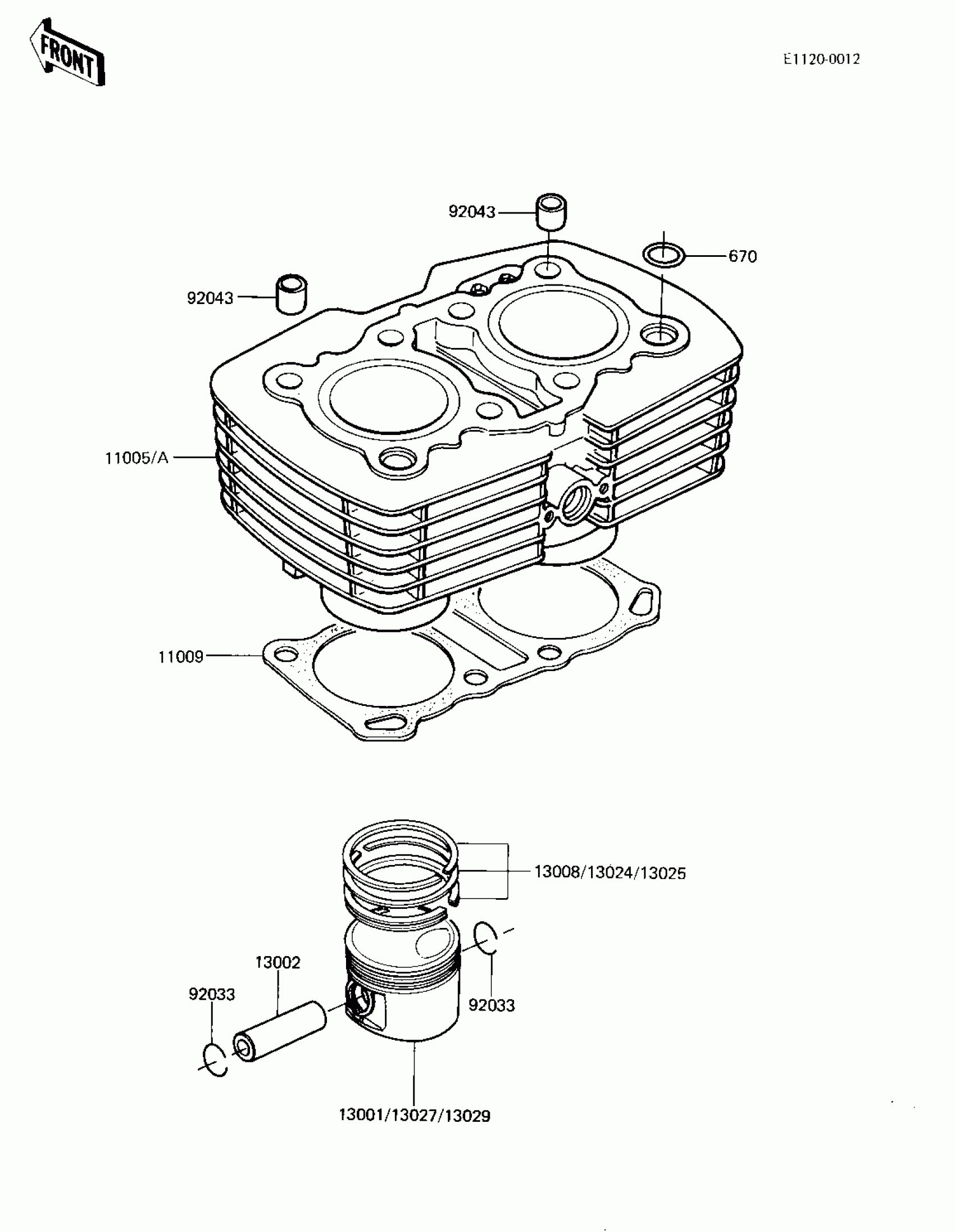

Kawasaki CSR CYLINDER/PISTONS Diagram

Description

Price

11005A

CYLINDER-ENGINE,SILVER

11005-1159

Unavailable

11009

GASKET,CYLINDER

11060-1058

$10.83

13001

PISTON-ENGINE,STD

13001-1051

Unavailable

13002

PIN-PISTON

13002-1051

$23.54

13008

RING-SET-PISTON,STD

13008-1008

Unavailable

13024

RING-SET-PISTON LL,O/S 1.00

13024-1007

Unavailable

13025

RING-SET-PISTON L,O/S 0.50

13025-1007

Unavailable

13027

PISTON-ENGINE LL,O/S 1.00

13027-1020

Unavailable

13029

PISTON-ENGINE L,O/S 0.50

13029-1019

Unavailable

92033

RING-SNAP,PISTON PIN

92033-1151

$2.97

92043

PIN,DOWEL,12X14

92042-031

$4.93

670

RING-O,9.8X2.4

92055-1150

$6.18
