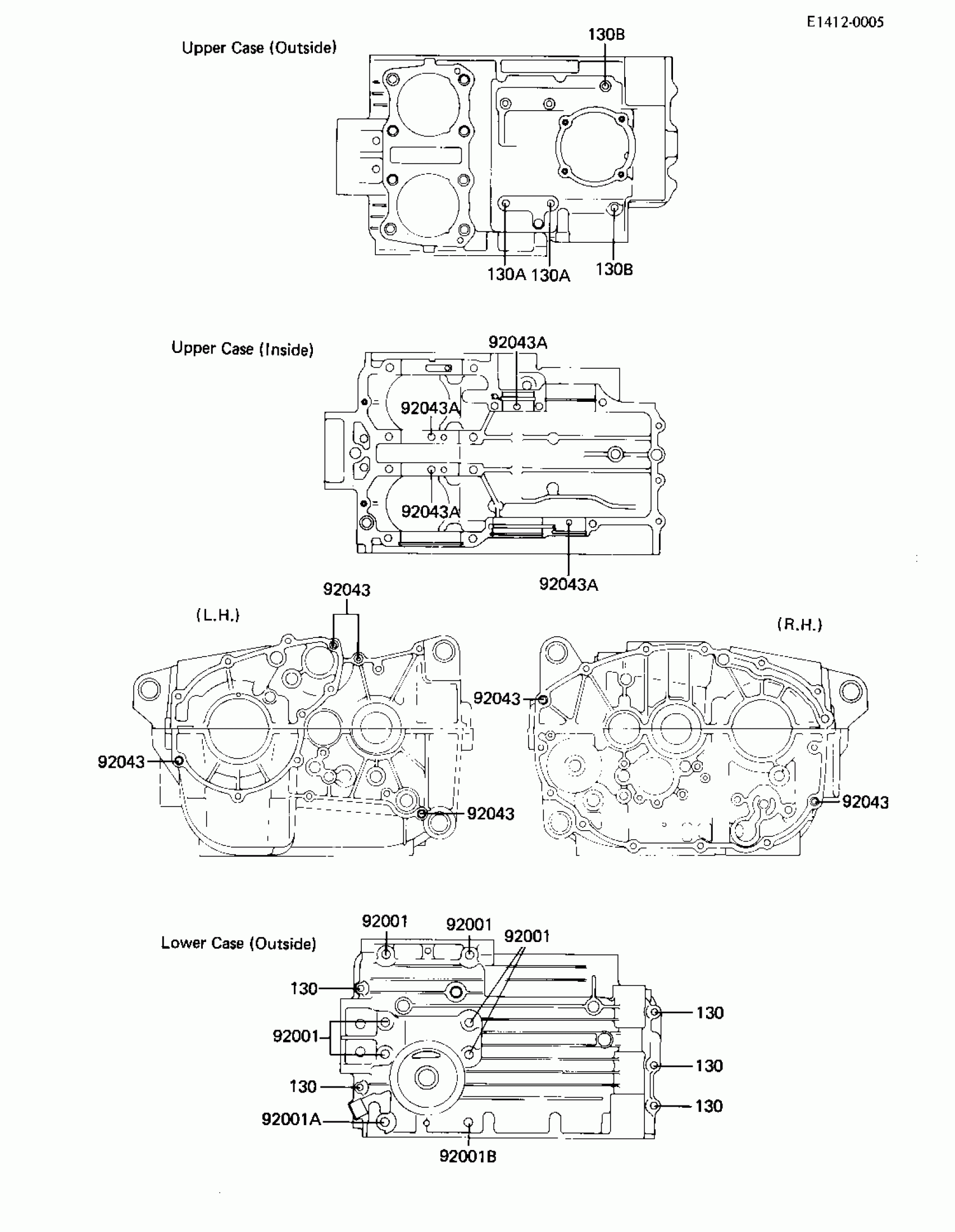

Kawasaki CSR CRANKCASE BOLT & STUD PATTERN Diagram

#

Description

Price

92001

BOLT,8X90

92001-1480

Unavailable

92001A

BOLT,8X115

92001-1481

$11.86

92001B

BOLT,8X140

92002-1059

Unavailable

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92043A

PIN,DOWEL,6X16

92042-016

$3.81

130

BOLT,FLANGED,6X35

130H0635

Unavailable

130A

BOLT-FLANGED,6X55

130G0655

Unavailable

130B

BOLT-FLANGED,6X90

130G0690

Unavailable
