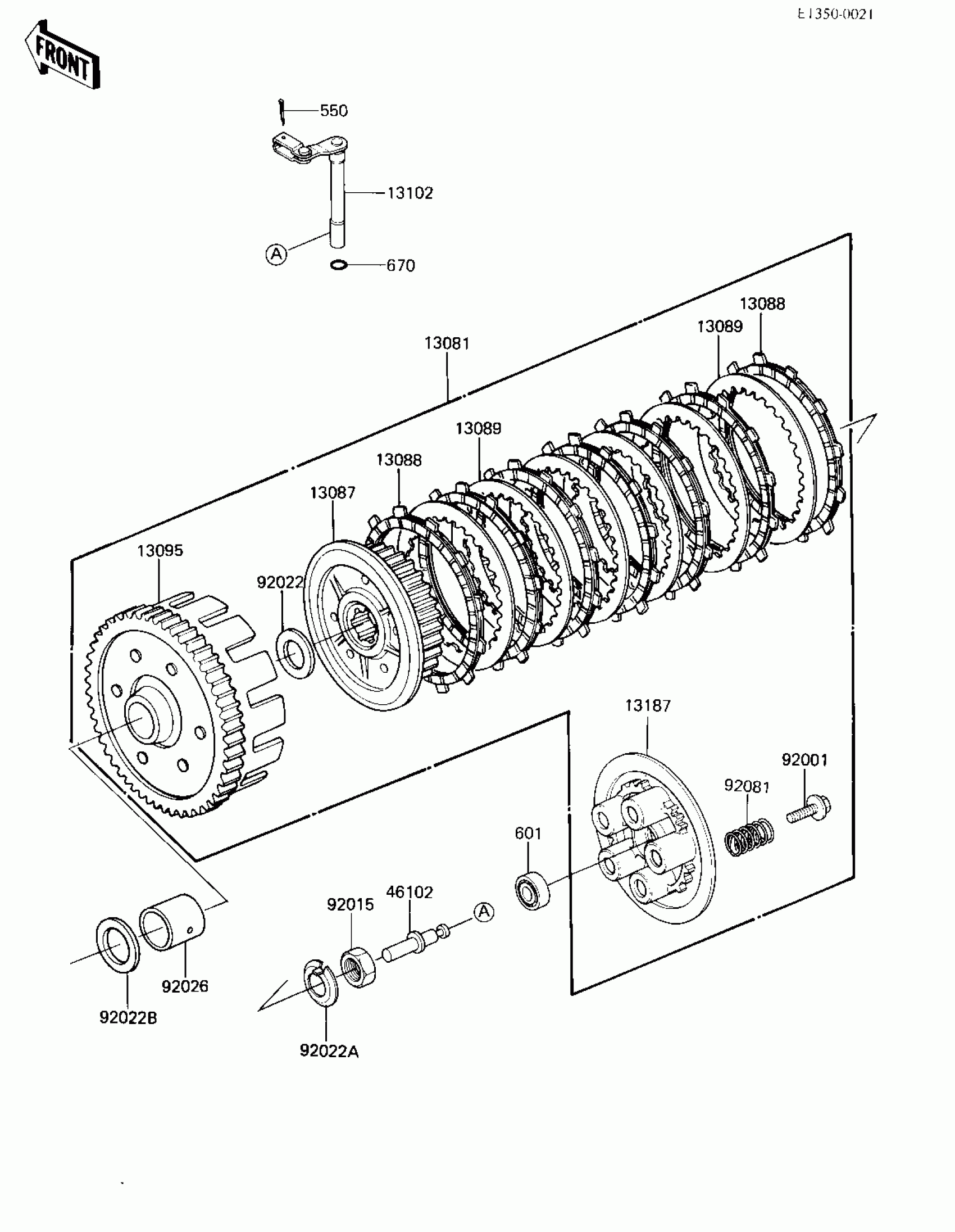

Kawasaki CSR CLUTCH (KZ305-A2) Diagram

Description

Price

13081

CLUTCH-ASSY

13081-1065

Unavailable

13087

HUB-CLUTCH

13087-1005

Unavailable

13088

PLATE-FRICTION

13088-1009

Unavailable

13089

PLATE-CLUTCH,T=2.0

13089-1005

$9.73

13095

HOUSING-COMP-CLUTCH

13095-1020

Unavailable

13102

RELEASE-COMP-CLUTCH

13102-1009

Unavailable

13187

PLATE-CLUTCH OPERATING

13187-1018

Unavailable

46102

ROD,CLUTCH

46102-1030

$26.47

92001

BOLT,FLANGED,6X18

92001-1066

$4.67

92015

NUT,20MM

92016-028

$7.54

92022

WASHER,25.5X38X2

92022-1075

Unavailable

92022A

WASHER,LOCK

92022-1142

$4.17

92022B

WASHER,25.5X38X1

92022-145

$7.22

92026

SPACER,CLUTCH

92026-1052

$14.34

92081

SPRING,CLUTCH

92081-1078

Unavailable

550

PIN-COTTER,1.6X15

550D1615

$1.80

601

BEARING-BALL,6001C3ML01

92045-1235

$12.33

670

O RING,9MM

670B1509

$2.72
